Your Audio VM-50AN 1:5 Distributor
4
4 Your Audio VM-50AN 1:5 Distributor

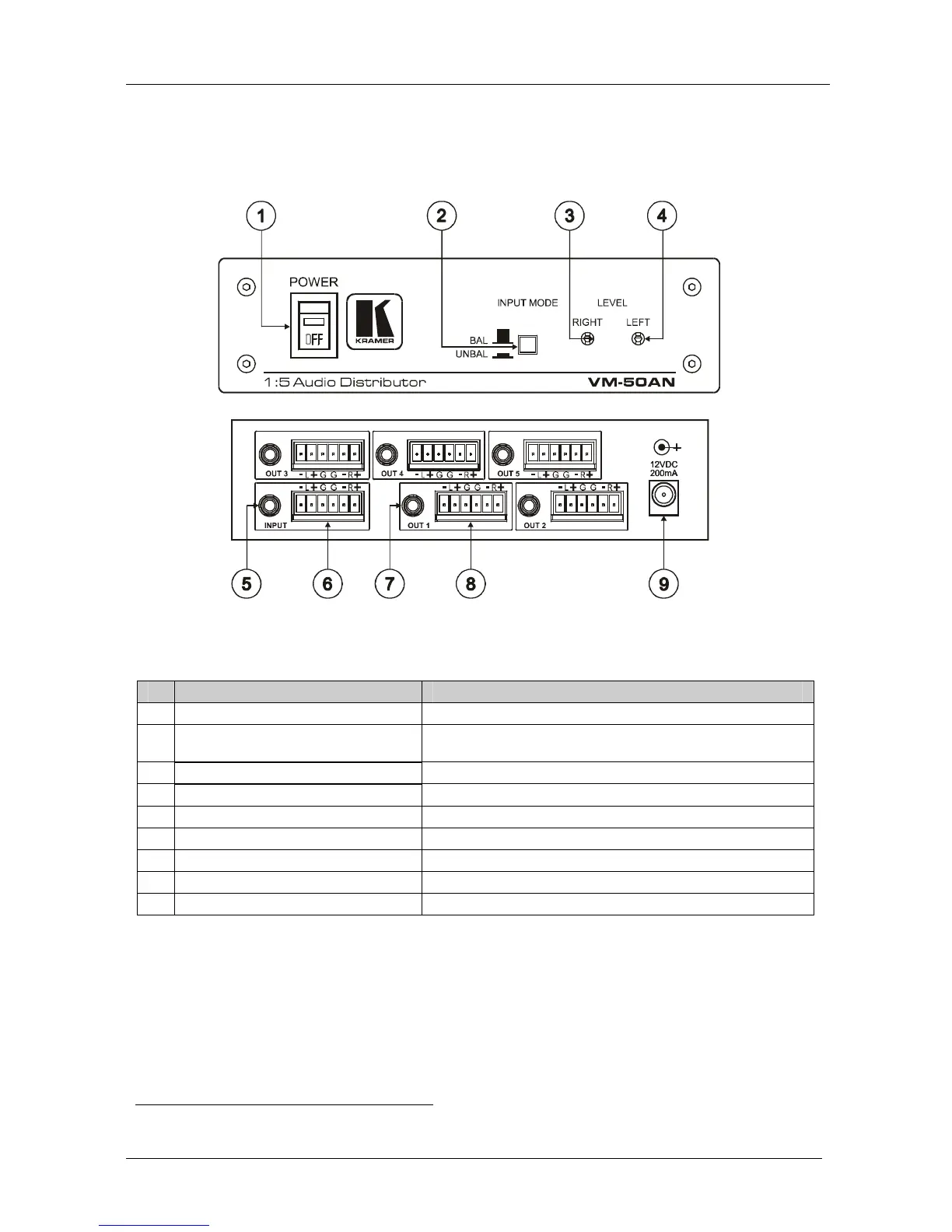

Figure 1 illustrates the front and rear panels of the VM-50AN. Table 1
defines the front and rear panels of the VM-50AN.
Figure 1: VM-50AN 1:5 Audio Distributor
Table 1: Front Panel VM-50AN 1:5 Audio Distributor Features
# Feature Function
1 POWER Switch Illuminated switch supplying power to the unit
2 INPUT MODE BAL/UNBAL Button When released, selects the balanced stereo audio input
when pushed in, selects the unbalanced stereo audio
3 RIGHT LEVEL Trimmer Adjusts
1
the right output signal level
4 LEFT LEVEL Trimmer Adjusts
1
the left output signal level
5 INPUT 3.5mm Mini Plug Connector Connects to the unbalanced audio source
6 INPUT Terminal Block Connector Connects to the balanced audio source
7 OUT 3.5mm Mini Plug Connector Connects to the unbalanced audio acceptor (from 1 to 5)
8 OUT Terminal Block Connector Connects to the balanced audio acceptor (from 1 to 5)
9 12 VDC 200mA +12V DC connector for powering the unit
5 Using Your VM-50AN 1:5 Audio Distributor
This section describes how to connect the VM-50AN as:
 A balanced stereo 1:5 audio distributor, see section 5.1
 An unbalanced stereo 1:5 audio distributor, see section 5.1
 A 1:10 audio distributor, see section 5.3
1 Insert a screwdriver into the small hole and carefully rotate it, trimming the appropriate OUTPUT level
