5.3 Connecting the VM-50AN as a 1:10 Audio Distributor
To connect the VM-50AN as a 1:10 audio distributor, as the example in
Figure 4 illustrates, do the following
1
:
1. Connect either (but not both simultaneously
2
) the:
Balanced stereo audio source to the INPUT terminal block connector
(and release the BAL/UNBAL INPUT MODE button to select
balanced stereo audio operation), or
Unbalanced stereo audio source to the INPUT mini 3.5mm socket (and
push in the BAL/UNBAL INPUT MODE button to select unbalanced
stereo audio operation)
2. Connect up to
3
10 acceptors, as follows:
5 balanced stereo audio acceptors to the OUT terminal block
connectors, and
5 unbalanced stereo audio acceptors to the OUT mini 3.5mm sockets
3. Connect the 12V DC power adapter to the power socket, connect the
adapter to the mains electricity, and then turn on the power switch.
4. Adjust
4
the right and/or left output signal level, if required.

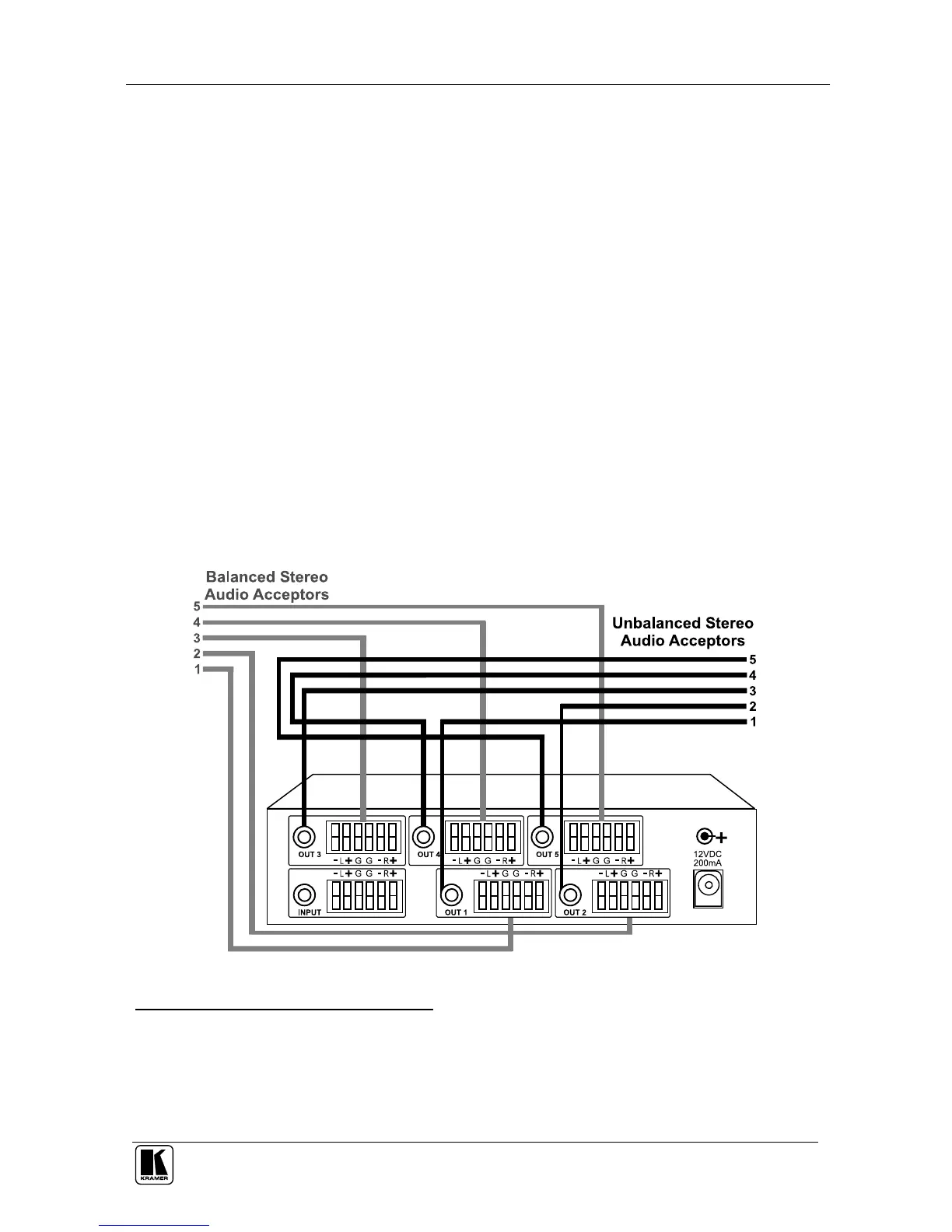

Figure 4: Connecting the VM-50AN as a 1:10 Audio Distributor
1 Switch OFF the power on each device before connecting it to your VM-50AN. After connecting your VM-50AN, switch on
its power and then switch on the power on each device
2 Both formats cannot be connected to the machine at the same time, as they share some of the input connections
3 Outputs may be connected or left unconnected
4 Insert a screwdriver into the hole and carefully rotate it, to trim the level
