6
l Insert a screwdriver into the small hole and carefully rotate it, trimming the OUTPUT level

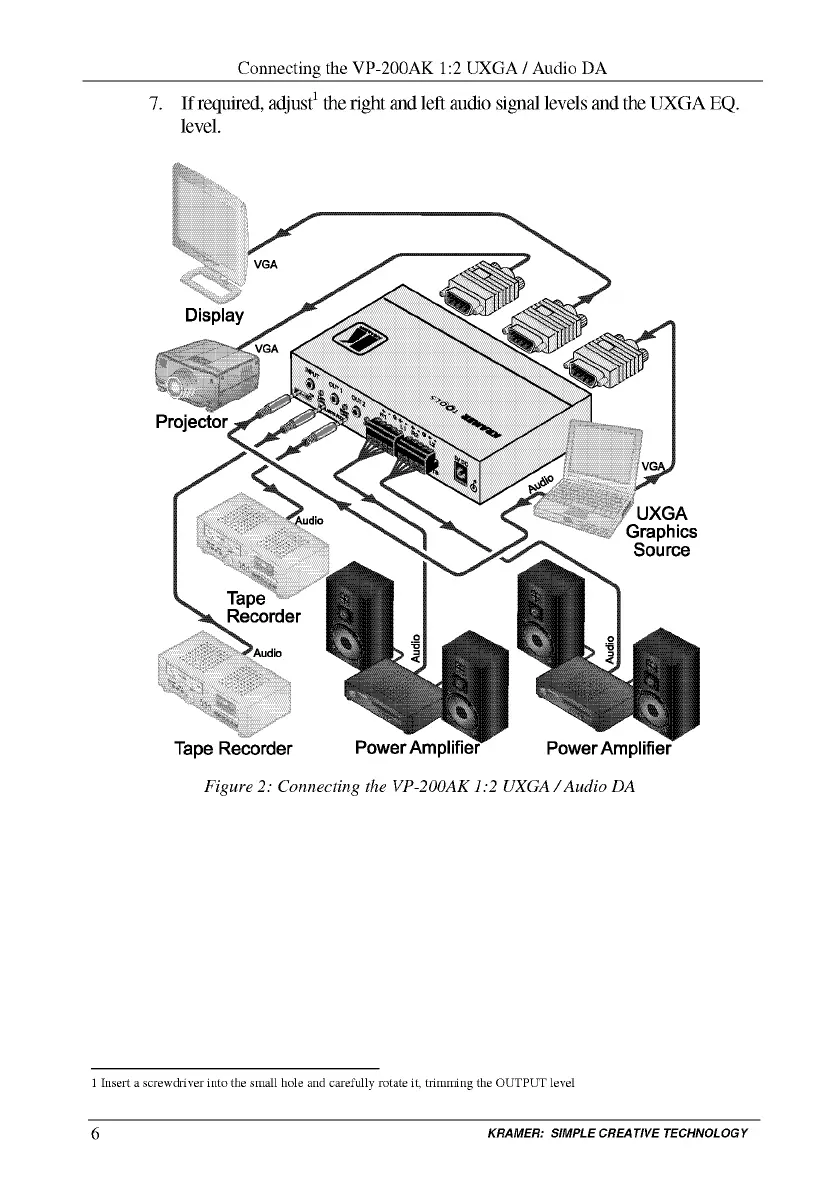

Figure 2: Connecting the VP-200AK 1:2 UXGA/ Audio DA
7. If required, adjust) the right and left audio signal levels and the UXGA EQ.
level.
Connecting the VP-200AK 1:2 UXGA / Audio DA
