How to assemble and furnish your high pressure cleaner
10 35

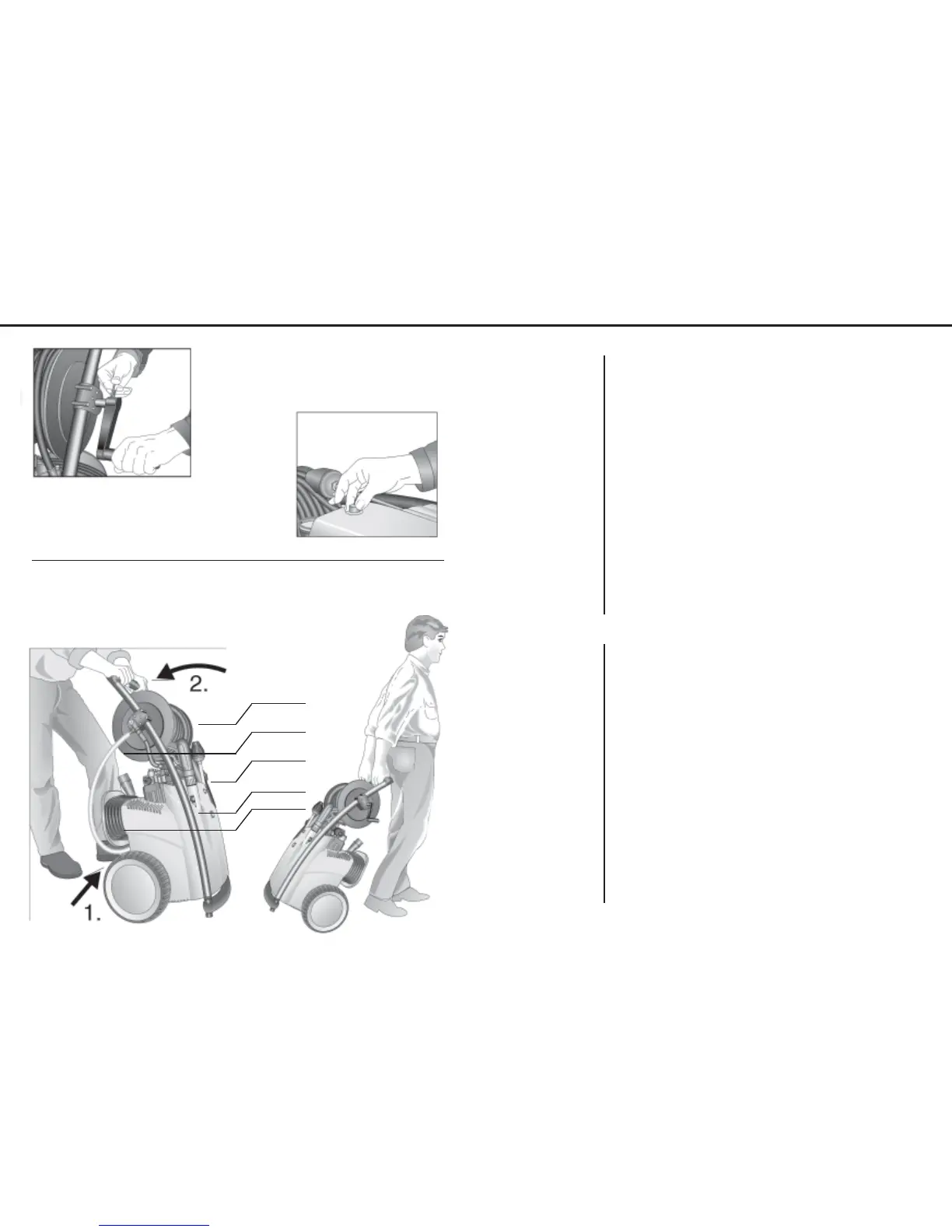

To put the high pressure cleaner into the mobile position,
press 1) your foot against the tilt support, and 2) pull the
machine towards you.
Now you can
move the
machine
Drum for
HPhose
Tubular holder
for gun
Suction pipe for
additives
Tubular holder for turbo-
Killer and lance
Cable
First set up the machine. Then take off the crank and fit it on the side. Fasten it with
the splint.
To check the oil level, unscrew the oil screw and
check the dip-stick.
K 3170 TST - K 3270 TST
Spare parts list KRÄNZLE 2170 TST - 3270 TST
Hose drum
No Description Qty. Ord.-No
1 Seitenschale Schlauchführung 1 40.302
2 Seitenschale Wasserführung 1 40.301
3 Trommel Unterteil 1 40.304
4 Trommel Oberteil 1 40.303
5 Innensechskantschraube M 4 x 25 4 40.313
6 Lagerklotz mit Bremse 1 40.306
7 Lagerklotz links 1 40.305
8 Klemmstück 2 40.307
9 Kunststoffschraube 5,0 x 20 12 43.018
10 Antriebswelle 1 40.310
11 Welle Wasserführung 1 40.311
12 Elastic-Stop-Mutter M 4 4 40.111
13 Handkurbel 1 40.309
14 Verriegelungsbolzen 1 40.312
15 Scheibe MS 16 x 24 x 2 1 40.181
16 Wellensicherungsring 22 mm 2 40.117
17 Wellensicherungsring 16 mm 1 40.182
No Description Qty. Ord.-No
20 Parbaks 16 mm 2 13.159
21 Sicherungsscheibe 6 DIN6799 1 40.315
23 Drehgelenk 1 40.167
24 Eingangsinjektor 1 40.317
25 Distanzring 1 40.316
27 O-Ring 6,68 x 1,78 1 40.585
28 O-Ring 10 x 2 1 43.068
45 Hochdruckschlauch 20 m NW 8 1 41.083
42 O-Ring 9,3 x 2,4 (Viton) 2 13.273 1
No. 31-34 only for K3200 - 3270 TST
31 Edelstahlfeder 1 13.239
32 Edelstahlkugel 5,5 1 13.238
33 Saugzapfen Schlauchanschluß 1 13.236
34 Chemikaliensaugschlauch mit Filter 1 15.038
No. 31.1 + 33.1 only for K3170 TST
31.1 O-Ring 6 x 1,5 1 13.386
33.1 Stopfen M 10 x 1 1 13.385
