Kranzle 2170TST User Manual

PrPr
PrPr
Pr
eparation for useeparation for use
eparation for useeparation for use
eparation for use
14 31

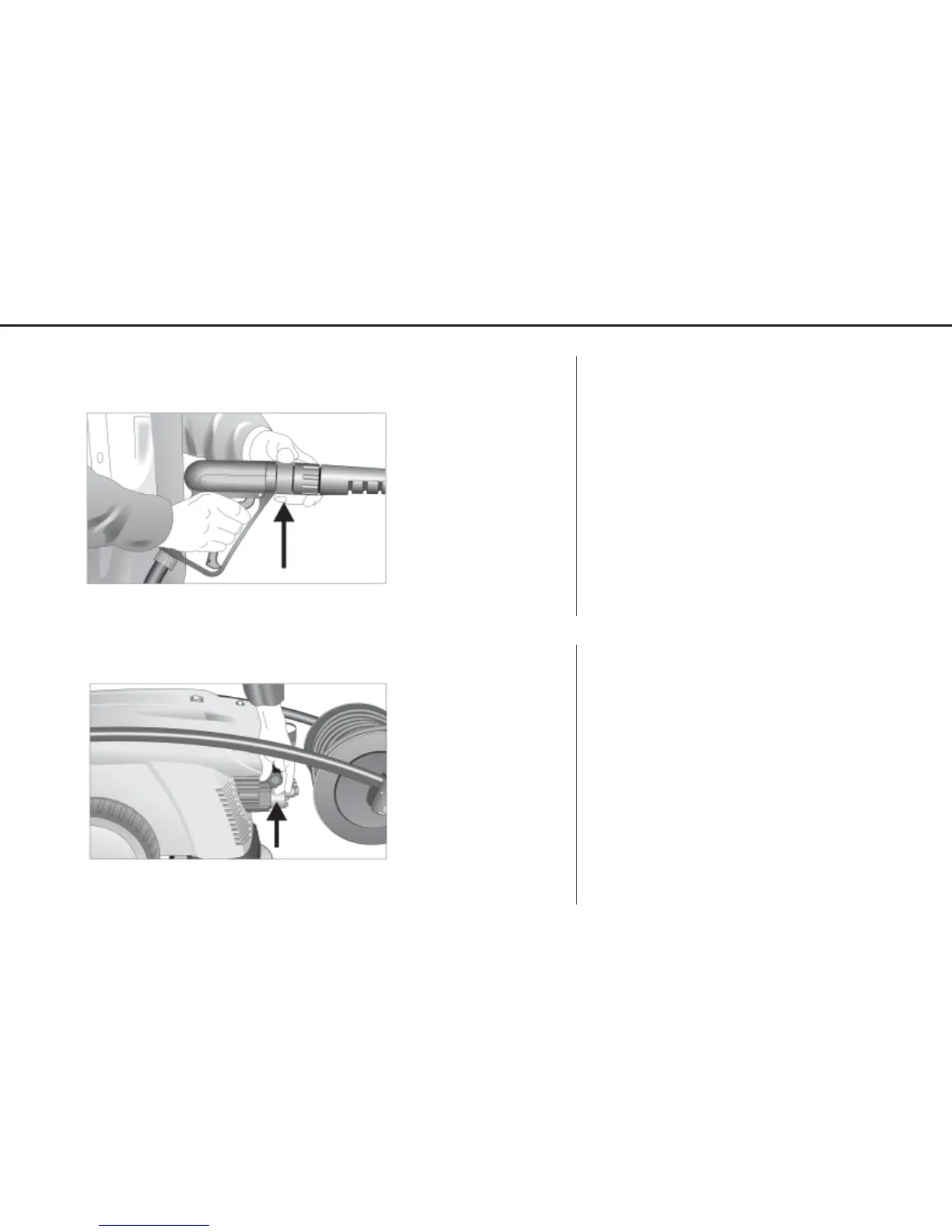

Adjusting the pressure at the gun
Simply turn the adjustment ring.
The machine is set to operate at maximum pressure.
Adjusting the pressure at the handwheel
Turn the handwheel at the side.
The machine is set to operate at maximum pressure.
K 3170 TST - K 3270 TSTK 3170 TST - K 3270 TST
K 3170 TST - K 3270 TSTK 3170 TST - K 3270 TST
K 3170 TST - K 3270 TST
Spare parts list KRÄNZLE 3170 TST - 3270 TST
Valve housing for integrated AQ-pump
No Description Qty. Ord.-No
1 Ventilgehäuse AQ mit integr. UL und 1 40.503
Druckschalter
2 O-Ring 18 x 2 6 40.016
3 Einlaß- / Auslaß- Ventil 6 42.024
4 O-Ring 21 x 2 6 42.025
5 Ventilstopfen 5 42.026
5.1 Ventilstopfen mit R 1/4" IG 1 42.026 2
6 Sicherungsring 4 40.032
7 Innensechskantschraube M 12 x 45 4 40.504
8 Sauganschluß R 1/2" AG 1 41.016 1
9 Wassereingangsfilter 1 41.046 2
13 Gewebemanschette 3 40.023
14 Backring 20 mm 6 40.025
15 O-Ring 31,42 x 2,62 3 40.508
16 Leckagering 20 x 36 x 13,3 3 40.509
17 Cu-Dichtring 21 x 28 x 1,5 1 42.039
18 Gummimanschette 3 40.512
19 Verschlußschraube R 1/2" 1 42.032
20 Distanzring mit Abstützung 3 40.507
23 Druckring 20 mm 3 40.021
24 Zwischenring 20 mm 3 40.516
25 Rückschlagkörper 1 14.122
26 O-Ring 6 x 3 1 14.121
No Description Qty. Ord.-No
28 Verschraubung Ermeto R 1/4" x 8L 1 41.042
29 Dichtring 17 x 22 x 1,5 (Kupfer) 1 40.019
30 Stopfen 3/8" 1 40.018
31 Dichtstopfen M 10 x 1 1 43.043
32 Dichtstopfen M 8 x 1 2 13.158
33 Ausgangsteil 1 42.161
34 Rückschlagfeder 1 14.120
37 O-Ring 18 x 2 1 43.446
48 O-Ring 1 13.272
49 Schlauchtülle 1 44.126 1
50 Überwurfmutter 1 44.122
51 Schlauchschelle 1 44.054 1
Repair kits:
Repair kit for sleeves 40.065 1
consisting of: 3x No. 13; 6x No. 14;
3x No. 15; 3x No 16; 3x No. 18;
3x No 20; 3x No. 23
Repair kit for sleeves without 40.517
brass parts consisting of:
3x No. 13; 6x No. 14; 3x No. 15;
3x No. 18; 3x No. 23
Repair kit valves 40.062 1
consisting of:
6x No. 2; 6x No. 3; 6x No. 4
