Wiring diagram

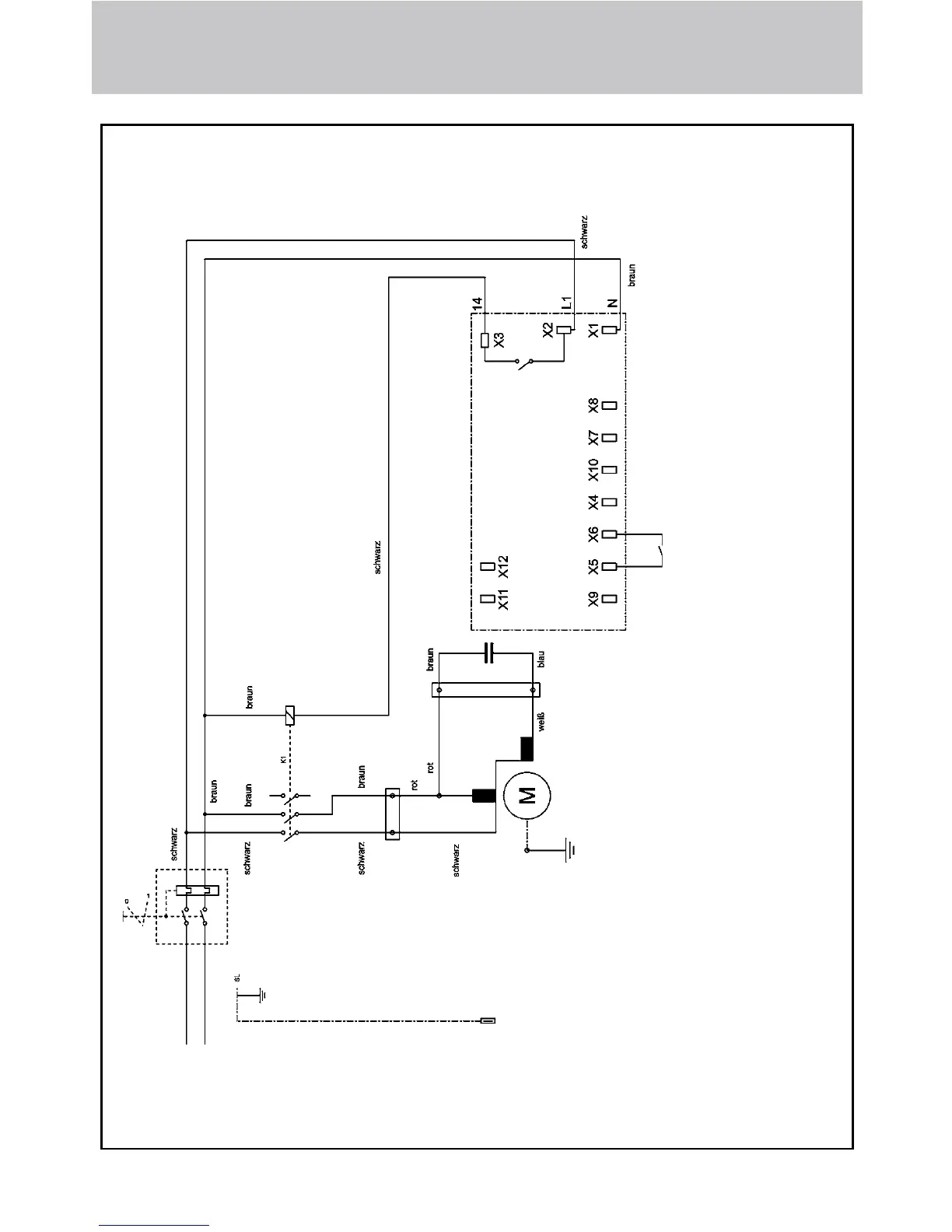

Wiring diagram for KRÄNZLE quadro 599 TST
230 Volt / 50 Hz
On-Off switch with 14,5 Ampere overload protection
Inlet line via
3x 1,5mm²
230 V / 50 Hz
Pump motor
230 V / 50 Hz
Pressure switch
Control plate with
transformer 230 V / 50
Hz
Contactor
