Kraus Bolden KSF-1610 Installation Manual

11

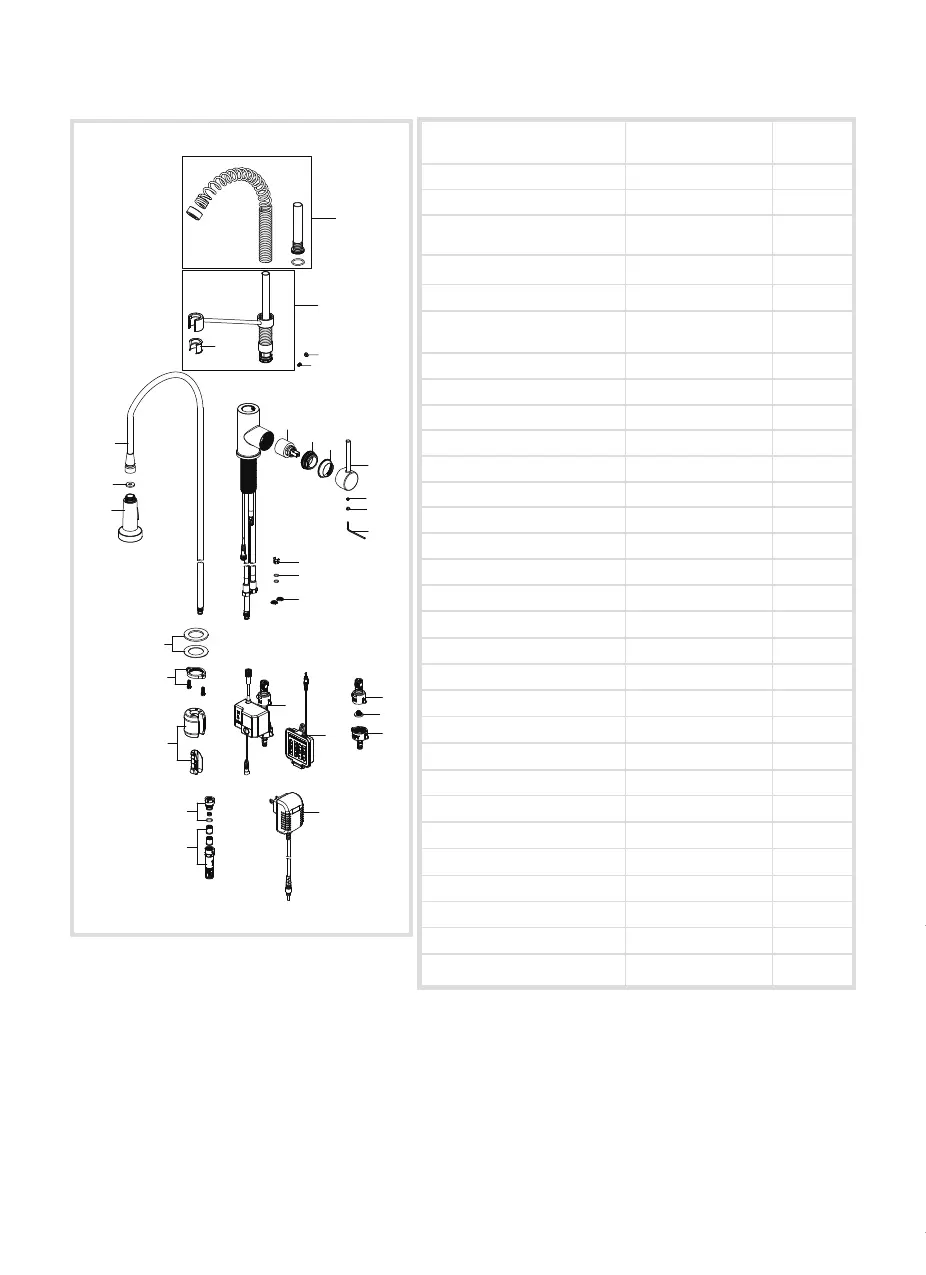

Replacement Parts
1. Sprayer Head
Replacement Parts List Part #
2. Washer
3. Sprayer Hose
5. Sprayer Support Assembly
5.1. Inverter
6. Screw
8. Cartridge
9. Bonnet Nut
10. Cap
Finish / Color
KP27218
KP27245
KP27084
KP27124
KP27083
KP27082
KP27216
KP27208
KP27217
7. Index
4. Spring Assembly
KP27322
11. Handle
KP27081
KP27072
SFS, MB, SFACB, BB**
12. Screw KP27001
SFS, MB, SFACB, BB**
13. Index
14. Hex Wrench
KP27002
KP27020
SFS, MB, SFACB, BB*
WHITE
2
1
14
15
16
17
21
22
19
18
20
6
7
11
12
13
25
26
27
24
23
8
9
10
3
4
5
5.1
SFACB, SFS, BB**
SFS, MB, SFACB, BB
BLMB, GRSFS, BLBB
BLSFACB, BLSFS*
BL, GR**
15. Block KP27073
16. O-Ring
17. Filter Washer
KP27092
KP27248
18. Washers
19. Nut & Screw
KP27028
KP27079
20. Weight & Clip Assembly KP27236
21. 1.8GPM Flow Restrictor
KP27074-WH
22. Quick Connector Assembly KP27090
23. Control Box KP27186
24. Battery Housing
25. Inlet Connector
KP27188
KP27190
26. Filter Washer
27. Outlet Connector
KP27189
KP27191
BL, GR**
28 (optional)
28. AC Adapter (optional) KP27187
4. Spring Assembly
KP27220
MB**
*Denotes spray hose assembly color options:
Spray hose assembly color options:
Black hose w/ Matte Black connector (BLMB);
Black hose with Brushed Brass connector
(BLBB); Gray hose with Spot-Free Stainless
connector (GRSFS); Black hose with Spot-Free
Stainless connector (BLSFS); Black hose with
Spot-Free Antique Champagne Bronze
connector (BLSFACB);
SFSMB, BBMB**
**Denotes faucet component color options:
BB - Brushed Brass
SFS - Spot Free Stainless Steel
MB - Matte Black
SFSMB - Spot Free Stainless Steel/Matte Black
SFACB - Spot Free Antique Champagne Bronze
BBMB - Brushed Brass/Matte Black
GR - Grey
BL - Black
