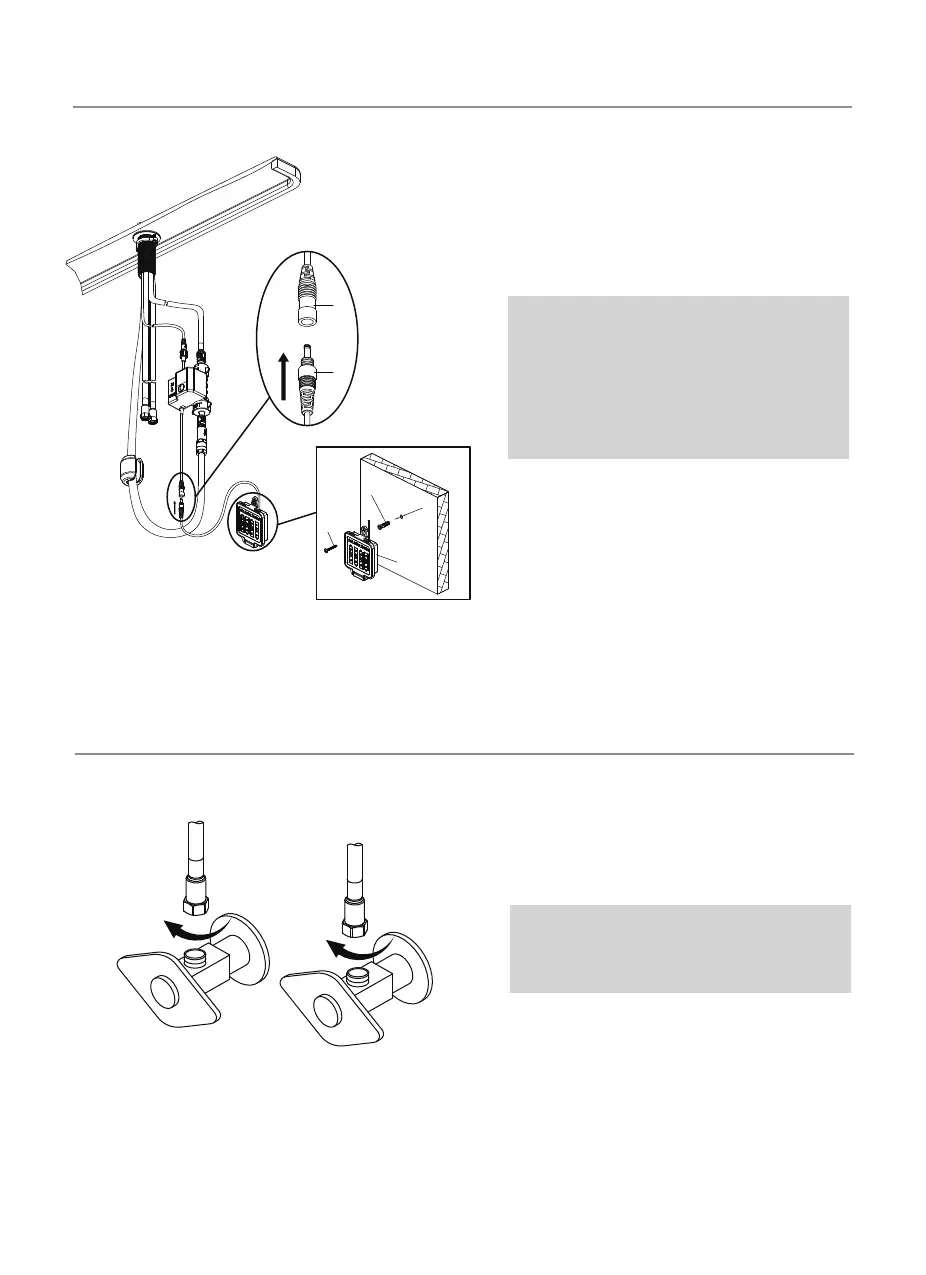

Step 7: Installing the battery pack
Step 8: Connect waterlines to main valve
Drill a hole in the wall using a 6mm
(1/4 in.) diameter drill bit. Install the
battery pack (J1) using the molly
anchor (J3) and screw (J2) provided.
Insert the battery pack cable (1) into
the control box connection (2).
NOTE: After installing the battery
pack, the light on the sensor will flash
and the faucet will sound when you
move your hand in the sensor area. If
not, check to ensure the batteries are
installed correctly.
NOTE: Please make sure filter washers
are installed before connecting to the
main valve.
Attach waterlines to angle stops
and tighten until snug. Turn on angle
stops and check for leaks (DO NOT
TURN FAUCET ON).
To Next Page
