2. Position Template
• Check the cut-out template against the actual sink to ensure a proper
sized cut-out

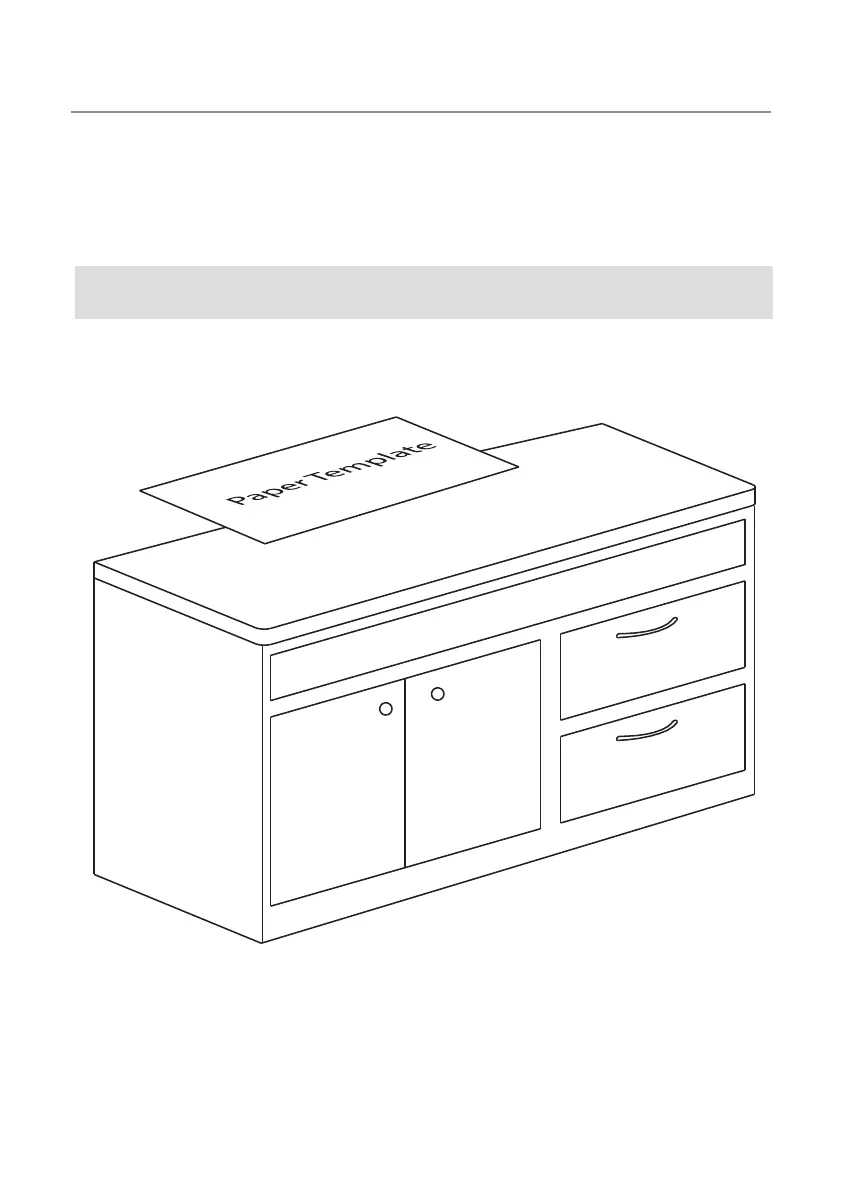

• Place the cut-out template in the desired location on the countertop
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1
Step2
Step3
Step4
Step6
Step5
Step7
Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8
1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
NOTE: Make sure clearance is suitable for backsplash, faucet, and plumbing for the sink
