4

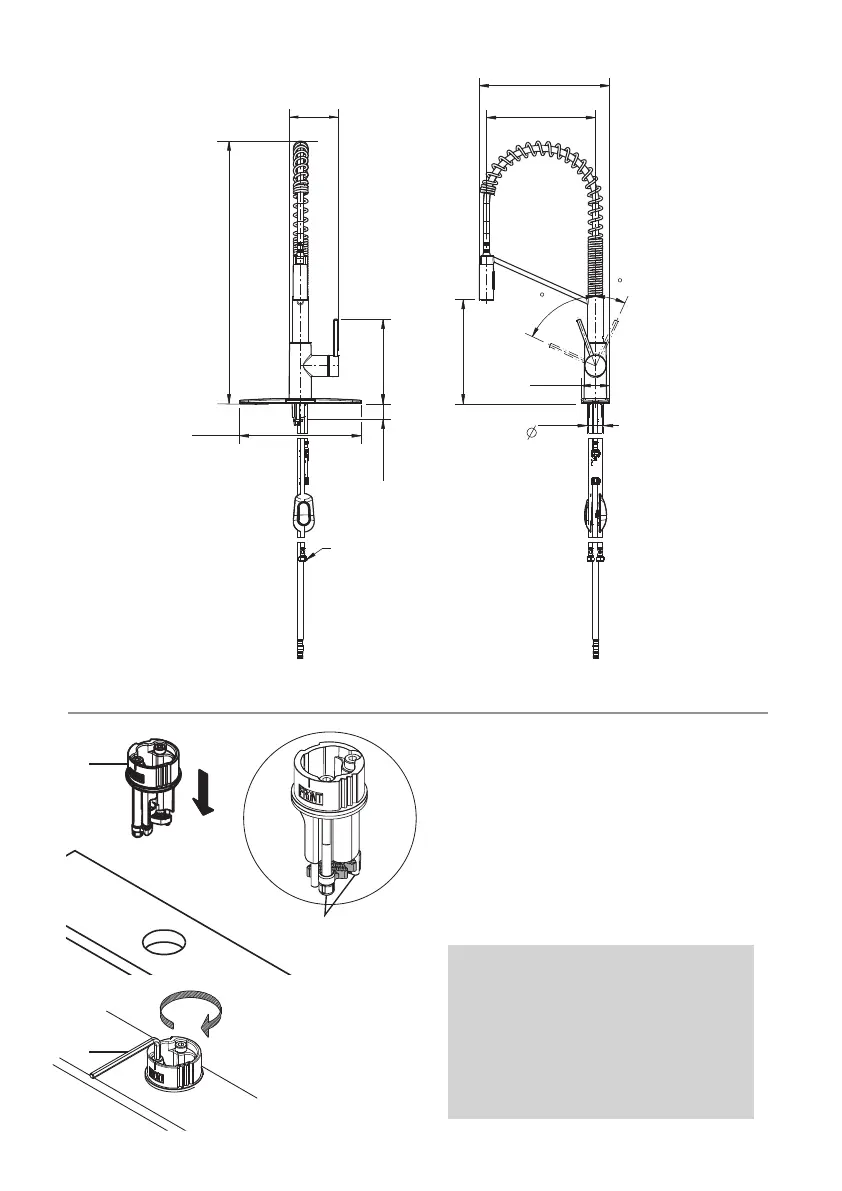

Faucet Dimensions
9 1/4"
233mm
1 3/8"
35mm
2 1/2"
62mm
2
5
6
5
7 1/8"
181mm
1"
25mm
10 1/4"
260.5mm
8 3/4"
223mm
279mm
4 1/4"
106.5mm
11"
22 1/8”
562mm
9/16-24UNEF-2B
Step 1A: Install base without deck & putty plate
Insert base (J) into sink or
countertop with “FRNT facing
forward. Tighten screws on base
(J) with 4mm hex wrench (i2)
until base is secure on sink or
countertop
Installer Tip: Rotate the
two half-moon shaped
locking nuts inward before
inserting base (J) into sink or
countertop
Half Moon Locking Nuts
J
i2
