Krell Industries Showcase 5 - Showcase

6
4
5
7 8
9
OUTPUT 1
OUTPUT 2
OUTPUT 3 OUTPUT 4 OUTPUT 5 OUTPUT 6 OUTPUT 7
INPUT 1 INPUT 2 INPUT 3 INPUT 4
INPUT 5 INPUT 6 INPUT 7
Showcase
Multi-channel
Amplifier
KRELL INDUSTRIES, INC.
45 CONNAIR ROAD
ORANGE, CT 06477-3650
USA
50/60 Hz
MADE IN USA
30mA
max.
OUT
IN
12VDC
NO USER SERVICEABLE PARTS INSIDE

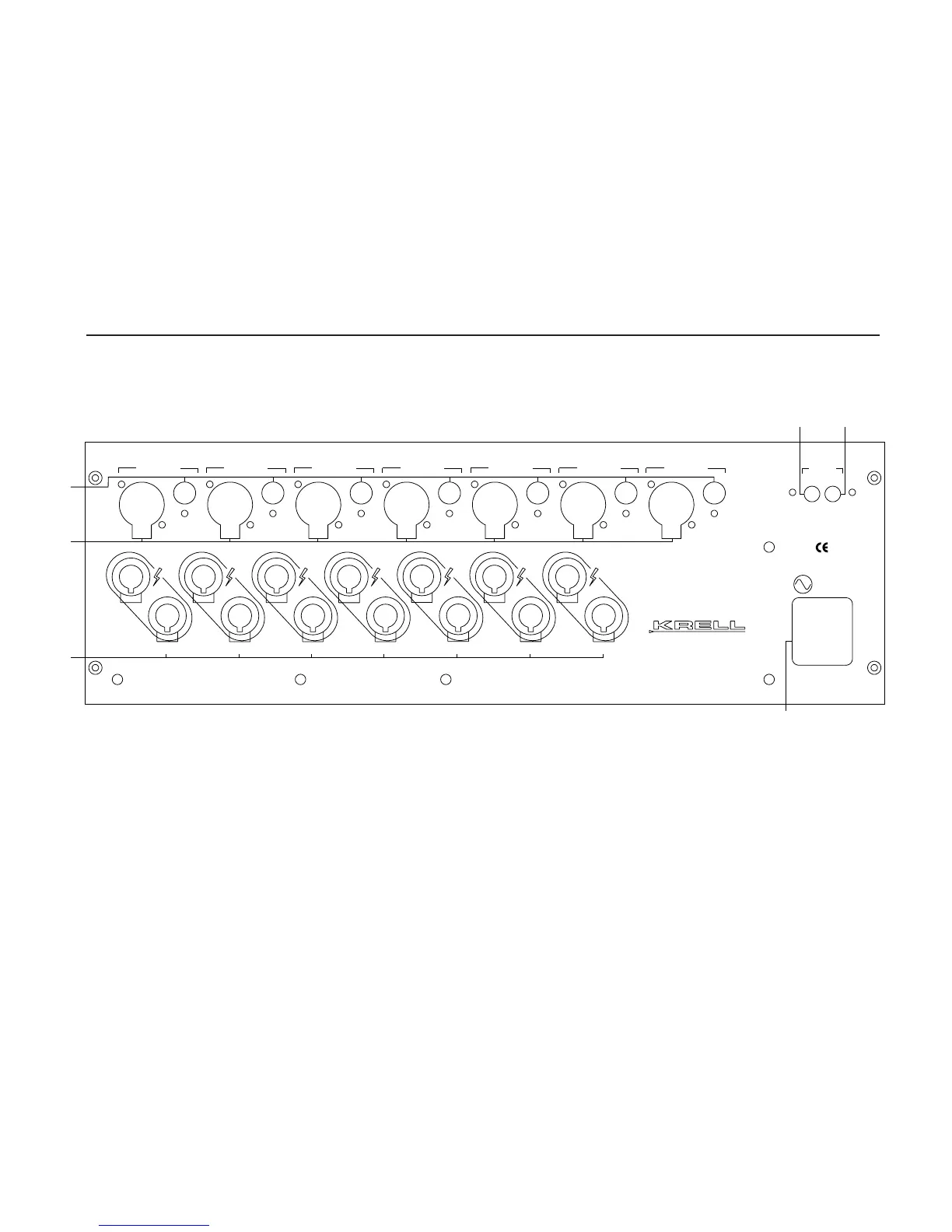

Figure 2 The Showcase Amplifier Back Panel
Balanced Inputs
4 Inputs 1-7
Single-Ended Inputs
5 Inputs 1-7
Amplifier Channel
Outputs
6 Outputs 1-7
Remote Connections
7 12 VDC Remote Power Out
8 12 VDC Remote Power In
Power
9 IEC Connector and
Fuseholder
