Captions :
1 Fluid module 7 Electrovalves
2 Control bay 8 Air flow switch
3 Display unit 9 Color changer
4 Volumeters 10 Protective housing
5 Automatic valve 11 Three-way valve
6Mixer 12Non-returnvalve

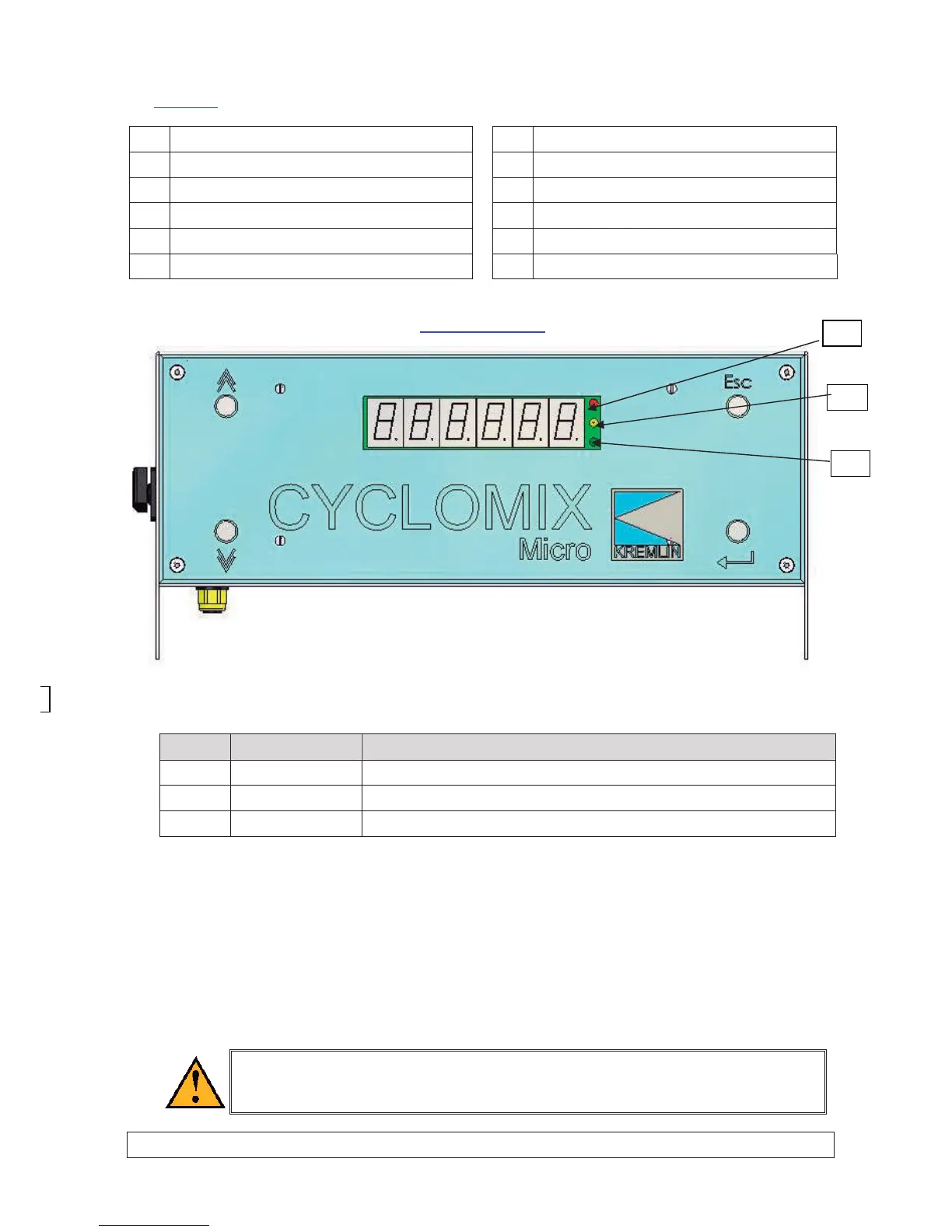

BAY FRONT PA RT
Ind. Description Function
13 Red LED Fault
14 Orange LED Operating (except production)
15 Green LED Production
The machine is totally programmable via a man/machine interface. The screen indicates continuously by a
simple identification, the statuses of the machine and enables to have access to the essential
functionalities: ON / OFF - FLUSHING -PRODUCTION
The informations relating to the operating of the machine (real-time display of the ratio, of the
consumption…) can be read on the LCD screen.
The CYCLOMIX
TM
MICRO saves continuously the instantaneous consumptions of base, catalyst and
solvent as well as the total consumptions and the emissions of Volatile Organic Compounds (VOC) during
the operating of the machine.
On the machine bay, there is a cord grip. It enables to supply electricity to the machine via a safety
isolating switch (115V / 230V).
Do not use electrostatic spraying for w ater-based paints or paints with a
resistivity lo wer than 5 M:
