Kreyer – Picture guide to installation and start-up Chilly (page 8 of 18) v.11-2015

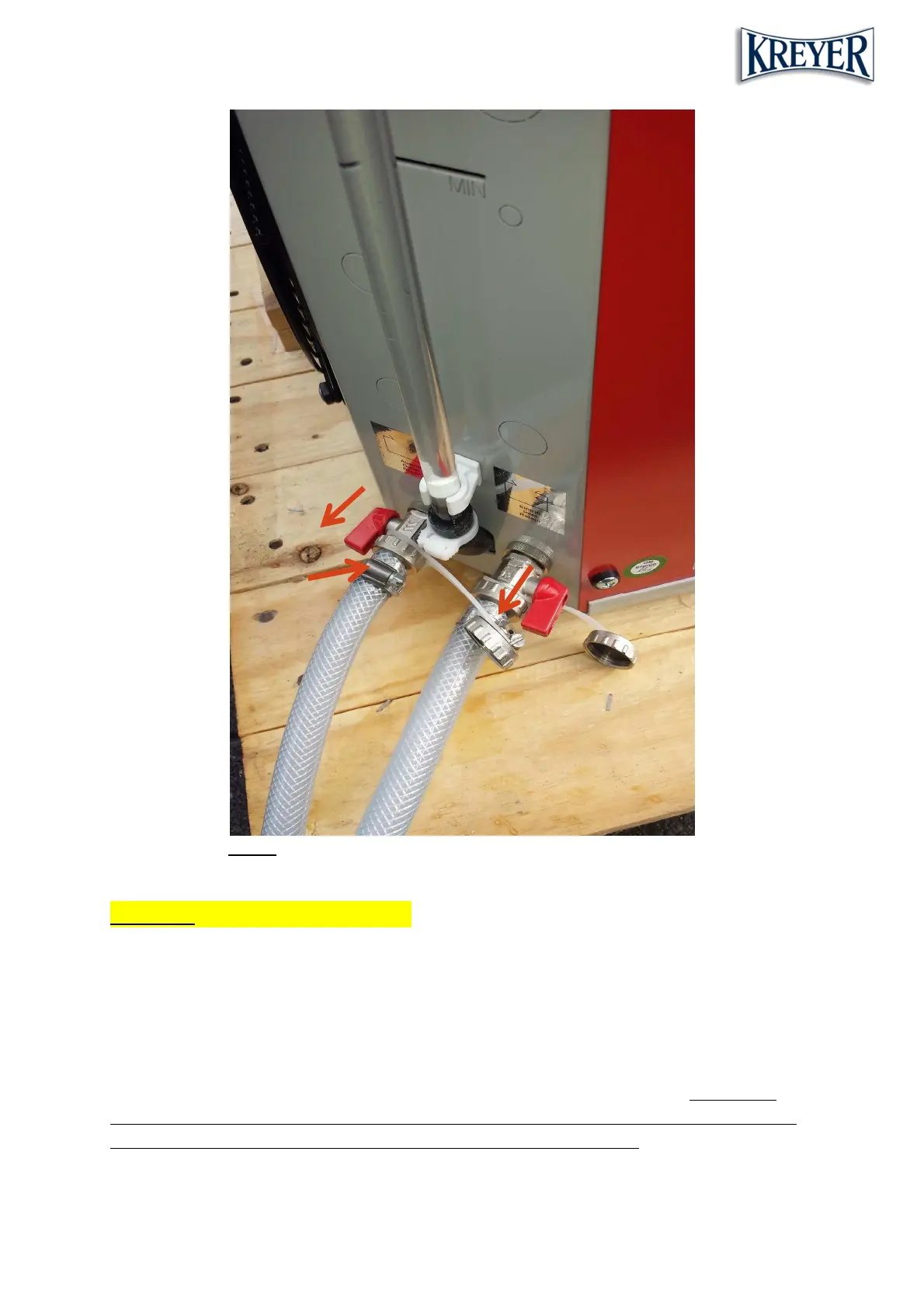

Pic. 10: Reconnect the tube/hose to the chillers outlet. Then open both valves
(The valves are open when they are parallel to the tube, see arrows).
Optional: Overflow protection kit
The unit CHILLY is working as an open water system. Water users (e.g. tanks) should be installed on
the same level as the chiller or below to avoid an overflow of the chillers buffer tank when the
unit/pump is off.
If this isn’t possible you should install an overflow protection kit (consisting of a solenoid valve, a
solenoid connection cable and a non-return valve – available from WTG / KREYER). For the right
voltage of the solenoid valve respect absolutely the available control voltage of the chiller –> check
inside the electrical diagram appearing at the end of the instruction manual.
