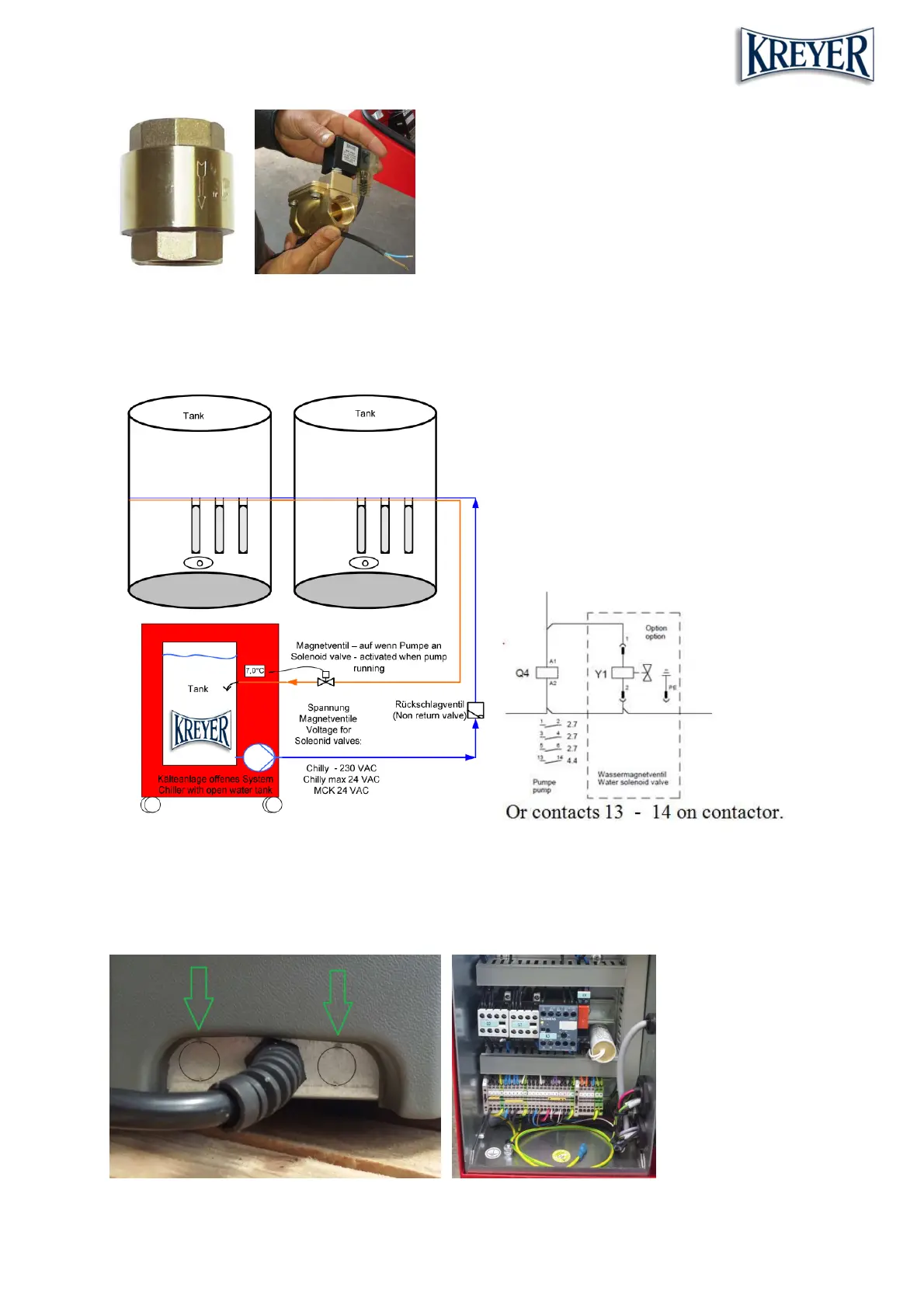

Install the non-return valve in the outlet pipe/flow line (for the right fitting position respect the flow
direction indicated by an arrow on the non-return valve) and the solenoid valve in the inlet
pipe/return line of your chiller (see picture in the example below
Insert the solenoid connection cable in one of the free cable inlets at the side of the chiller (see green
arrows -> remove one of the pre-cut openings + install a screwed cable gland) and lead it through to
the control cabinet:
