Updated June 2016 Page 6 © Krick Modelltechnik Knittlingen

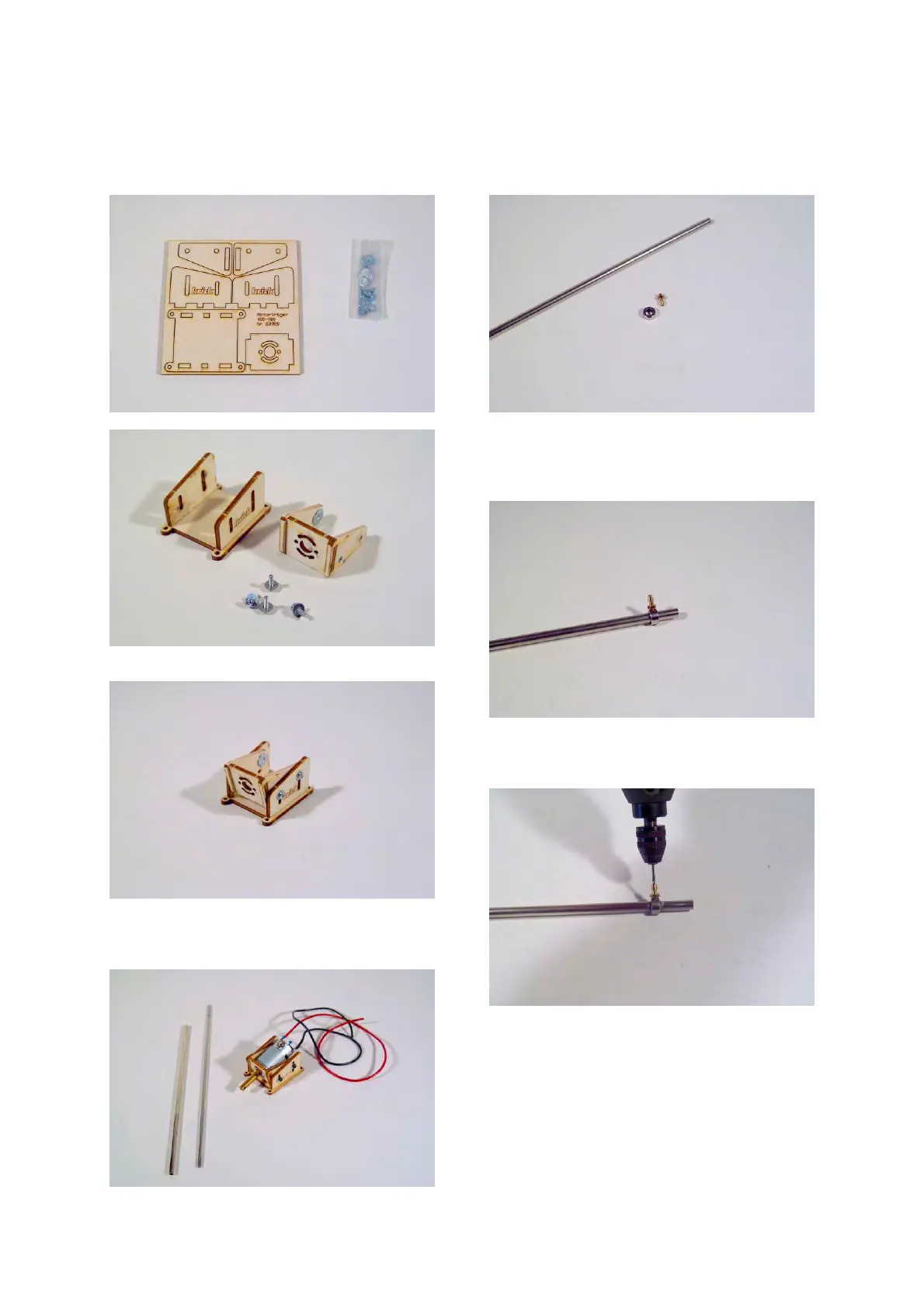

Now the electric motor can be screwed onto
the engine mount.
Put together the engine mount.
Screw the engine firmly into the mount and
fasten the coupling and shaft on to the engine.
Use an adjusting ring (propulsion set 42370
item 9+10) and the lubricating nipple to lubri-
cate the shaft.
Slide the adjusting ring onto the top end of the
stern tube and clamp it tightly on the grub
screw on the shaft using the lubricating nipple.
Now stick the adjusting ring and lubricating
nipple onto the shaft with super glue.
Now use the guide of the lubricating nipple and
drill through the stern tube.
