Updated June 2016 Page 5 © Krick Modelltechnik Knittlingen

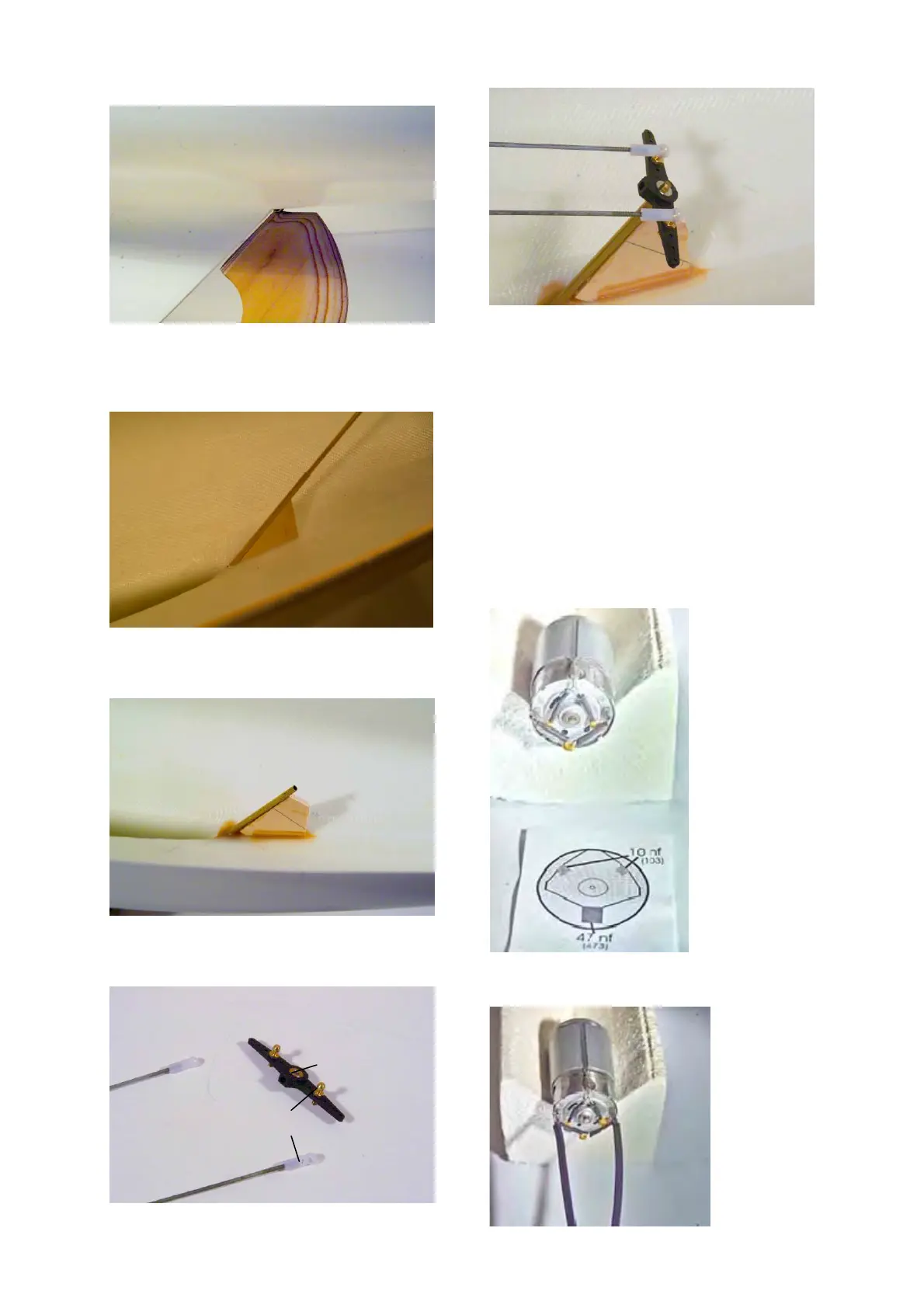

Next, fit the brace support part 36.
After this, glue it all with 5 min epoxy or Acrylit.
Build the rudder linkage from the rudder lever
part 205 and the ball joints
If you want to install the auxiliary drive, this
should be done in the next steps.
5
Motor preparation, installing the ballast
Solder the interference-suppression capacitors
on the engine so that the two capacitors 103
(value 10 nf) each run from the terminal lug to
the engine housing. The engine housing must
be sanded very well at the soldering point.
Solder the third capacitor 473 (value 47 nf)
between the two terminal lugs. Insulate the
capacitor legs with shrink sleeve wrapping.
Next, solder the connecting cables.
205
207
206
