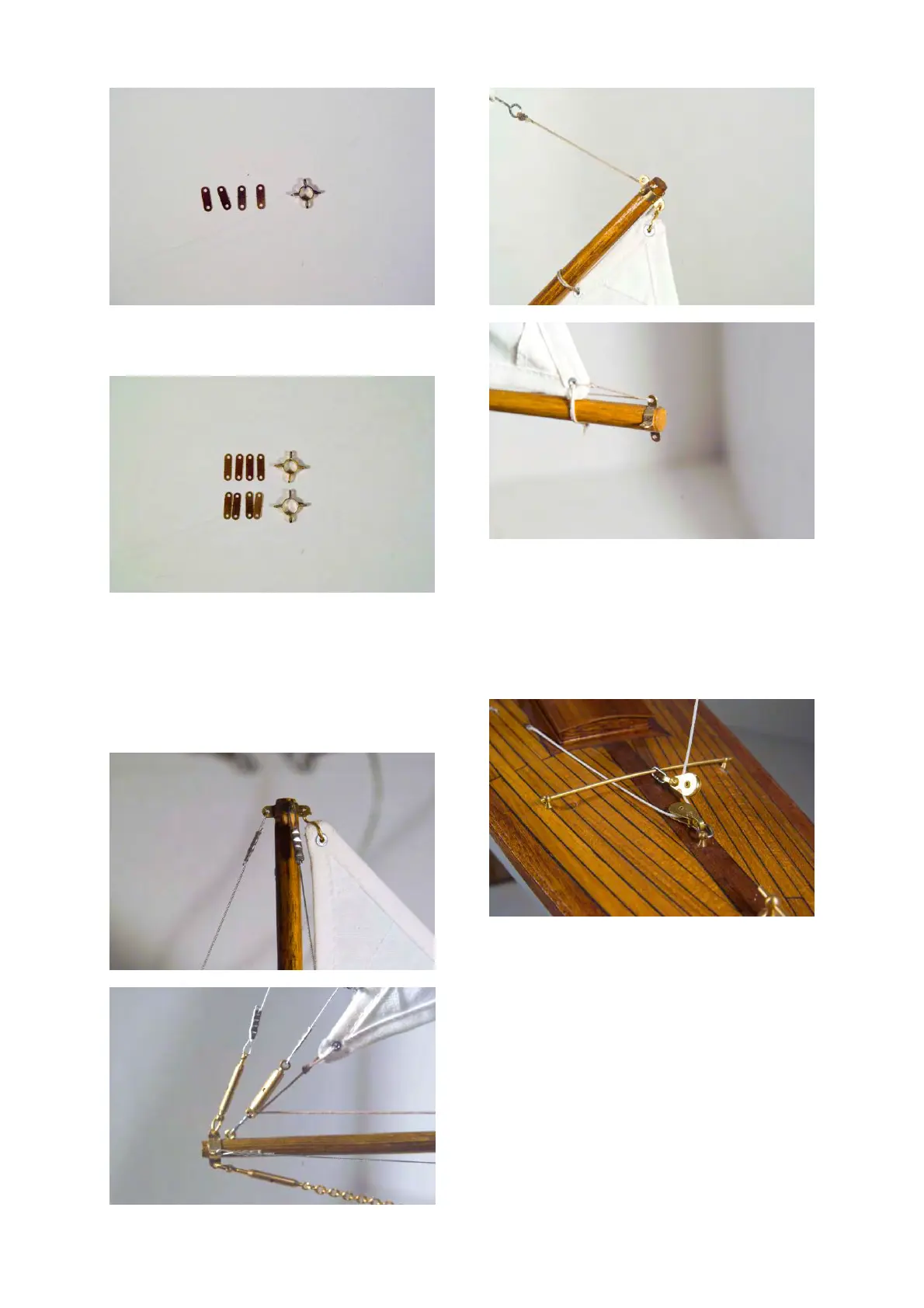

Put together the masthead fitting with a 6 mm
interior diameter using the 4 parts 154.
Also put together the jib yardarm with a 7 mm
diameter
and the boom yardarm fitting with an diameter
of 8 mm.
Now the fittings can be attached to the booms
and the mast.
Traveller
Screw 2 eyebolts part 158 into the deck and
bend the brass wire part 161 according to the
curvature of the deck and stick into the eye-
bolts.
154
151
152
Masthead
fitting
Yardarm
fitting jib
Gaff yardarm
Boom yardarm
