krispol STARCUS - Technical Data and Device Description; Programming Button Functions

CONTROL
Control option with1 drive of M or E series
1. TECHNICAL DATA
2. DEVICE DESCRIPTION
e range declared by the manufacturer is a variable value, depending on the environmental conditions
of the device operation. e range is influenced by factors such as: building structure, signal interference
from other devices, etc.
STARCUS WIRELESS
RECEIVER
MEMORY
Up to 10 transmitters
OUTPUT POWER
200 W
RANGE
Up to 25 meters indoors
SUPPLY / OUTPUT VOLTAGE
230 V / 50 Hz
DIMENSIONS
50 x 45 x 23 mm
FREQUENCY
433,92 MHz
IP RATING
IP 20

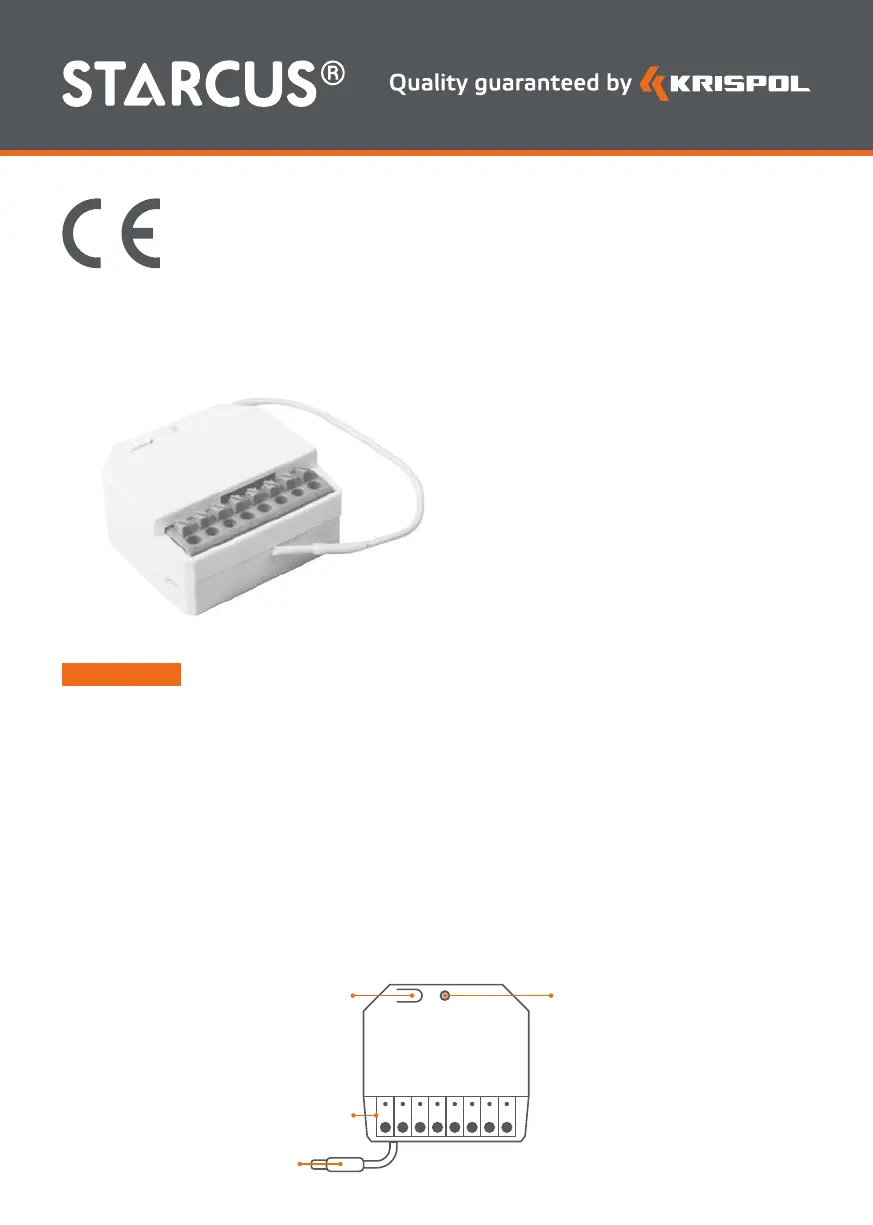

INSTRUCTION MANUAL OF
STARCUS WIRELESS RECEIVER v2.0
IMPORTANT!
CONNECTOR BLOCK
ANTENNA
PROGRAMMING BUTTON LED
PROGRAMMING BUTTON FUNCTIONS:
1. Briefly pressing the programming button for approx. 1 second controls the drive unit step by step.
e function is active after programming the end positions.
2. Pressing the programming button for 2 seconds switches the control unit into the transmitter programming mode.
3. Pressing the programming button for 6 seconds activates the radio signal blocking function.
In order to disable the function, briefly press the programming button or disconnect the control unit power supply.
4. Pressing the programming button for 10 seconds changes the direction of the drive's operation.
5. Pressing the programming button for 14 seconds deletes the memory of the control unit and restores
the factory settings.
L N N C
D U
↑
↑
EN
