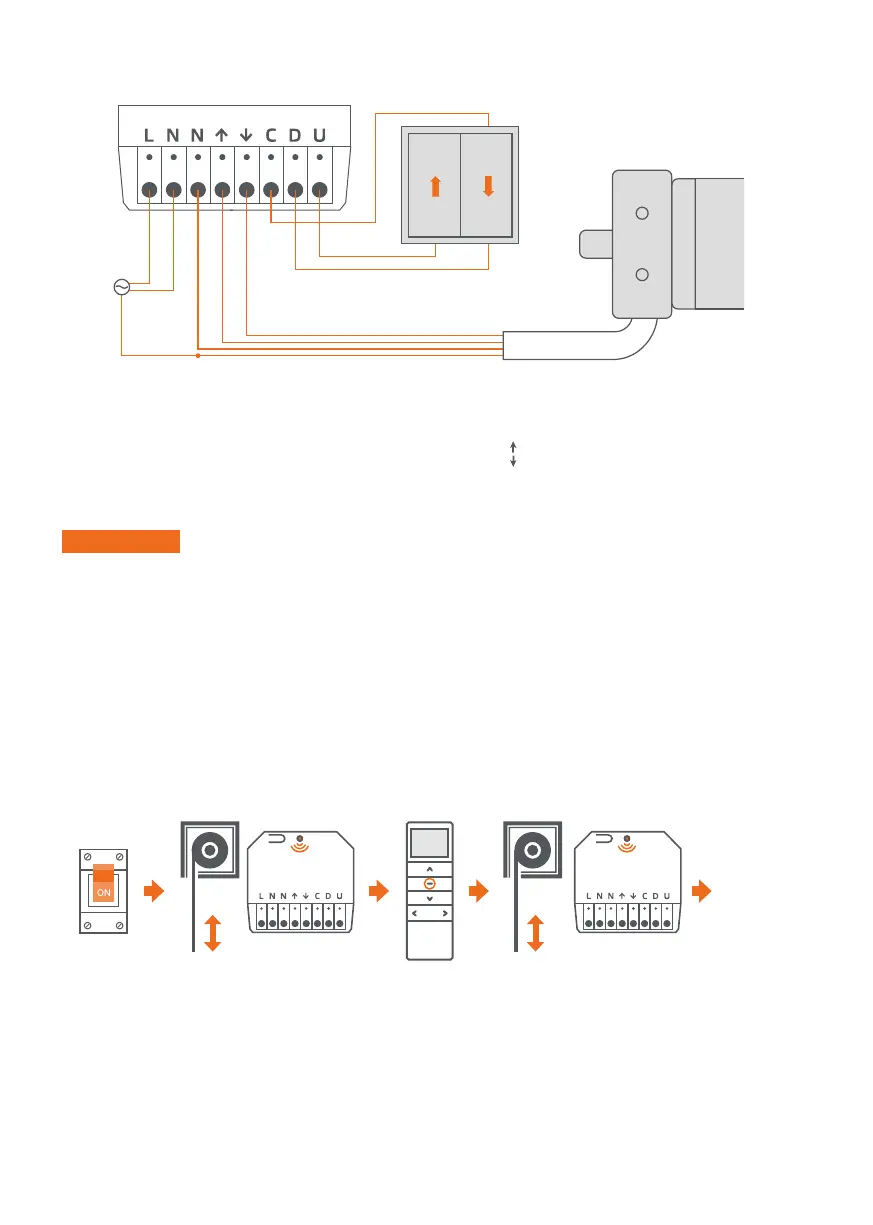

3. INSTALLATION
4. PROGRAMMING THE FIRST TRANSMITTER
Optimum distances for mounting:
a) e minimum distance of the control unit from the base > 1.5 m
b) e minimum distance of the control unit from the ceiling
and walls > 0.3 m
c) Minimum distance between units> 0.2 m
A pause between successive button presses longer than 10 seconds will result in automatic quitting
the programming mode, without saving any changes.
down
up
blue
Yellow/green
230 V / 50 Hz
drive:
230 V / 50 Hz
L – phase conductor (power supply)
N – neutral wire (power supply)
N – neutral wire (drive)
– UP direction (drive)
– DOWN direction (drive)
C – COM
D – UP direction (switch)
U – DOWN direction (switch)
IMPORTANT!
Installation should be performed by persons with appropriate SEP qualifications.
e device is designed for installation in places not exposed to direct weather conditions.
e device should be installed in accordance with industry practises, Polish and EU regulations
and standards in force. Cables connecting the electric energy receiver with the power source should
be protected against overload and short circuit with safety devices automatically disconnecting power.
e device should be powered via a separate line, only from a grid that meets the relevant standards.
x3
e transmitter
has now been
programmed
Turn off the power
and turn it on again.
e roller shutter makes
short up/down movements.
e LED will flash once.
Press and hold
the STOP button
on the remote
control for
2 seconds.
e roller shutter makes two short
up/down movements. e LED will
flash three times.
