Kroeplin G P3 Series User Manual

28
1
2
3
4
4.1-
4.4
(footer)
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22

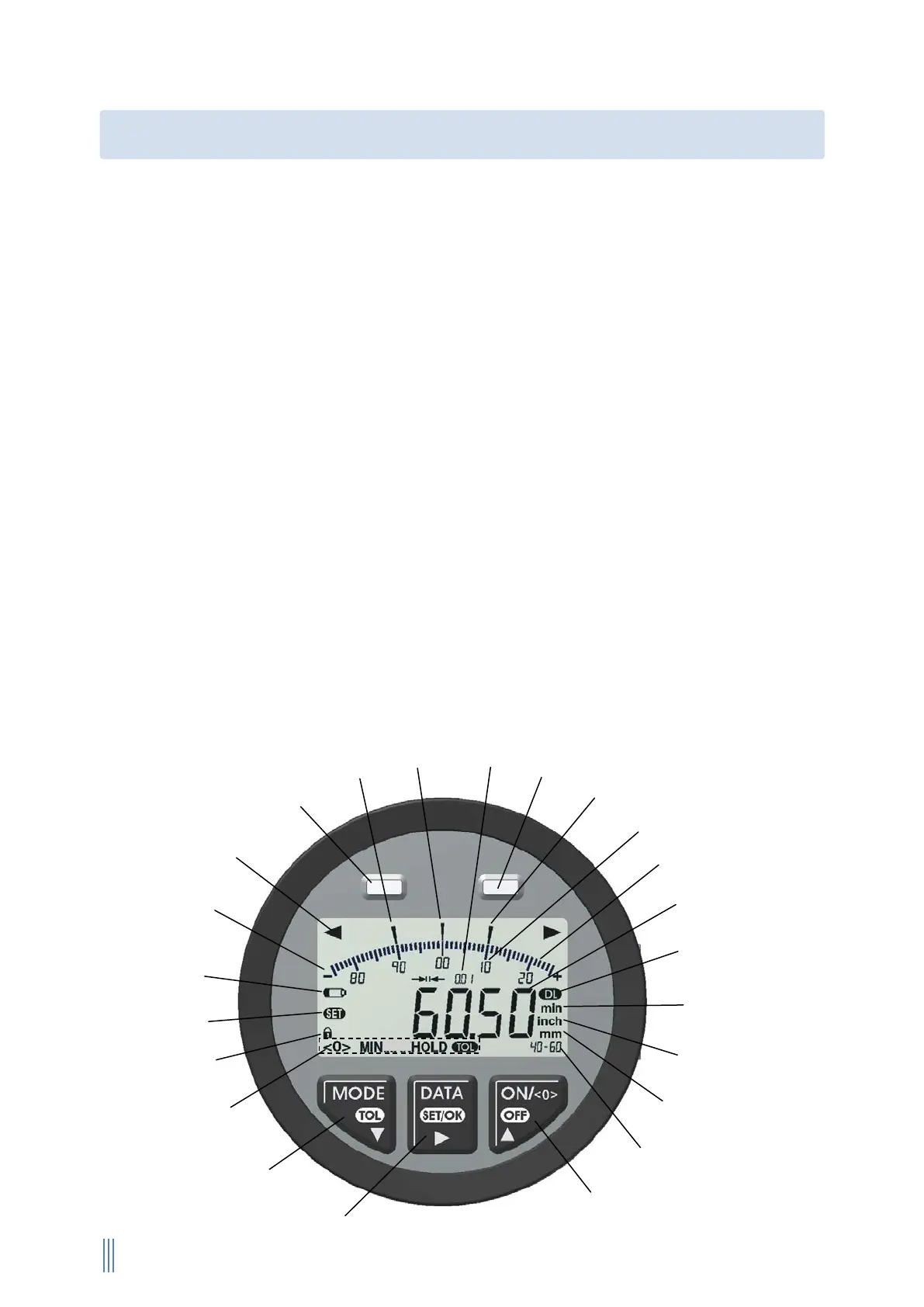

1 Numerical Display
2 Display inscription
3 Analog display
4 Measuring programs (footer):
4.1 <0> – Relative Mode is activated: 0-Preset with calibration gage
4.2 MIN – program is activated: Determination of the minimum
4.3
HOLD – program is activated: Determination of the measuring result in
measuring position
4.4 TOL – program is activated: Activating the tolerance marks and LED’s (red/green)
5 Pointer
6 Scale interval/digital step
7 Measuring range / SETUP-Menu
8 Tolerance direction
9 +/- display for comparison measurement
10 Key MODE – TOL
11 Key DATA – SET/OK
12 Key ON/<0> – OFF
13 LED red (tolerance limit)
14 LED green (tolerance limit)
15 LOW BATT activated
16 Data Logger activated
17 Key lock activated
18 mm – measuring value in millimeter
19 inch – measuring value INCH
20 min – AUTO-POWER-OFF in minutes
21 Setup – Menu active
22 Tolerance marks
LCD – Display
