Krom Schroder GIK Series - Dimensions and Weights

6
T-Product · GIK, GIK..B · 2004 November

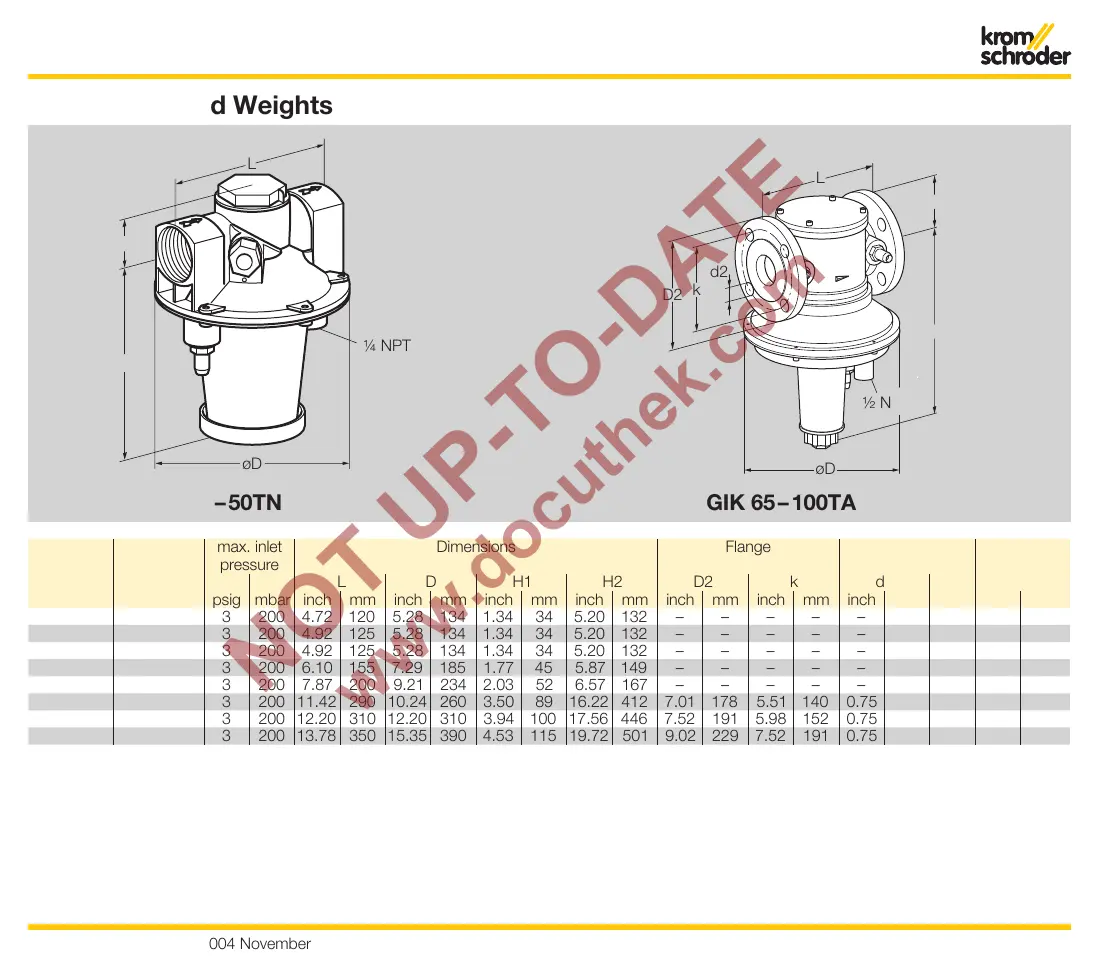

Dimensions and Weights
GIK 15 – 50TN GIK 65 – 100TA
H1
L
H2
øD
Rp
1
/4
¼ NPT
d2
k
D2
H2
øD
H1
L
Rp
1
/2
½ NPT
Type Connection max. inlet
pressure
Dimensions Flange Drilling Weight
L D H1 H2 D2 k d2 No.
psig mbar inch mm inch mm inch mm inch mm inch mm inch mm inch mm lbs kg
GIK 15TN NPT ½"
3 200 4.72 120 5.28 134 1.34 34 5.20 132 – – – – – – – 2.20 1.0
GIK 20TN NPT ¾"
3 200 4.92 125 5.28 134 1.34 34 5.20 132 – – – – – – – 2.20 1.1
GIK 25TN NPT 1"
3 200 4.92 125 5.28 134 1.34 34 5.20 132 – – – – – – – 2.20 1.1
GIK 40TN NPT 1½"
3 200 6.10 155 7.29 185 1.77 45 5.87 149 – – – – – – – 4.19 1.8
GIK 50TN NPT 2"
3 200 7.87 200 9.21 234 2.03 52 6.57 167 – – – – – – – 6.82 2.8
GIK 65TA
ANSI 2½"
3 200 11.42 290 10.24 260 3.50 89 16.22 412 7.01 178 5.51 140 0.75 19 4 26.46 12.0
GIK 80TA ANSI 3"
3 200 12.20 310 12.20 310 3.94 100 17.56 446 7.52 191 5.98 152 0.75 19 4 35.50 16.1
GIK 100TA ANSI 4"
3 200 13.78 350 15.35 390 4.53 115 19.72 501 9.02 229 7.52 191 0.75 19 8 57.33 26.0
