11.9 Checking and adjusting the net wrapping device
For the "Net wrapping" or "Net and twine tying" version
11.9.1 Adjusting the friction wheel and drive wheel

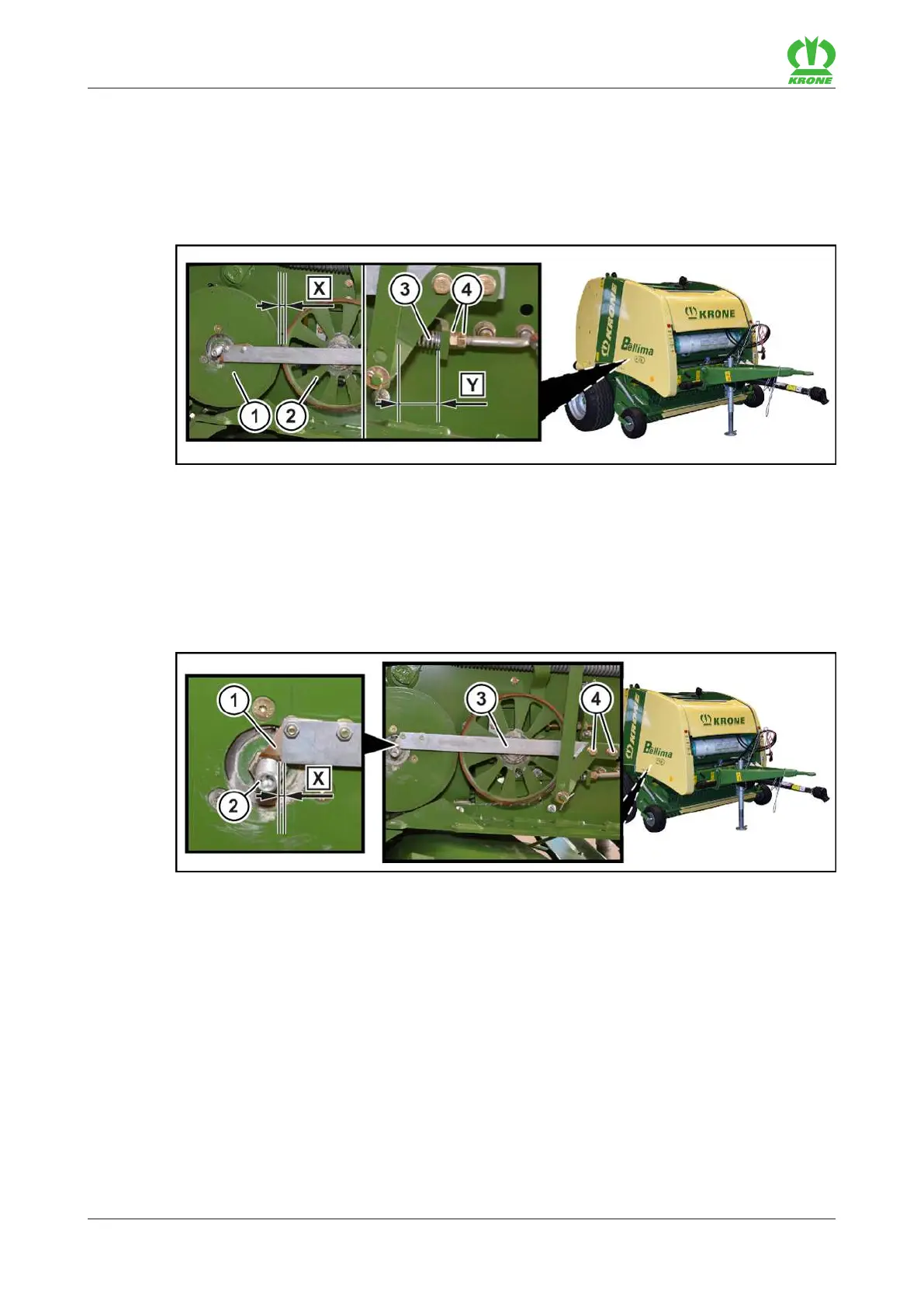

RPG000-023
ü The machine is shut down and safeguarded, refer to page24.
The dimension X between the friction wheel (1) and the drive wheel (2) must be X=1mm.
The dimension Y of the spring (3) must be Y=25-35mm.
 To set dimension X or dimension Y, loosen the nuts(4) and set the dimensions X and Y.
11.9.2 Setting the spring rail
RPG000-024
ü The machine is shut down and safeguarded, refer to page24.
At the end of the spring rail (3), there is a fold-down tip (1) which is movably screwed to the
spring rail (3). The distance X between setting screw (2) and spring rail (3) must be X=2-3 mm.
 To set the distance X, loosen the screws (4) and move the spring rail (3) until the dimension
X=2-3 mm.
 Tighten the screws (4).
