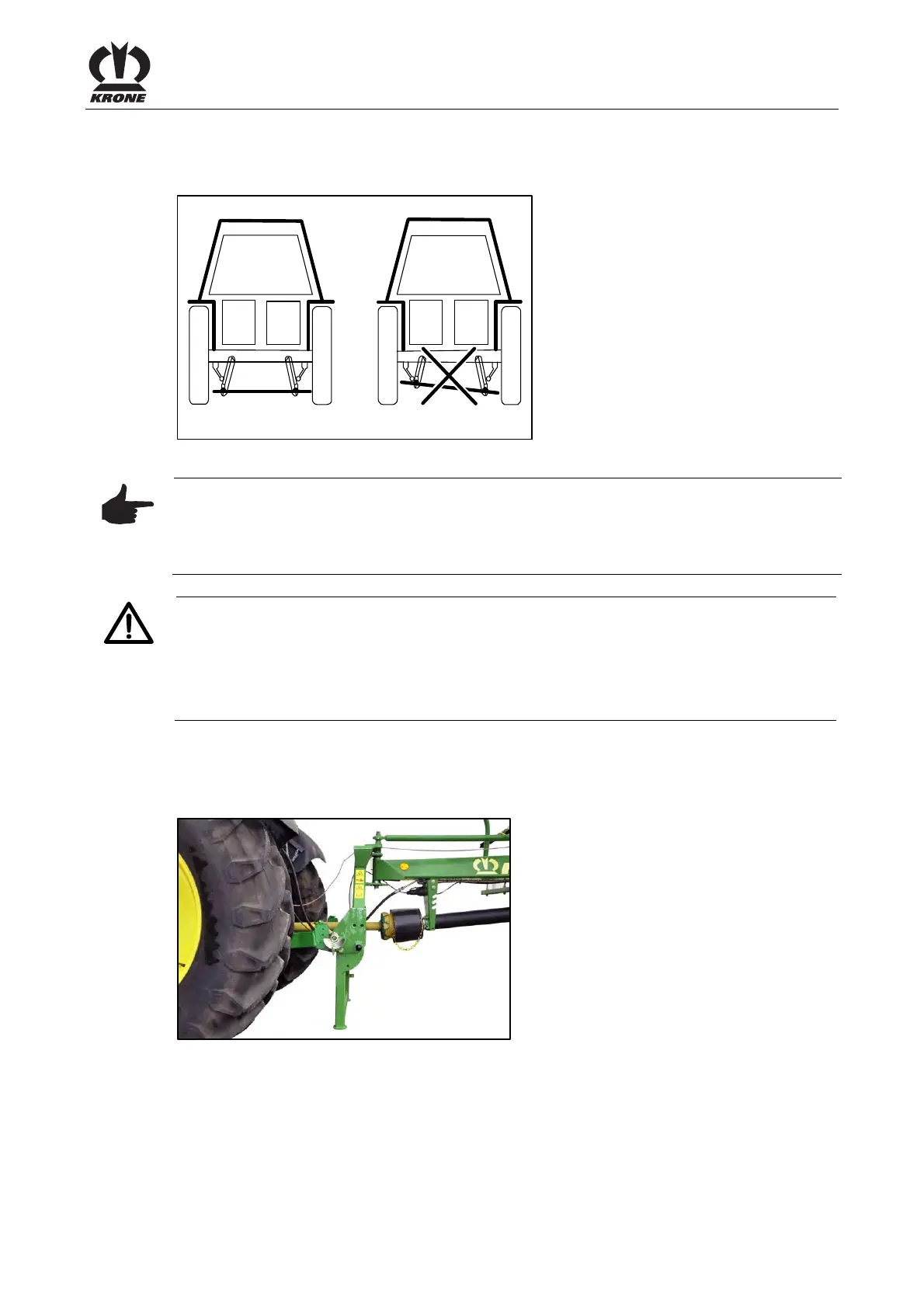

Commissioning
49
Pos: 28.10.1 /Überschr iften/Überschr iften 2/U-Z/VVorberei tungen am Traktor @ 2\mod _1202363643678_78.doc x @ 58694 @ 2 @ 1
7.2 Preparations on tractor
Pos: 28.10.2 /Überschr iften/Überschr iften 3/U-Z/Unterle nker einstellen @ 6\mod _1214454896135_78.doc x @ 94186 @ 3 @ 1
7.2.1 Adjusting the lower suspension arms
Pos: 28.10.3 /BA/Er stinbetriebnahme/Sc hwader/Swadro 807_81 0_907/Bild_Aushub vorrichtung Traktor @ 2\mod_1202364384960_ 78.docx @ 58789 @ @ 1
KS-0-030
Fig. 17
Pos: 28.10.4 /Layout Module /----------------Leerzeile 5 Pt.-------------------- @ 120\mod_1342592918145_0.doc x @ 1092566 @ @ 1
Pos: 28.10.5 /BA/Er stinbetriebnahme/Sc hwader/Swadro 807_81 0_907/Hinweis Unter lenker @ 2\mod_12023641 26303_78.docx @ 58751 @ @ 1
Note
The tractor lower suspension arms must always be installed so that the lifting points of the
lower suspension arms are all at the same distance from the ground. In order to prevent
swivelling of the machine during transport or operation, the lower suspension arms must be
secured by limiting chains or bars.
Pos: 28.11 /BA/Er stinbetriebnahme/W ender/Hinweis - Je nac h Traktortyp evtl. Anhängeku pplung abbauen. @ 172\mod _1370506026261_ 78.docx @ 1479993 @ @ 1
CAUTION! – Collision with the trailer coupling
Effect: Damage to the tractor or machine
Depending on the type of tractor, the top link of the tractor and/or the universal shaft of the
machine could collide with the trailer coupling.
To prevent damage, it may be necessary to detach the trailer coupling. For further
information refer to the tractor manufacturer's operating instructions.
Pos: 28.12 /Layout Module /----------------Leerzeile-------------------- @ 240\mod_1395147357027_0.doc x @ 1890988 @ @ 1
Pos: 28.13 /Übersc hriften/Überschri ften 2/U-Z/UUnterlenker ankuppeln @ 134\mod_13 50461609810_78.doc x @ 1186832 @ 2 @ 1
7.3 Connecting the Lower Link
Pos: 28.14 /BA/Inbetr iebnahme/Schwader /Anbau an den Traktor/ Unterlenker ankuppeln_B ild_SW 700# @ 173\mod_13 71109817897_78.doc x @ 1485999 @ @ 1
SW700060
Fig. 18
Pos: 28.15 /BA/Inbetr iebnahme/Schwader /Anbau an den Traktor/ Unterlenker ankuppeln_ Text @ 133\mod_13498726127 49_78.docx @ 1178384 @ @ 1
Connect the machine according to the operating instructions of the tractor manufacturer to
the lower links, raise it slightly and secure it.
Place the machine onto the parking support.
Turn off the tractor and secure it.
Pos: 28.16 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0. docx @ 4165 @ @ 1
