Krone Terminal Beta II - Connecting the Terminal Components

Start-up
9
5.2 Connecting the terminal
Pos: 3.48 /BA/In fo-Center/CCI- ISOBUS-Termi nal/Module für Beipack/Ter minal anschließe n bei gezogene n Maschinen (nic ht ISOBUS-f ähiger Traktor) D elta Terminal @ 280\mod_1 40557480484 5_6.docx @ 2155 819 @ @ 1

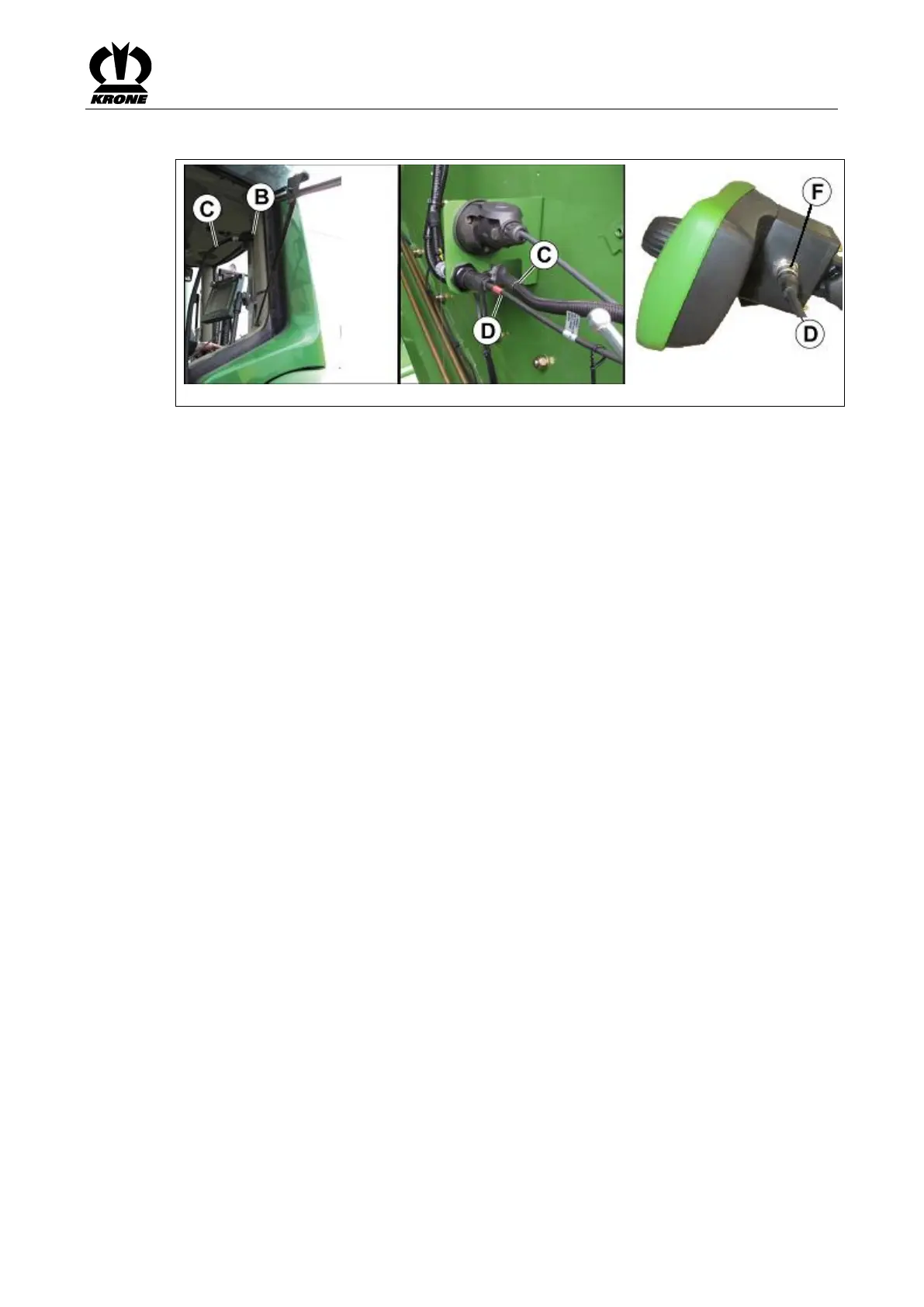

Fig.
4
• Mount power supply 00 303 914 0 (B) on the tractor.
• Connect the cable for power supply 20 080 601 0 (C) and the cable harness for terminal
connection 20 081 224 0 (D) to the machine.
• Guide the cable harness for terminal connection (D) from the machine to the driver's cab.
• Connect cable harness for terminal connection (D) with terminal via “CAN” (F).
