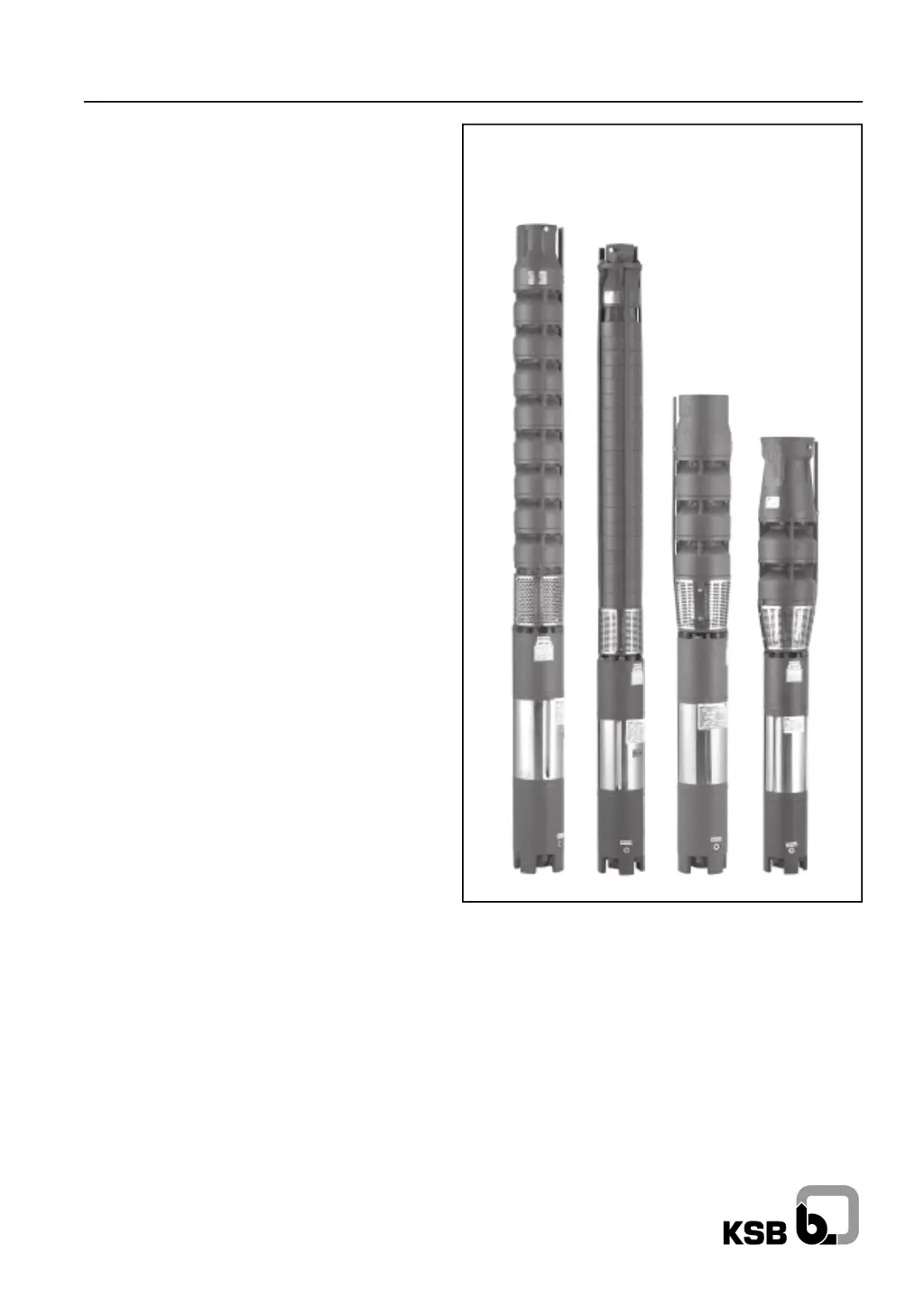

Submersible Motor pumps
Operating Instructions
3300.8115 / 04 - 85 G3
Submersible Motor Pumps (50 Hz)
150 mm + 150 mm
175 mm + 150 mm
200 mm + 150 mm

Table of Contents

Questions and Answers

  • A
    Ariel LewisAug 13, 2025
    Why won't my KSB BPD 302 motor start?
    • K
      Kimberly JimenezAug 14, 2025
      There are several reasons why your KSB water pump motor might not start. It could be due to voltage issues, such as too low or no voltage. Try retightening loose connections or contacting your electrical supply authority. Another reason could be damaged motor winding or supply cable, which would need repair or replacement. Also, check if the fuses or automatic switches are suitable and replace them if necessary. In the case of a three-phase motor, failure of a phase can cause this issue; rectify loose connections, replace fuses, or consult an electrical authority.
  • J
    Joseph SmithAug 18, 2025
    What to do if KSB BPD 302 motor does not start due to low voltage?
    • D
      Dana WrightAug 18, 2025
      If your KSB Water Pump motor isn't starting because of low or no voltage, retighten any loose connections. If the problem persists, contact your electrical supply authority for assistance.
  • S
    shirley84Aug 21, 2025
    How to fix a KSB BPD 302 Water Pump motor that won't start because of a damaged cable?
    • T
      tyler05Aug 21, 2025
      If your KSB Water Pump motor won't start due to a damaged motor winding or supply cable, the solution is to repair or replace the motor or cable.
  • K
    karen97Aug 25, 2025
    What to do if fuses are unsuitable for KSB BPD 302 Water Pump and the motor does not start?
    • C
      cbrownAug 26, 2025
      If your KSB Water Pump motor isn't starting and you suspect the fuses or automatic switches are not suitable, replace the fuse or switch with a more appropriate one.
  • V
    Victoria WallerAug 28, 2025
    What to do if my KSB BPD 302 Water Pump motor does not start because of single phasing?
    • X
      xjonesAug 28, 2025
      If your KSB Water Pump motor isn't starting due to failure of a phase (single phasing in 3 phase motor), rectify any loose connections, replace fuses, or consult with your electrical authority.
  • T
    timothy30Sep 1, 2025
    Why KSB Water Pump motor could not start because of high temperature?
    • K
      Kevin ThomasSep 1, 2025
      If the switchgear is positioned in a place that is too warm, this can prevent your KSB Water Pump motor from starting. Protect the switchgear from heat to resolve this issue.
  • M
    Matthew MillsSep 5, 2025
    What to do if the KSB BPD 302 Water Pump motor does not start due to leakage?
    • J
      jamesfloresSep 5, 2025
      If leakage in the unit or a faulty pressure gauge is preventing your KSB Water Pump motor from starting, trace the leakage and seal it.
  • B
    Brenda BerrySep 9, 2025
    What to do if KSB BPD 302 Water Pump motor does not start due to clogged components?
    • J
      Jonathan JimenezSep 9, 2025
      If pump components are clogged, which prevents your KSB Water Pump motor from starting, the pump should be repaired to prevent such incidents. To prevent this, the pumpset should not be idle for a long time and should be operated at least once a week.

Summary

General Information and Safety

Pump Safety and Operation Guidelines

Covers safety checks, authorized operation, site conditions, and water characteristics.

Installation Preparation

Motor Preparation and Cable Connection

Motor Filling and Insulation Resistance Checks

Procedures for filling the motor with water and measuring insulation resistance.

Extended Cable Selection and Watertight Connection

Guidance for choosing and connecting extended cables to ensure a watertight joint.

Pump Set Assembly and Vertical Installation

Pump Set Preparation for Installation

Steps for coupling the pump and motor and preparing for installation.

Vertical Installation Procedures

Recommendations for checking borewell trueness and installing the pumpset vertically.

Horizontal Installation Procedures

Cable Connections to Switchgear

Commissioning, Startup, and Operation

Installation Checks and Operational Limits

Operation Supervision and Storage

Service, Dismantling, and Reassembly

Reassembly Guidelines

Motor Troubleshooting Guide

Pump Troubleshooting Guide

KSB BPD 302 Specifications

General IconGeneral
BrandKSB
ModelBPD 302
CategoryWater Pump
LanguageEnglish
