PumpMeter
PumpMeter
Product description

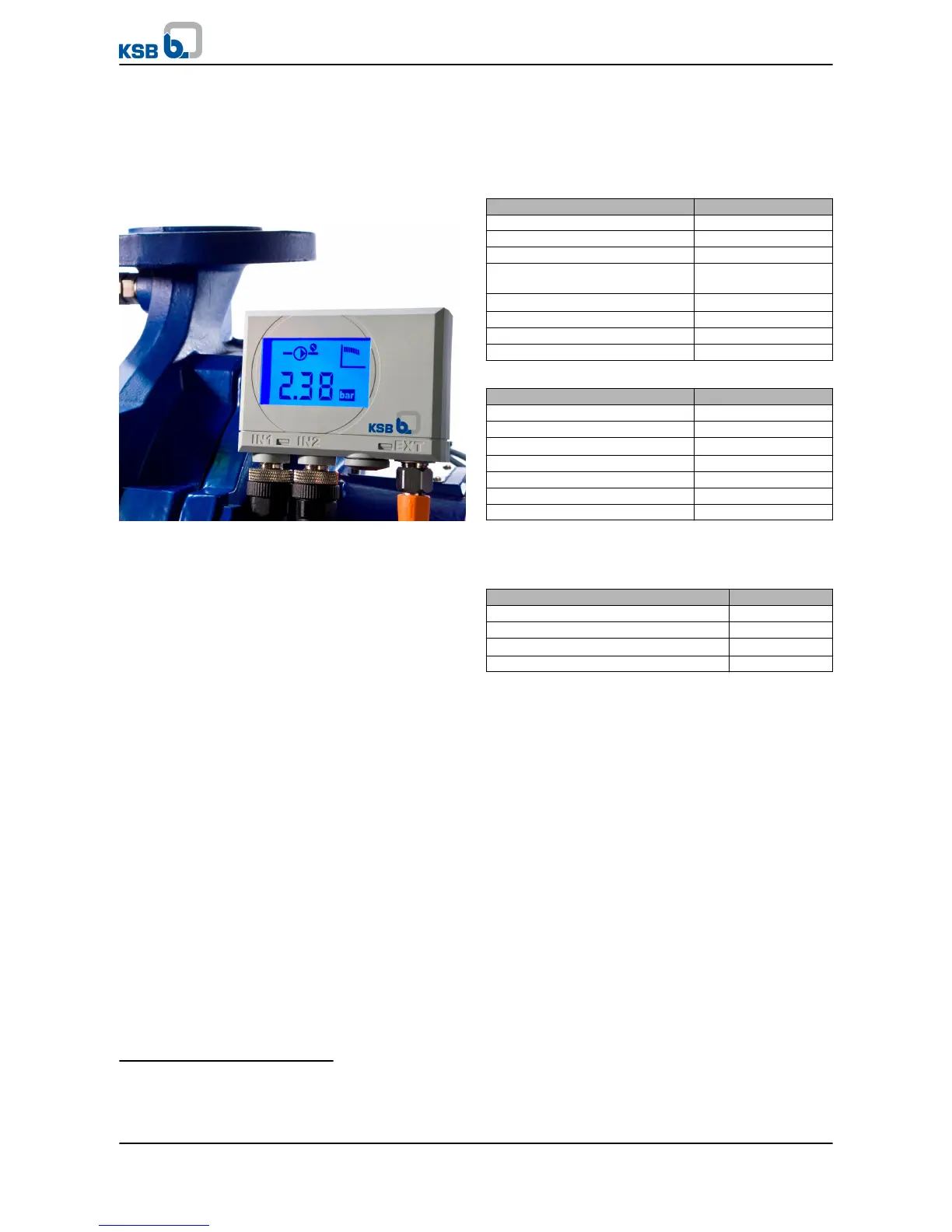

The PumpMeter device is an intelligent pressure sensor for
pumps, with local output of measured values and operating
data.
The device consists of two pressure sensors and a display unit.
It records the load profile of the pump in order to indicate any
potential for optimising energy efficiency and availability.
PumpMeter is supplied completely assembled and
parameterised for the corresponding pump. It is ready for
operation as soon as the M12 plug connector is plugged in.
Main applications
Industry:
▪ Refrigeration/distribution
▪ Heat generation/distribution
▪ Water conditioning
▪ Cooling lubricant distribution
▪ Water extraction
▪ Service water supply
Water:
▪ Water extraction/withdrawal
▪ Water treatment/conditioning
▪ Water distribution/transport
Building Services:
▪ Air-conditioning systems
▪ Heat generation/distribution
▪ Water supply systems
Technical data
Technical data of the display unit
Characteristics Value
Power supply 24V DC ± 15%
Power input 150 mA
Analog signal output 4-20 mA, 3-core
Digital connection RS485, Modbus RTU
(Slave)
Enclosure
IP 65
1)
Service interface RS232
Bearing temperature -30 °C to 80 °C
Operating temperature -10 °C to 60 °C
Technical data of the sensors
Characteristics Value
Signal 4-20 mA
Gauge pressure 40 bar max.
Enclosure
IP 67
1)
Burst pressure 80 bar max.
Fluid temperature -30 °C to 140 °C
Installation torque 10 Nm
Ambient temperature -10 °C to 60 °C
Materials
Overview of materials
Wetted components Material
Pressure sensor measuring unit 1.4542
Pressure sensor process connection 1.4301
Adapter for fitting a sensor
2)
1.0037 or 1.4571
Joint ring Centellen®
Product benefits
▪ Transparent pump operation
Local output of the relevant operating data, especially the
operating point of the pump.
▪ Identifies energy saving potentials
by recording and analysing the load profile and displaying
the energy efficiency icon (EFF), if applicable.
▪ Saves time and money
The sensors are fitted to the pump at the factory, unlike
conventional instruments used in systems.
▪ Helps increase pump availability
by recognising and avoiding operation outside of the
intended operating range.
Functions
Pressure transmitter function
The discharge pressure or differential pressure of the pump are
transmitted as a 4-20 mA signal. Connection via the RS485
serial interface with Modbus protocol is also possible.
1)
Provided that the plugs are connected correctly
2)
Depending on the basic material design of the pump
