KStar UDC9103S One User Manual

7

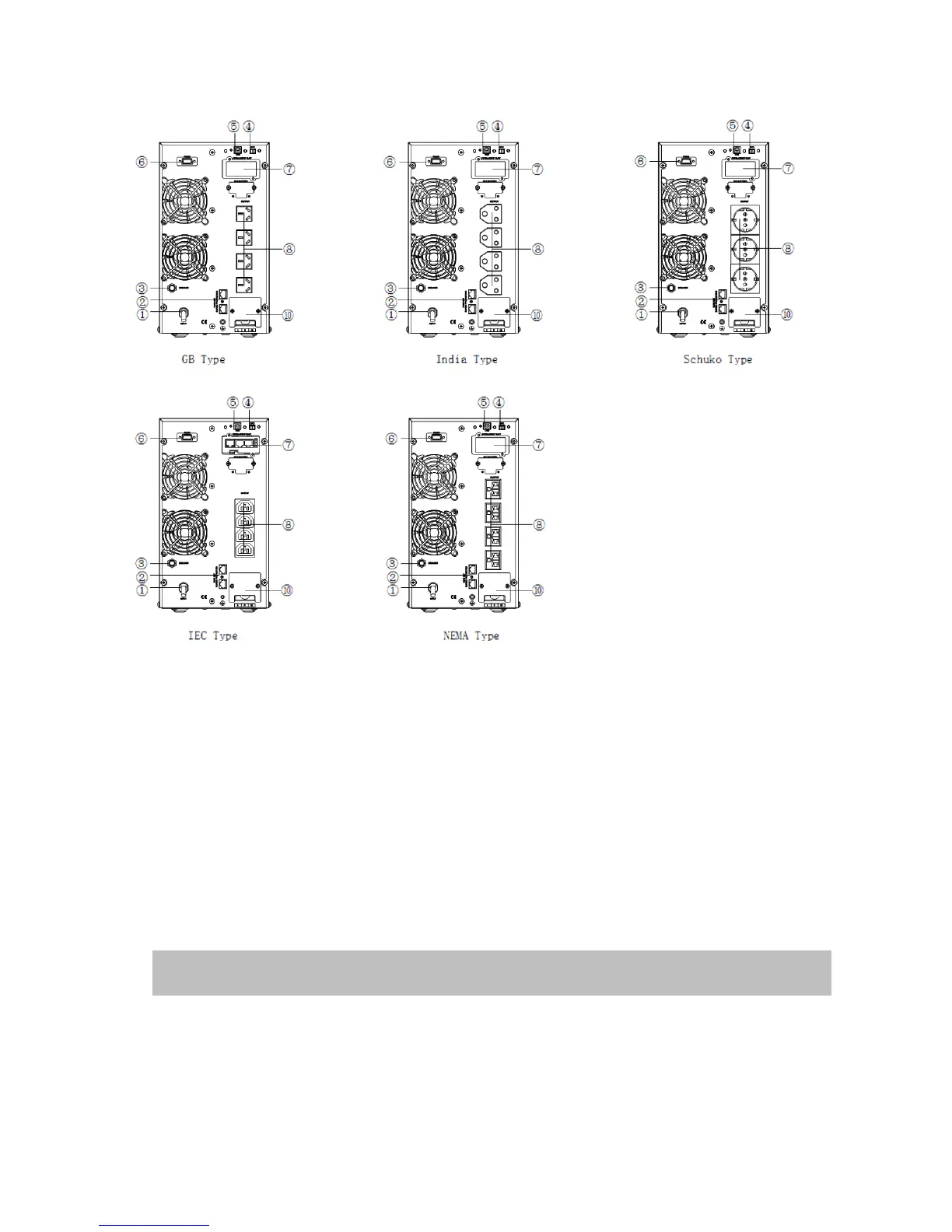

2KVA(S)-6batt /3KVA(S):
1. ACinput
2. Network/Fax/ModemSurgeProtection(option)
3. Inputcircuitbreaker
4. EPO(option)
5. USBcommunicationport(option)
6. RS-232communicationport
7. SNMPintelligentslot(option)
8. Outputreceptacles
9. BatteryTerminal
10. OutputTerminal

2-3 SetuptheUPS
Step 1: UPS input connection
Plug the UPS into a two-pole, three-wire, grounded receptacle only. Avoid using extension
cords.
 For 200/208/220/230/240VAC models: The power cord is supplied in the UPS package.
Step 2: UPS output connection
