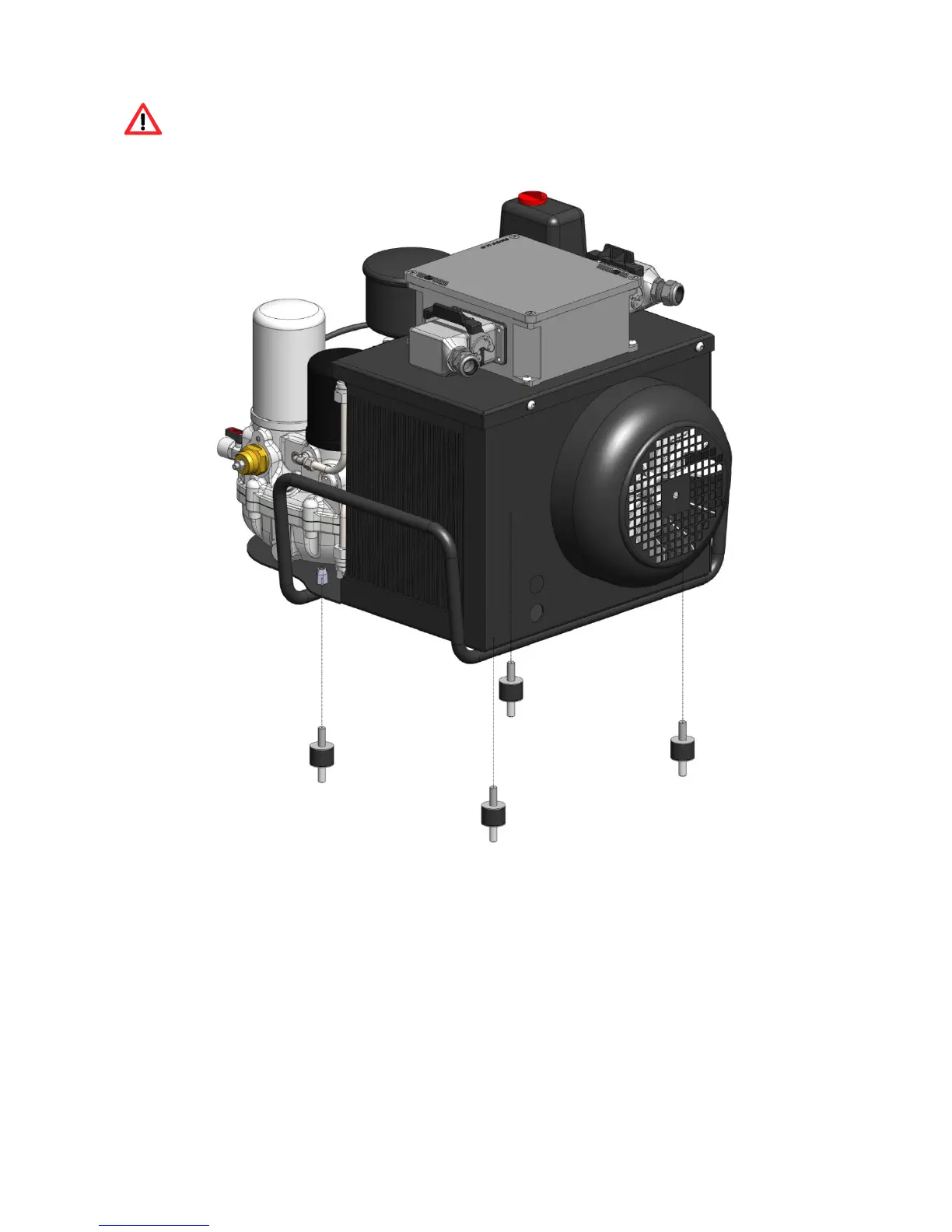

In this version, the compressor must be set between a floor and legs of the compressor,
through no.4 M8 screws.
If necessary, refer to ch. 3 DIMENSIONS to assess the interests of a puncture.
