KTM 125 SX 2017 User Manual

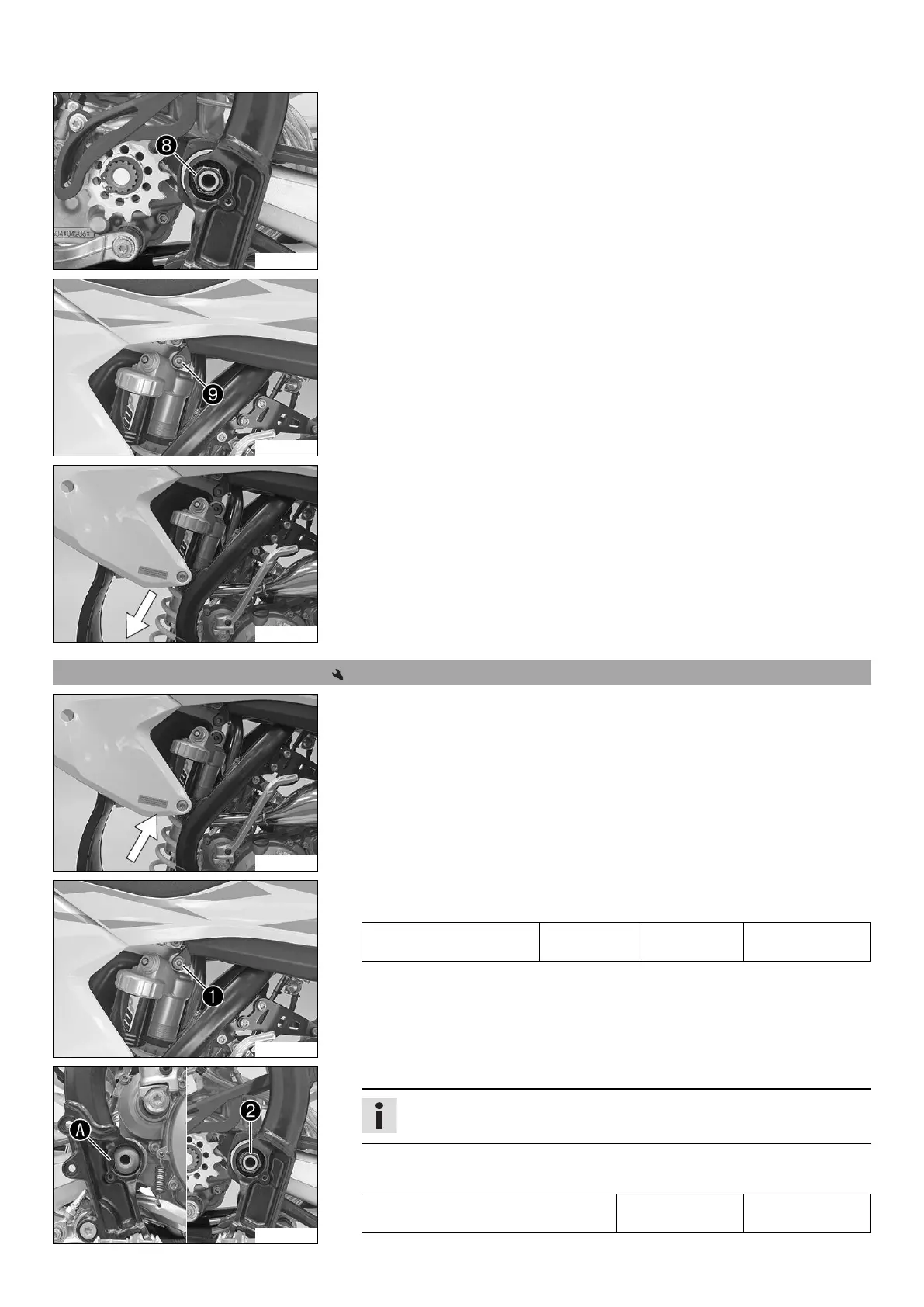

11 SERVICE WORK ON THE CHASSIS 51
F00027-10
–
Remove nut

and pull out the swingarm pivot.
– Push the swingarm back and secure it against falling over.
F00029-10
–
Hold the shock absorber and remove screw

.
F00030-01
– Remove the shock absorber carefully at the bottom.
11.19 Installing the shock absorber
F00030-02
Main work
– Carefully position the shock absorber into the vehicle from the bottom.
F00029-11
–
Mount and tighten screw

.
Guideline
Screw, top shock absorber M10 60 Nm
(44.3 lbf ft)
Loctite
®
2701™
F00035-10
– Position the swingarm and mount the swingarm pivot.
Info
Pay attention to flat area

.
–
Mount and tighten nut

.
Guideline
Nut, swingarm pivot M16x1.5 100 Nm
(73.8 lbf ft)

KTM 125 SX 2017 Specifications

General

Displacement	124.8 cm³
Starter	Kickstarter
Transmission	6-speed
Front Brake	Disc brake
Rear Brake	Disc brake
Ground Clearance	375 mm
Engine Type	1-cylinder, 2-stroke
Bore x Stroke	54 mm x 54.5 mm
Front Suspension	WP USD Ø 48 mm
Rear Suspension	WP shock absorber with linkage
Fuel Tank Capacity	7 liters
Clutch	Wet, multi-disc clutch
Fuel System	Carburetor
Frame	Central double-cradle type 25CrMo4 steel
