KTM 125 SX 2019 User Manual

SERVICE WORK ON THE CHASSIS 11
59
K01133-10
–
Mount and tighten screw
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)

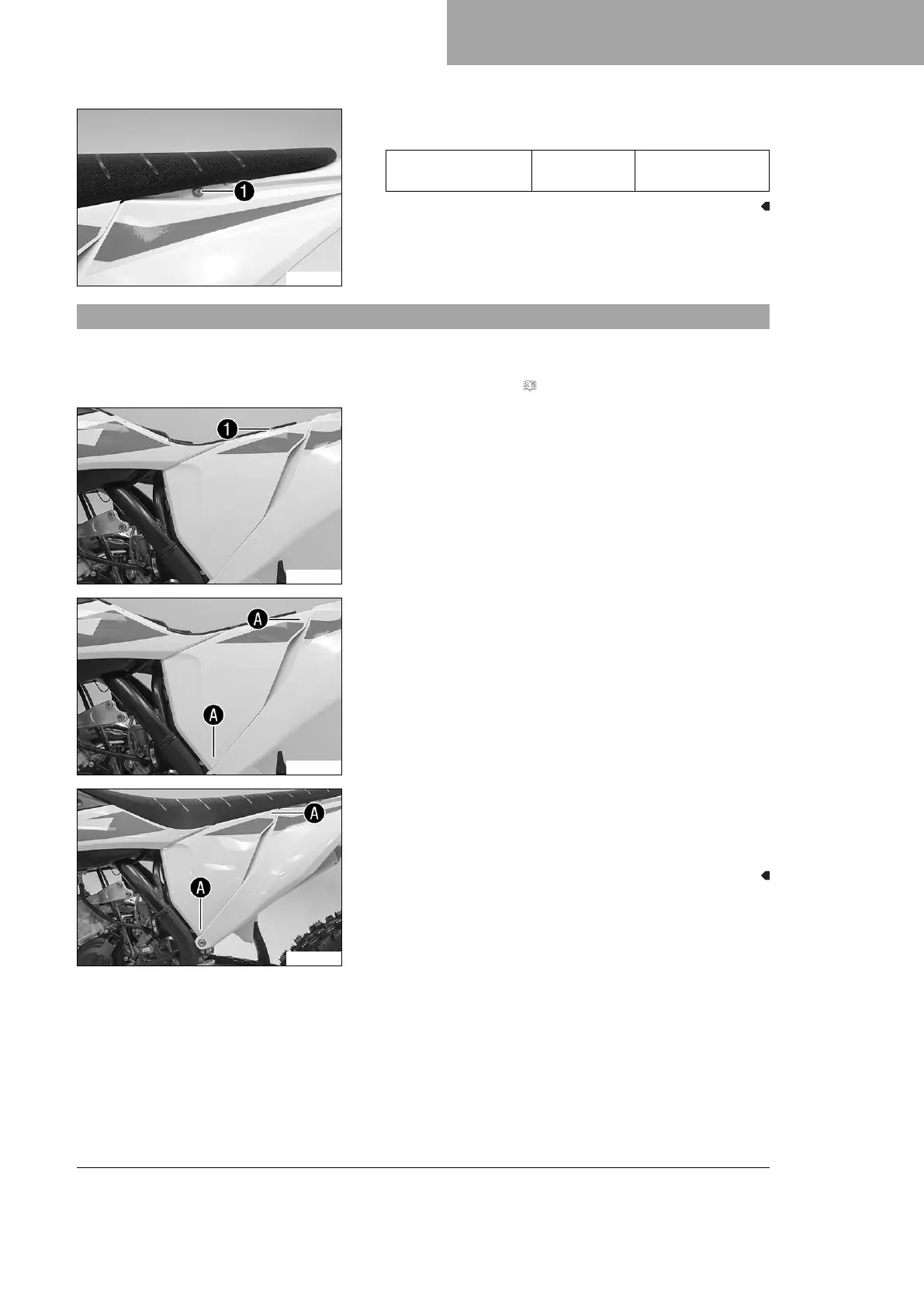

11.22 Removing the air filter box cover
Condition
The air filter box cover is secured.
– Remove the seat. ( p. 58)
K01153-10
–
Remove screw
1
.
K01154-10
–
Pull off the air filter box cover in area
A
sideways and
take off toward the front.
K01155-10
Condition
The air filter box cover is not secured.
–
Pull off the air filter box cover in area
A
sideways and
take off toward the front.
