KTM 125 SX 2024 Setup Instructions

WORK 3
9

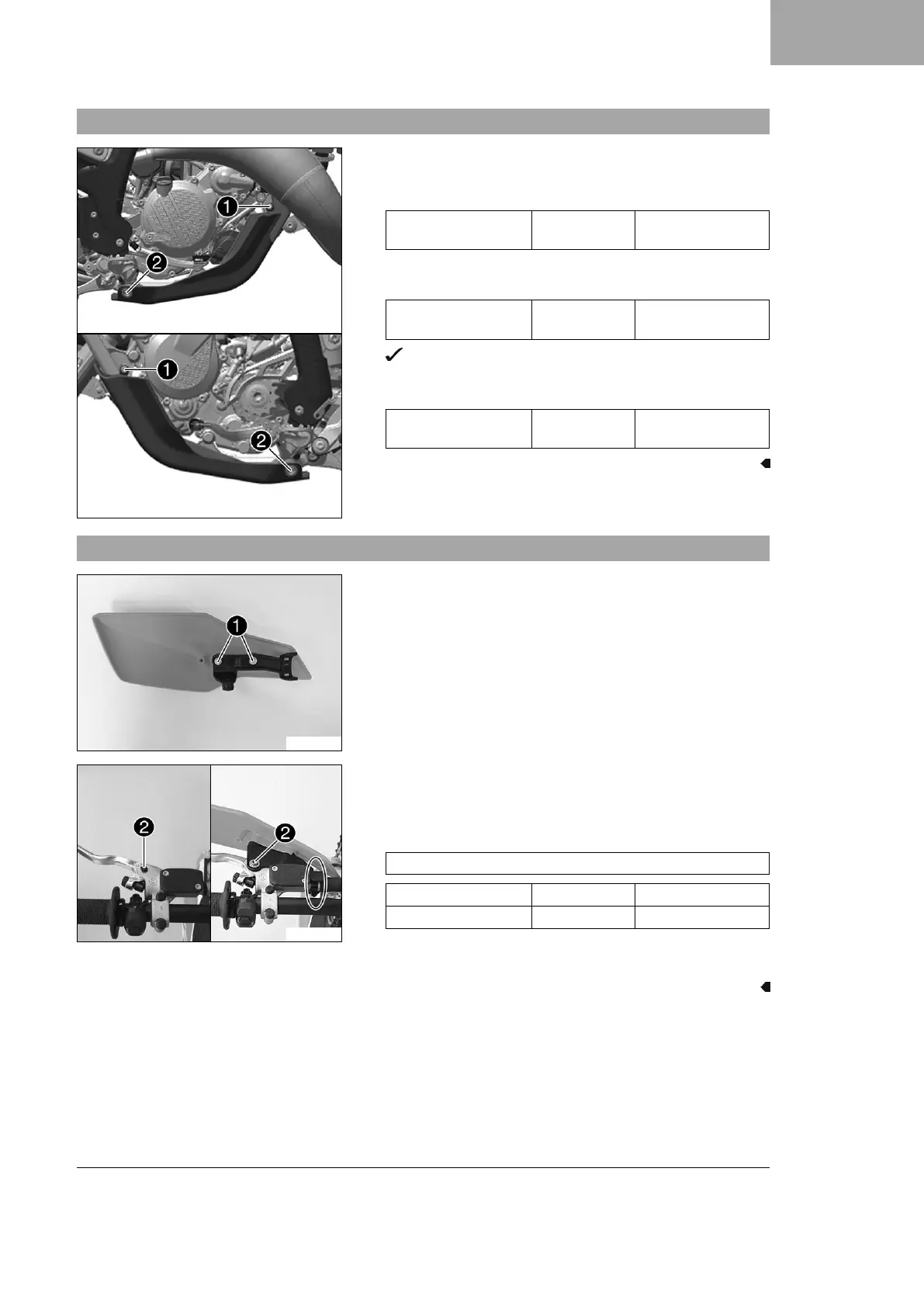

3.3 Installing the engine guard (XC)
S05562-11
– Position the engine guard on the frame.
–
Mount screws
1
, but do not tighten yet.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
–
Mount screws
2
with bushings, but do not tighten yet.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
The engine guard is directed evenly toward the front.
– Tighten all the screws of the engine guard.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
3.4 Mounting the handguard (XC)
S05570-10
–
Mount the handguard holder with screws
1
on the handguard
shell.
S05571-10
– Pull off the rubber grommet.
–
Remove screw
2
.
–
Position the handguard. Mount and tighten screw
2
.
Guideline
Use the included screws for the handguard.
Screw, clutch lever M6 5 Nm (3.7 lbf ft)
Screw, brake lever M6 5 Nm (3.7 lbf ft)
– Mount the cable ties.
– Repeat the operation on the opposite side.

KTM 125 SX 2024 Specifications

General

Displacement	124.8 cm³
Bore x Stroke	54 mm x 54.5 mm
Starter	Electric starter
Transmission	6-speed
Front Suspension	WP XACT-USD, Ø 48 mm
Rear Suspension	WP XACT Monoshock with linkage
Ground Clearance	375 mm
Seat Height	950 mm
Front Tire	80/100-21"
Rear Tire	100/90-19"
Engine Type	Single-cylinder, 2-stroke
Fuel System	Mikuni TMX 38
Front Brake	Disc brake, 260 mm
Rear Brake	Disc brake, 220 mm
Clutch	Wet, multi-disc clutch, Brembo hydraulics
Frame	Central double-cradle type in chrome-molybdenum steel
