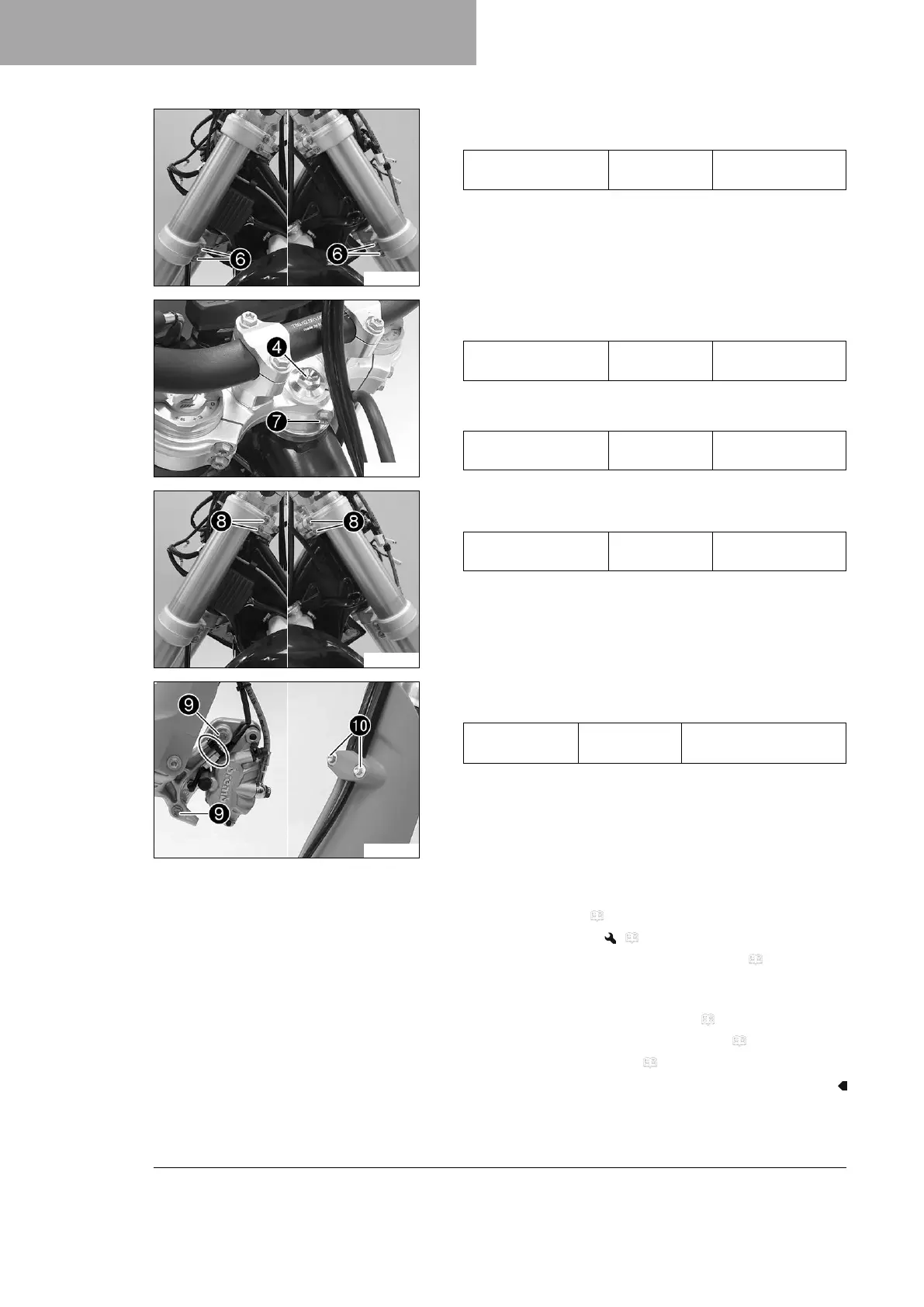

12 SERVICE WORK ON THE CHASSIS
66
V01790-10
–
Tighten screws
6
.
Guideline
Screw, bottom triple
clamp
M8 15 Nm (11.1 lbf ft)
E01701-10
–
Tighten screw
4
.
Guideline
Screw, top steering
head
M20x1.5 12 Nm (8.9 lbf ft)
–
Tighten screw
7
.
Guideline
Screw, top steering
stem
M8 20 Nm (14.8 lbf ft)
V01790-11
–
Tighten screws
8
.
Guideline
Screw, top triple
clamp
M8 20 Nm (14.8 lbf ft)
V01792-10
–
Position the brake caliper, and mount and tighten screws
9
.
Guideline
Screw, front
brake caliper
M8 25 Nm (18.4 lbf ft)
Loctite
®
243™
– Mount the cable ties.
– Position the brake line, the wiring harness, and the clamp.
Mount and tighten screws
bk
.
Finishing work
– Mount the handlebar cushion.
– Install front fender. ( p. 72)
– Install the front wheel. ( p. 107)
– Install the headlight mask with the headlight. ( p. 121)
– Check that the wiring harness, throttle cables, and brake and
clutch lines can move freely and are routed correctly.
– Check the steering head bearing play. ( p. 68)
– Remove the motorcycle from the lift stand. ( p. 60)
– Check the headlight setting. ( p. 122)
