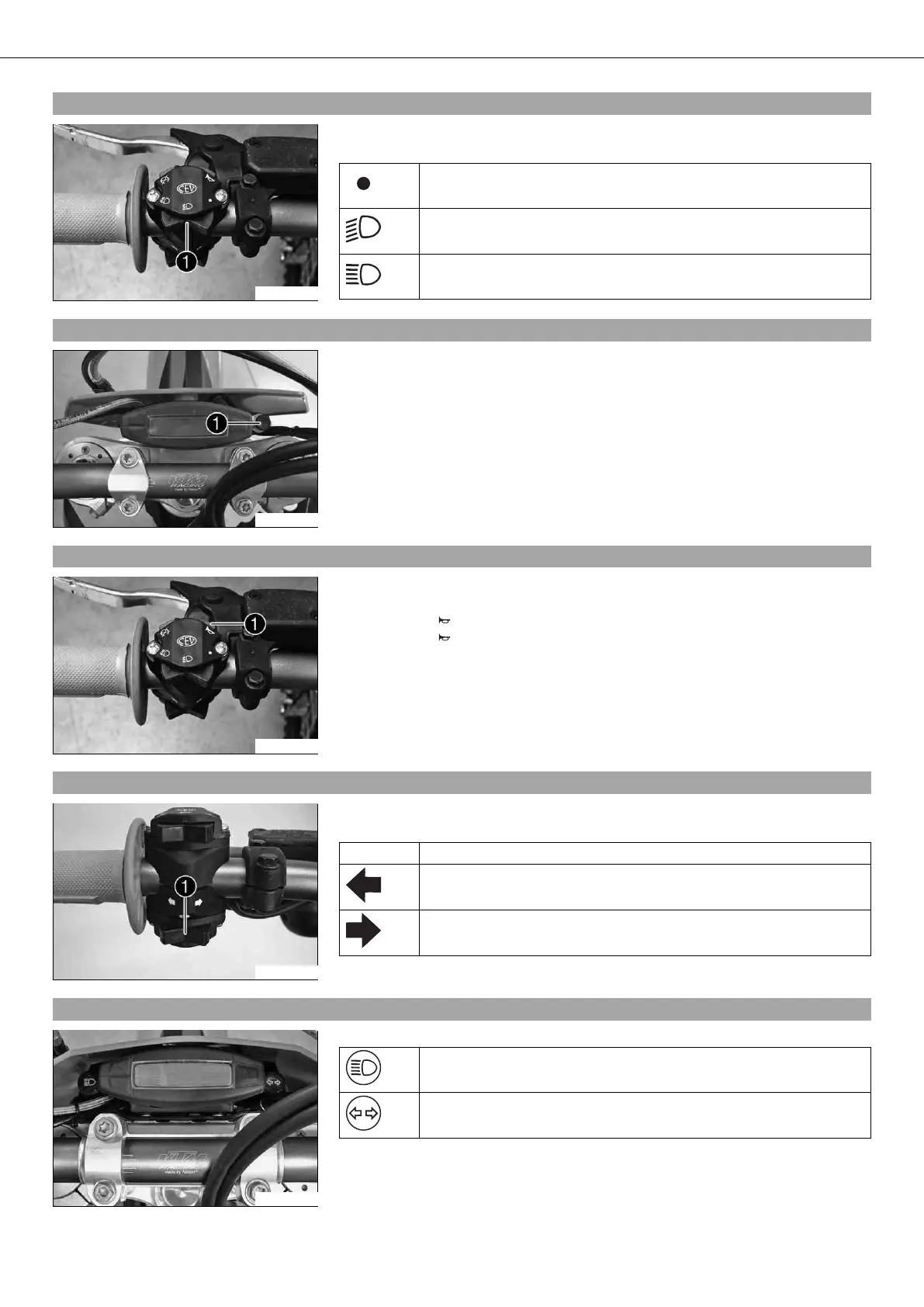

5.6Light switch (250 EXC-F EU)
500134-12
The light switch is fitted on the left side of the handlebar.
Possible states
Light off – Light switch is turned to the right. In this position, the light
is switched off.
Low beam on – Light switch is in the central position. In this position,
the low beam and tail light are switched on.
High beam on – Light switch is turned to the left. In this position, the
high beam and the tail light are switched on.
5.7Light switch (250 XCF‑W USA)
500146-10
The light switch is on the right of the speedometer.
Possible states
• The light switch has no function when delivered. – It can be used if lighting is fit-
ted later.
5.8Horn button (250 EXC-F EU)
500134-11
The horn button is fitted on the left side of the handlebar.
Possible states
• Horn button in neutral position
• Horn button pressed – The horn is operated in this position.
5.9Turn signal switch (250 EXC-F EU)
500145-10
Turn signal is fitted on the left side of the handlebar.
Possible states
Turn signal light off – Turn signal switch is in the central position.
Turn signal light, left, on – Turn signal switch turned to the left.
Turn signal light, right, on – Turn signal switch turned to the right.
5.10Overview of indicator lamps (250 EXC-F EU)
500147-01
Possible states
High beam indicator lamp lights up blue – High beam is switched on.
Turn signal indicator lamp flashes green – Turn signal light is switched
on.
