WARNING
ALL MAINTENANCE AND ADJUSTEMENT OPERATIONS THAT ARE MARKED WITH A
*
REQUIRE SPECIALIST
KNOWLEDGE. FOR YOUR OWN SECURITY, LET THESE TASKS BE CARRIED OUT BY A KTM-DEALER
!
CAUTION
!
–
W
HEN CLEANING THE MOTORCYCLE
,
DO NOT USE A HIGH PRESSURE CLEANING UNIT IF POSSIBLE
,
OTHERWISE WATER WILL PENETRATE THE BEARINGS
,
CARBURETTOR
,
ELECTRIC CONNECTORS ETC.
–W
HEN TRANSPORTING YOUR
KTM, ENSURE THAT IT IS HELD UPRIGHT WITH RESTRAINING STRAPS OR OTHER MECHANICAL FASTENING DEVICES AND THAT THE
FUEL TAP IS IN THE
OFF POSITION - IF THE MOTORCYCLE SHOULD FALL OVER, BE AWARE OF ANY LEAKING FUEL FROM THE CARBURETOR OR FUEL TANK
–DO NOT USE TOOTHED WASHERS OR SPRING RINGS WITH THE ENGINE FASTENING SCREWS
, AS THESE WORK INTO THE FRAME PARTS AND KEEP WORKING LOOSE.
INSTEAD, USE SELF
-LOCKING NUTS.
–LET YOUR MOTORCYCLE COOL DOWN BEFORE BEGINNING ANY MAINTENANCE WORK IN ORDER TO AVOID GETTING BURNED.
–R
EMOVE OILS
, FATTY MATTERS, FILTERS
, FUELS, WASHING DETERGENTS ETC. ORDERLY.
–U
NDER NO CIRCUMSTANCES MAY USED OIL BE DISPOSED OF IN THE SEWAGE SYSTEM OR IN THE OPEN COUNTRYSIZE. 1 LITER USED OIL CONTAMINATES
1.000.000 LITERS WATER.

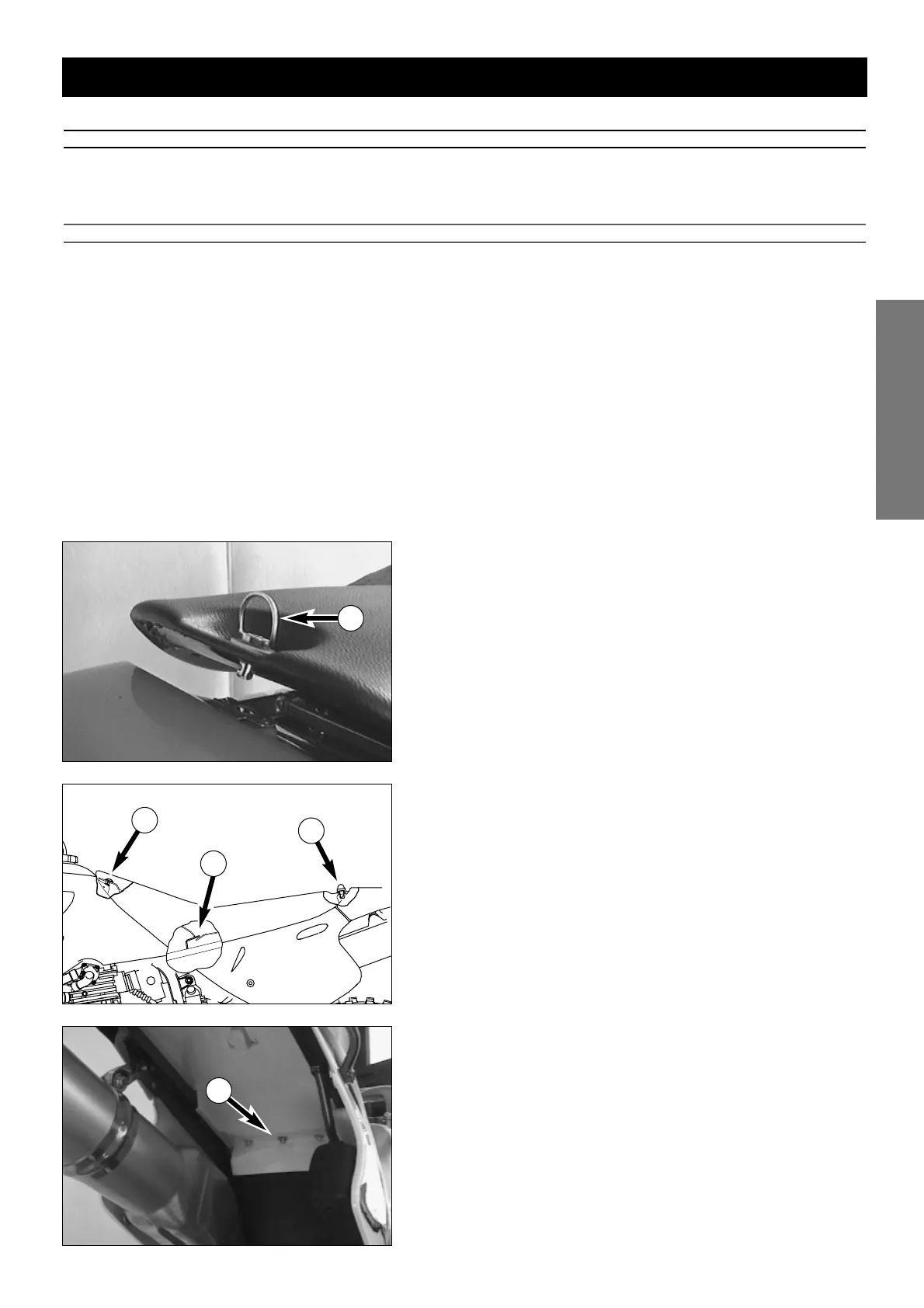

Removal of seat (SX, SC)
By using the quick-release fastener 1, the seat can be removed without using
tools. Turn the quick-release fastener about 180° counter clockwise and lift up
the rear of the seat. Pull the seat backwards and unhook it from the front fastener
screw
2. When installing the seat, be sure to insert the rear portion of the seat
into the metal clasp
3.
Removal of seat (EGS)
Remove the attachment screws 4 from the underside of the fender. Lift the rear
of the seat, pull backwards, and unhook it from the fastener screw
2. To install
the seat, hook the seat into the attachment screw, set the rear portion down on
the frame, and slide it forward. If necessary, press down on the front area of the
seat so that the seat catches on the metal clasp
3. Insert and tighten the attach-
ment screws.
1
2
3
4
