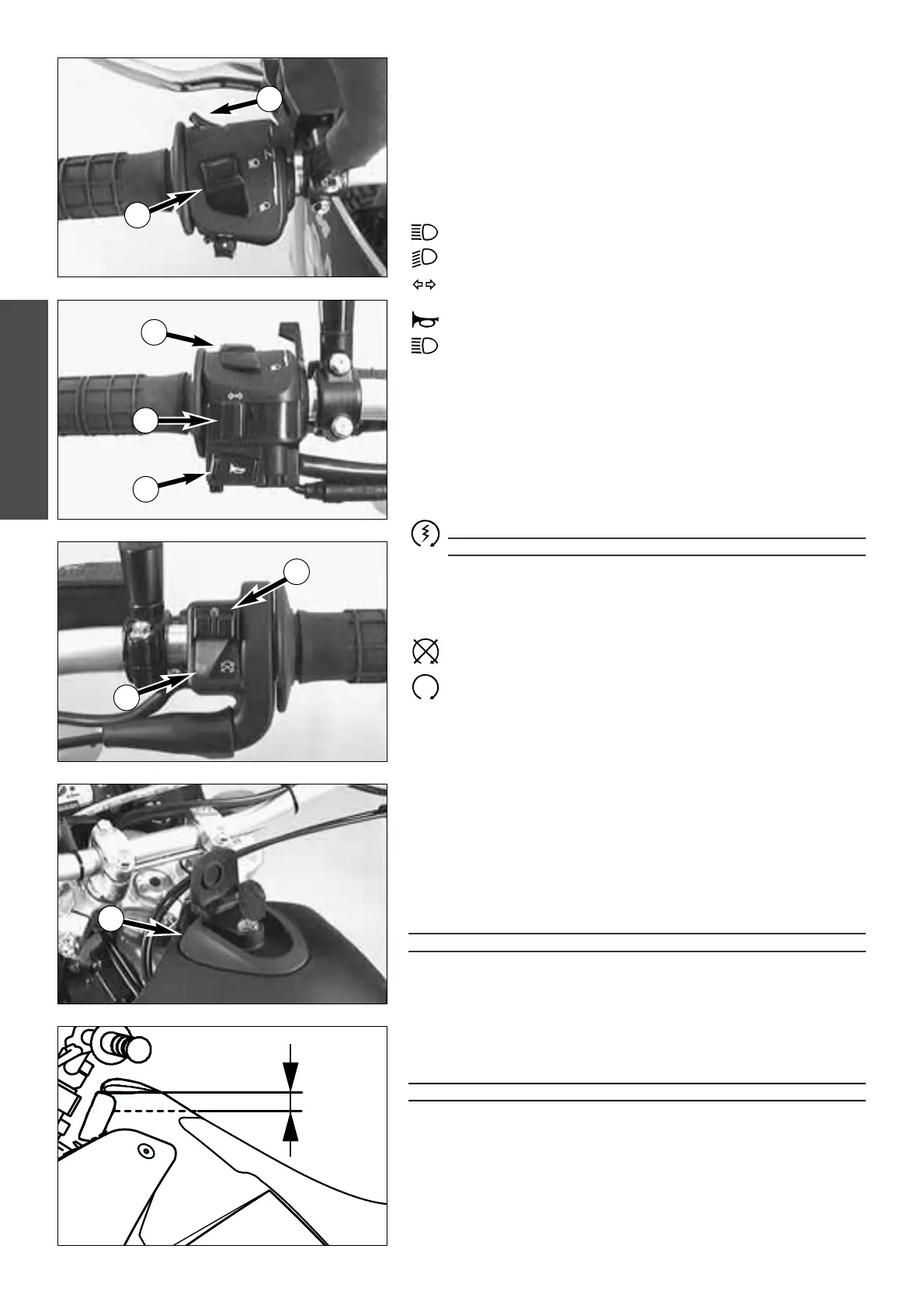

Combination switch
The rocker switch LIGHTS 1 actuates the high beam or low beam.
= High-beam light
= Low-beam light
The indicator switch
2 returns to central position after actuation.
Press flasher switch towards switch housing to switch off the flasher.
The horn is sounded with button
3.
The light signal (high beam) is actuated with button
4.
Starter tip switch, emergency OFF switch
Use the starter tip switch 5 to operate the electric starter.
!
CAUTION
!
M
AXIMUM PERIOD FOR CONTINUOUS STARTING: 5 SECONDS. WAIT AT LEAST
5 SECONDS BEFORE TRYING AGAIN.
The emergency OFF switch
6 is mainly a safety and emergency switch and
should normally be ON.
If this symbol is visible on the switch, the engine can be started
(i.e. the ignition circuit and the starter circuit are switched on).
If this symbol is visible on the switch, the engine can not be started
(i.e. the ignition circuit and the starter circuit are interrupted).
Filler cap
The filler cap
7
can be locked and is provided with a fuel evaporation con-
trol system.
To open the cap insert the ignition key, turn it 90° counterclockwise, then
lift off the filler cap.
To close the tank insert the filler cap, turn the ignition key 90° clockwise
and take out the key.
Fuel
The LC4 engine needs premium gasoline with an octane number of 95
or higher.
!
CAUTION
!
–USE LEADED OR UNLEADED PREMIUM GRADE GASOLINE (95 OCTANES). NEVER USE
ANY GASOLINE HAVING LESS THAN
95 OCTANES BECAUSE IT MAY DAMAGE THE
ENGINE
.
–I
F YOUR MOTORCYCLE IS EQUIPPED WITH A CATALYTIC CONVERTER, ALWAYS KEEP IN
MIND THAT LEADED FUEL WILL DESTROY THE CATALYTIC CONVERTER
. WHETHER OR
NOT YOUR MOTORCYCLE IS EQUIPPED WITH A CATALYTIC CONVERTER IS INDICATED
BELOW THE
KTM LOGO ON THE TYPE LABEL OF THE MUFFLER. ONLY "HGS KAT"
MUFFLERS ARE EQUIPPED WITH CATALYTIC CONVERTERS.
WARNING
GASOLINE IS HIGHLY FLAMMABLE AND POISONOUS. EXTREME CAUTION SHOULD BE USED
WHEN HANDLING GASOLINE
. DO NOT REFUEL THE MOTORCYCLE NEAR OPEN
FLAMES OR BURNING CIGARETTES
. ALWAYS SWITCH OFF THE ENGINE BEFORE REFUELLING.
B
E CAREFUL NOT TO SPILL GASOLINE ON THE ENGINE OR EXHAUST PIPE WHILE THE
ENGINE IS HOT
. WIPE UP SPILLS PROMPTLY. IF GASOLINE IS SWALLOWED OR SPLASHED IN
THE EYES
, SEEK A DOCTOR’S ADVICE IMMEDIATELY.
Fuel expands when its temperature rises. Therefore do not fill the tank to
the top (see fig.).
4
1
1
2
3
5
6
7
