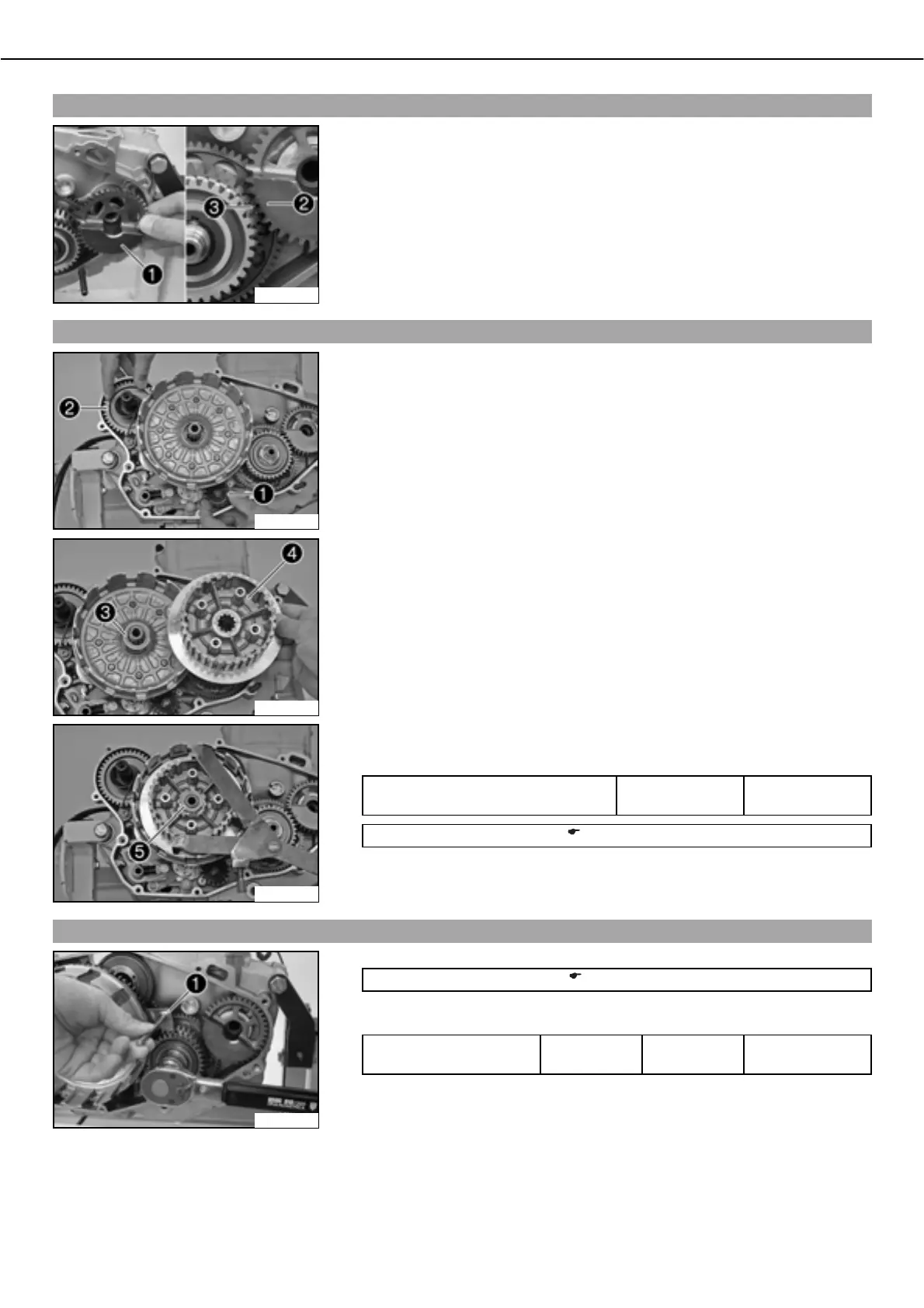

30/ASSEMBLING ENGINE 101
Installing the balancer shaft
200134-11
Check parts for damage and wear. Replace damaged or worn parts.
Slide balancer shaft
into the bearing seats. Align the marking on balance
weight
with the marking on primary pinion.
Installing the outer clutch hub
200097-10
Check parts for damage and wear. Replace damaged or worn parts.
Slide the outer clutch hub onto the main shaft. Turn oil pump gear
and kick-
starter gear
until the gearing of the outer clutch hub engages.
200096-12
Slide on washer and inner clutch hub.
200095-01
Position the new lock washer and mount nut. Fix the inner clutch hub using the
special tool and tighten the nut.
Specification
Nut, inner clutch hub M18x1,5 80Nm
(59.01lbfft)
Clutch holder (51129003000) ( P. 178)
Secure the nut with lock washer.
Insert the pressure piece.
Installing the primary gear nut
200099-11
Block the outer clutch hub and primary gear using special tool.
Gear segment (80029004000) ( P. 183)
Mount and tighten the nut.
Specification
Nut, primary gear M20LHx1,5 150Nm
(110.64lbfft)
Loctite
®
648™
