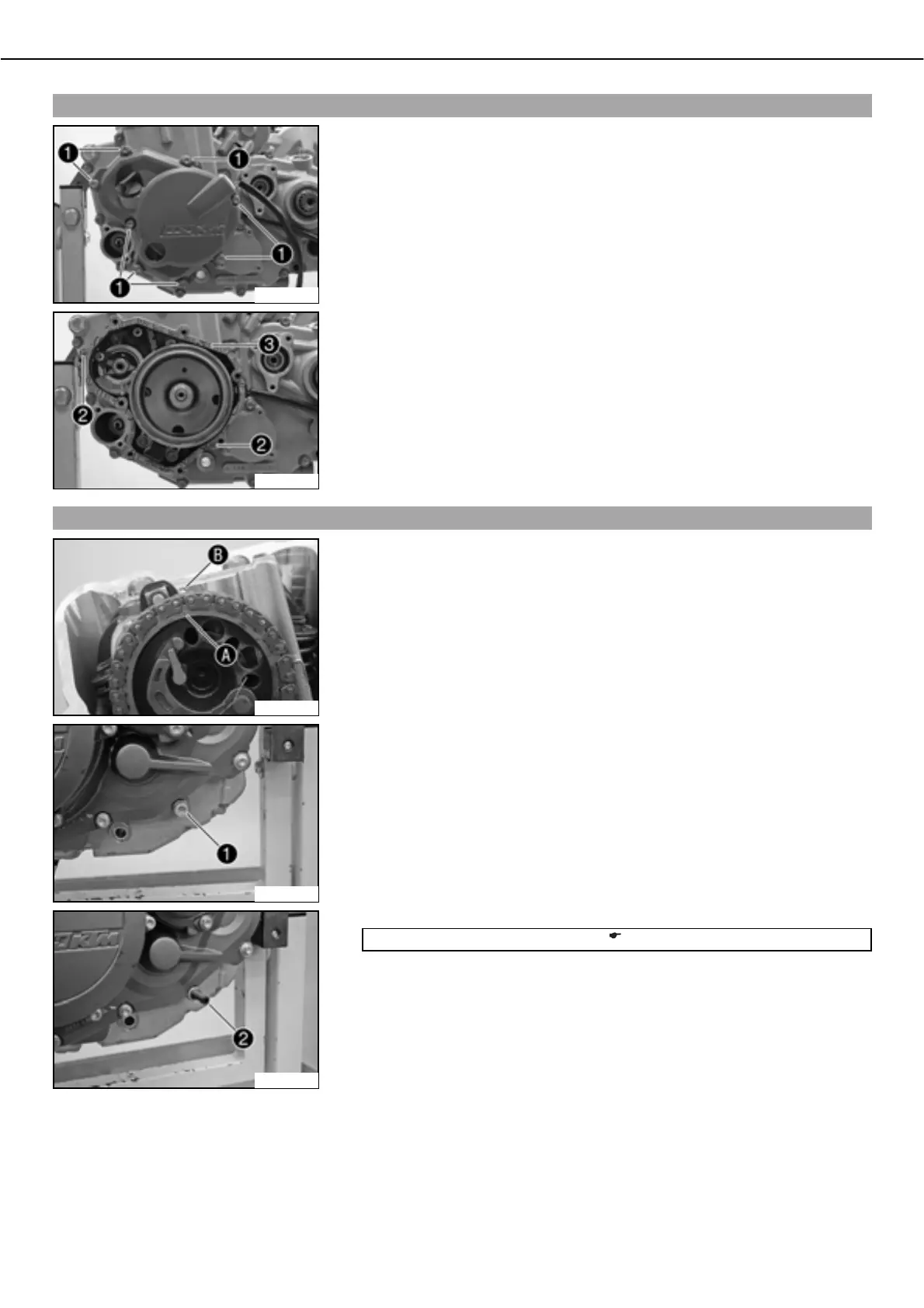

30/DISASSEMBLING ENGINE 61
Removing the generator cover
700011-10
ಥ Remove screws. Take off the generator cover.
700010-10
ಥ Remove centering pins. Take off generator cover seal and dispose of it.
Setting the engine to ignition top dead center
200063-10
ಥ Align camshaft marking with marking on the cylinder head.
200061-10
ಥ Remove screw.
200062-10
ಥ Screw in special tool.
Crankshaft locking bolt (113080802) ( P. 177)

KTM 530 EXC-R EU Specifications

General

Bore x Stroke	95 mm x 72 mm
Transmission	6-speed
Fuel System	Electronic fuel injection
Fuel Tank Capacity	8.5 liters
Starter	Electric starter
Frame	Central double-cradle type 25CrMo4 steel
Rear suspension	WP monoshock
Front brake	Disc brake
Rear brake	Disc brake
Front tire	90/90-21
Rear tire	140/80-18
Engine Type	Single cylinder, 4-stroke
Clutch	Wet multi-disc clutch
Front suspension	WP USD Ø 48 mm
