Kickstarter

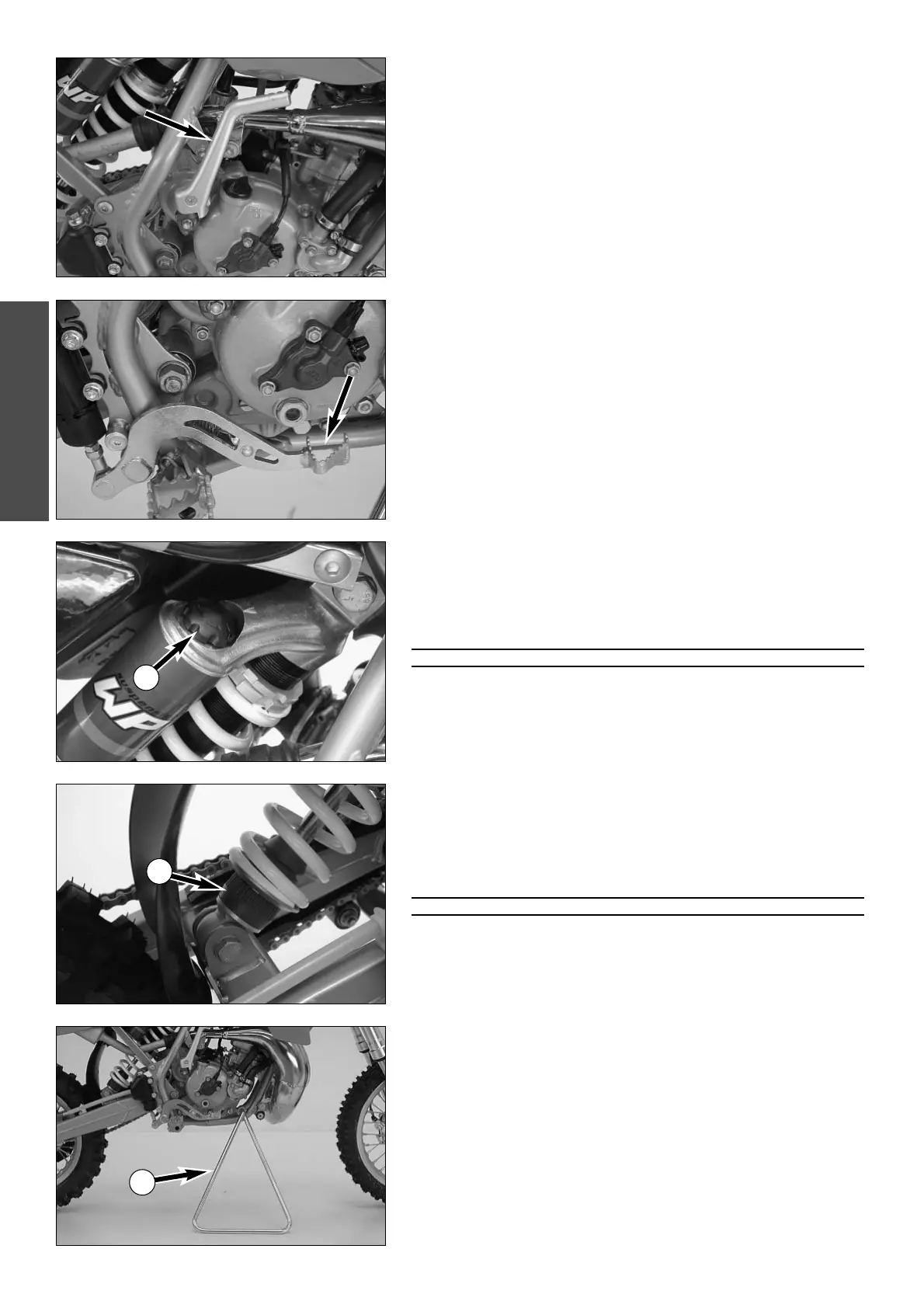

The kickstarter is mounted on the right side of the engine. Its upper part can
be swivelled.
Foot brake pedal
The foot brake pedal is located in front of the right foot rest. Its basic posi-
tion can be adjusted to your seat position (see maintenance work).
Compression damping of shock absorber
The degree of damping of the compression can be adjusted with the knob 1.
Turn the knob counterclockwise to increase damping, turn it clockwise to
reduce damping during rebounding.
STANDARD SETTING: 3
WARNING
THE DAMPING UNIT OF THE SHOCK ABSORBER IS FILLED WITH HIGH COMPRESSED
NITROGEN
. NEVER TRY TO TAKE THE SHOCK ABSORBER APART OR TO DO ANY
MAINTENANCE WORK YOURSELF
. SEVERE INJURIES COULD BE THE RESULT.
Rebound damping function of the shock absorber
The damping effect of the rebound damping mechanism can be adjusted by
levels by means of the setting wheel
2. Turn the setting wheel clockwise
(in) to increase and counterclockwise (out) to reduce the damping effect.
STANDARD SETTING: 6 CLICKS OPEN
WARNING
–N
EVER TURN THE SETTING WHEEL MORE THAN TWO CLICKS BETWEEN TWO TEST RIDES.
–D
O NOT TRY TO DISASSEMBLE THE SHOCK ABSORBER OR TO PERFORM
MAINTENANCE WORK YOURSELF
. DANGER OF INJURY!
Plugin- Stand
A socket is provided on the right side of the frame into which you can plug
the stand 3.
2
3
1
