TUNING THE CHASSIS 10
35
10.13 Adjusting the fork air pressure
Warning
Danger of accidents Modifications to the suspension setting may seriously alter the handling characteris-
tic.
Extreme modifications to the suspension setting may cause a serious deterioration in the handling char-
acteristic and overload components.
– Only make adjustments within the recommended range.
– Make sure your child rides slowly to start with after making adjustments in order that he or she can
assess the new handling characteristic.
Info
Check or adjust the air pressure under the same conditions at the earliest 5 minutes after switching off
the engine.
The air suspension is located in the left fork leg. The rebound damping is located in the right fork leg.
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 38)
F02177-10
Main work
–

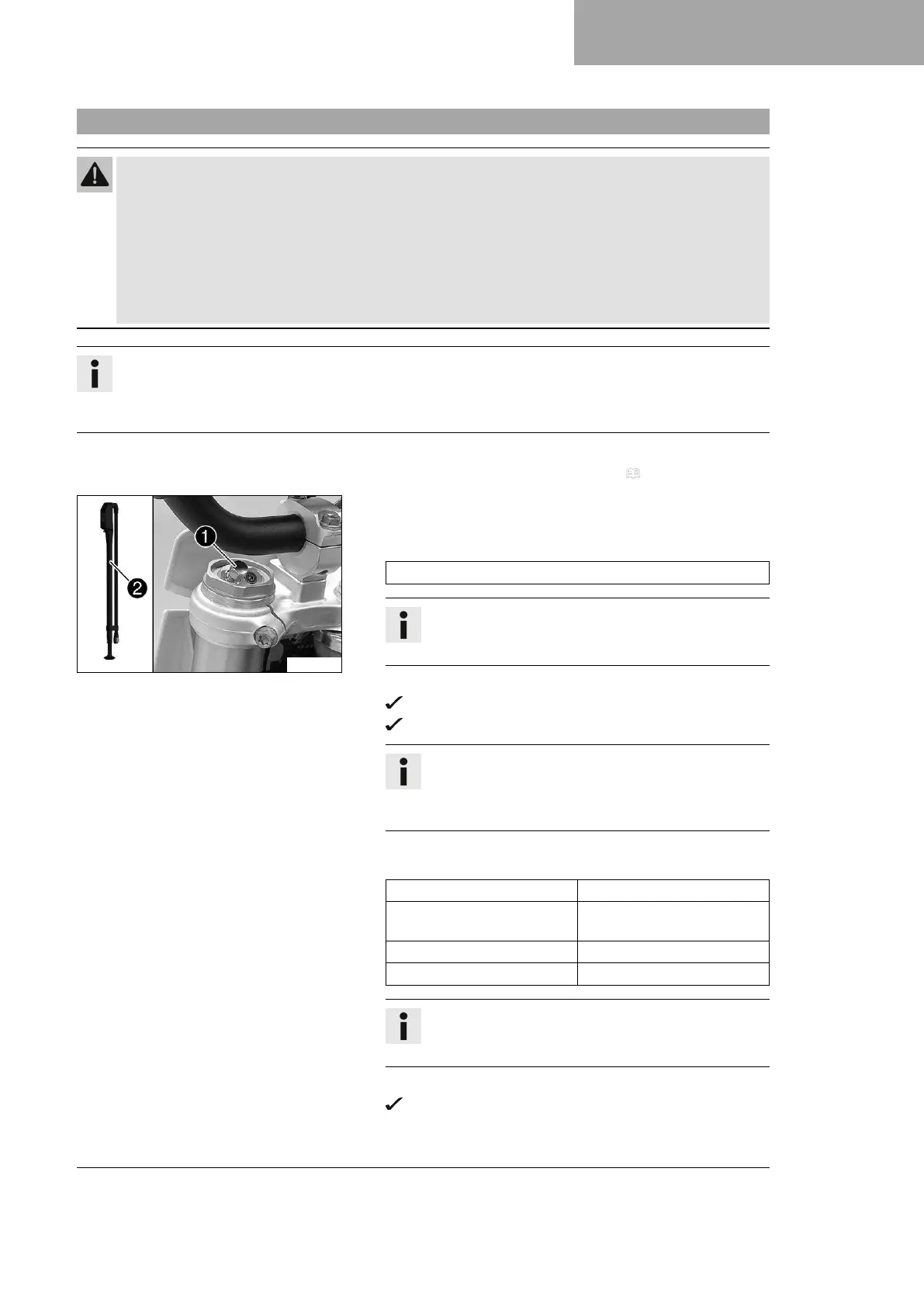

Remove protection cap
1
.
–
Push together fork airpump
2
fully.
Fork airpump (79412966100)
Info
The fork airpump is included as part of the motorcycle's
accessory pack.
– Connect the fork airpump to the left fork leg.
The fork airpump switches on automatically.
A little air escapes from the fork leg when connecting.
Info
This is due to the volume of the hose and not due to a
defect in the fork airpump or the fork.
Read the accompanying KTM PowerParts instructions.
– Adjust the air pressure as specified.
Guideline
Air pressure 3 bar (44 psi)
Gradual changing of the air
pressure in steps of
0.2 bar (3 psi)
Minimum air pressure 1.4 bar (20 psi)
Maximum air pressure 4 bar (58 psi)
Info
Never adjust the air pressure to a value outside the
stated range.
– Disconnect the fork airpump from the left fork leg.
When disconnecting, excess pressure will escape from the
hose – the fork leg does not lose any air.
