14
WHEELS
G03566-
I0
"
•_
) -o
G03564-l0
14.10.9
Changing
the
rear
brake
disc
•
Info

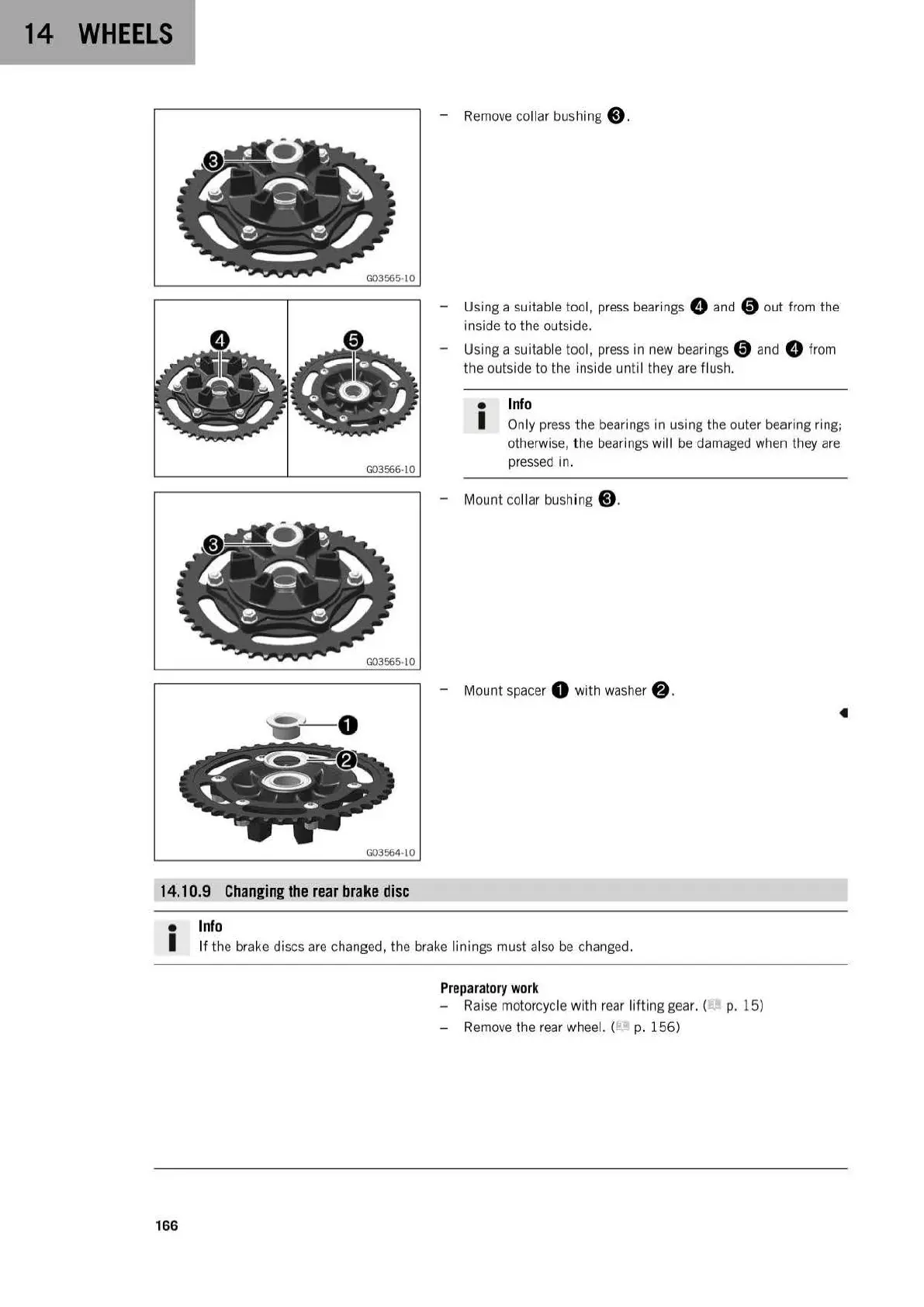

- Remove collar bushing @).
- Using a suitable tool, press bearings C,
and
0 out from the
inside
to
the outside.
- Using a suitable tool, press in new bearings 0 and C, from
the
outside to the i
ns
ide until they are flush.
•
Info
I Only press
the
bea
rings in using the outer bearing ring;
otherwise,
th
e bearings will be damaged when they
are
pressed in.
- Mount collar bushi
ng
@).
- Mou
nt
spacer O with washer 8 .
I If the brake discs are changed, the br
ake
linings must also
be
changed.
Preparatory
work
- Raise motorcycle with rear
lifting
gear. ( p.
15)
- Remove the rear wheel. (
b.::
p.
156)
166
