3 WORK 5

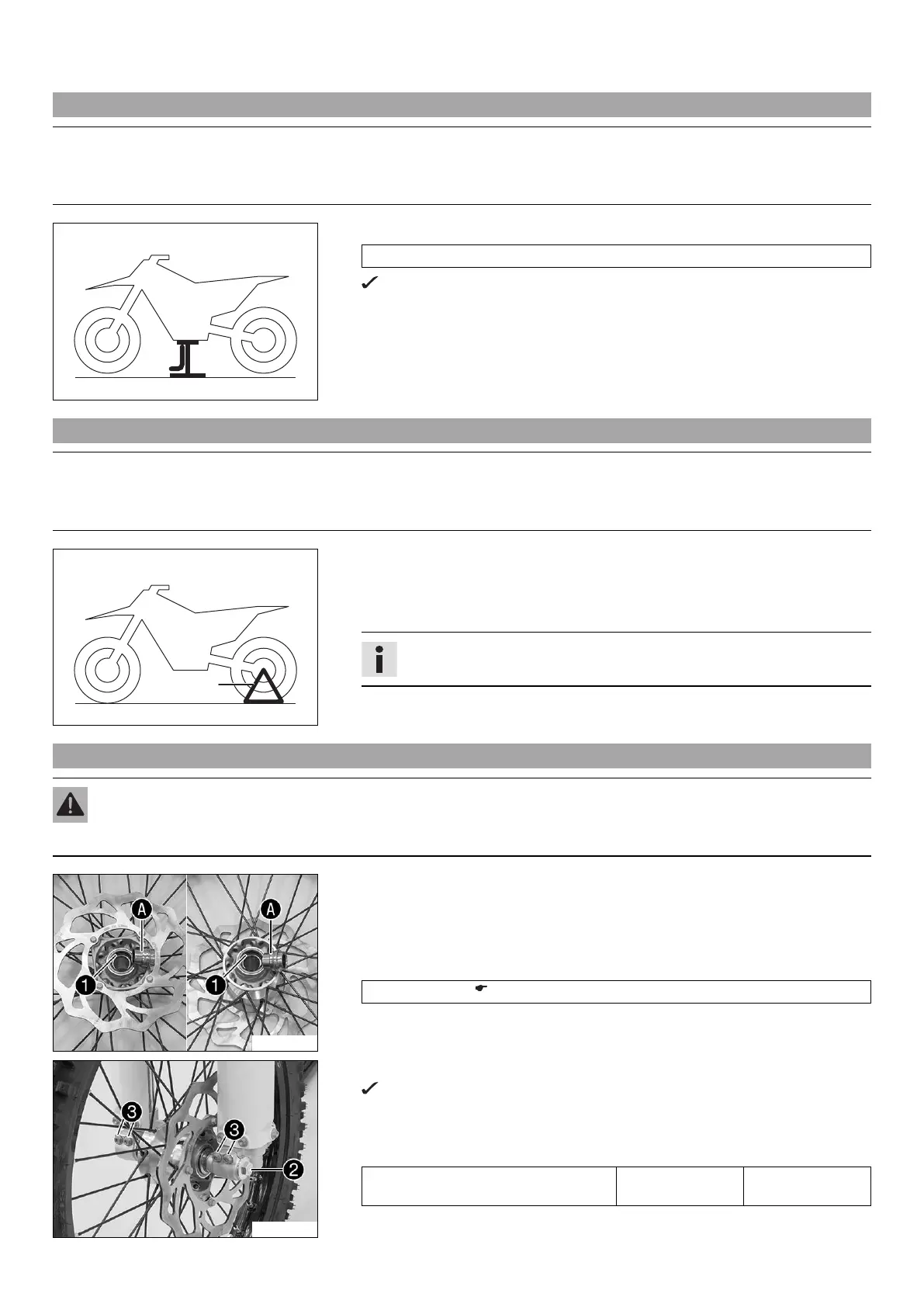

3.1 Raising the motorcycle with the lift stand
Note
Danger of damage The parked vehicle may roll away or fall over.
– Always place the vehicle on a firm and even surface.
401942-01
– Raise the motorcycle at the frame underneath the engine.
Lift stand (78929955100)
Neither wheel is in contact with the ground.
– Secure the motorcycle against falling over.
3.2 Removing the motorcycle from the lift stand
Note
Danger of damage The parked vehicle may roll away or fall over.
– Always place the vehicle on a firm and even surface.
402001-10
– Remove the motorcycle from the lift stand.
– Remove the lift stand.
–
To park the motorcycle, insert plug-in stand
into the left side of the wheel spin-
dle.
Info
Remove the plug-in stand before riding.
3.3 Installing the front wheel
Warning
Danger of accidents Reduced braking efficiency due to oil or grease on the brake discs.
– Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.
M01094-11
Main work
– Check the wheel bearing for damage and wear.
» If the wheel bearing is damaged or worn:
– Change the front wheel bearing.
–
Clean and grease shaft seal rings
and bearing surface
of the spacers.
Long-life grease ( p. 10)
– Insert the spacers.
M01093-11
– Position the front wheel.
The brake linings are correctly positioned.
– Insert wheel spindle.
–
Mount and tighten screw
.
Guideline
Screw, front wheel spindle M20x1.5 35 Nm
(25.8 lbf ft)
