WHEELS, TIRES 15

281

A00679-10

–

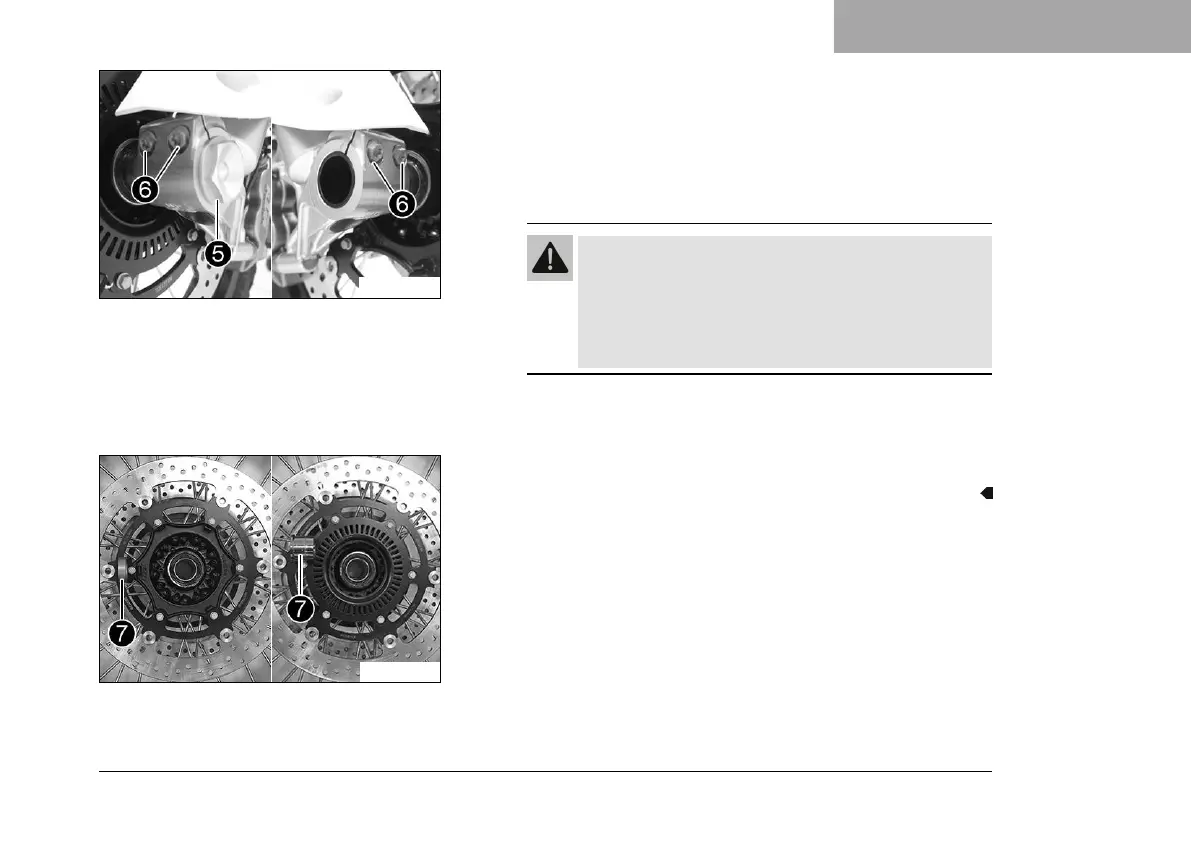

Loosen screw

by several rotations.

–

Loosen screws

–

Press on screw

to push the wheel spindle out of the

axle clamp.

–

Remove screw

Warning

Danger of accidents Damaged brake discs reduce

the braking effect.

– Always lay the wheel down in such a way that

the brake discs are not damaged.

– Hold front wheel and remove wheel spindle. Take the front

wheel out of the fork.

F01964-10

–

Remove spacers
