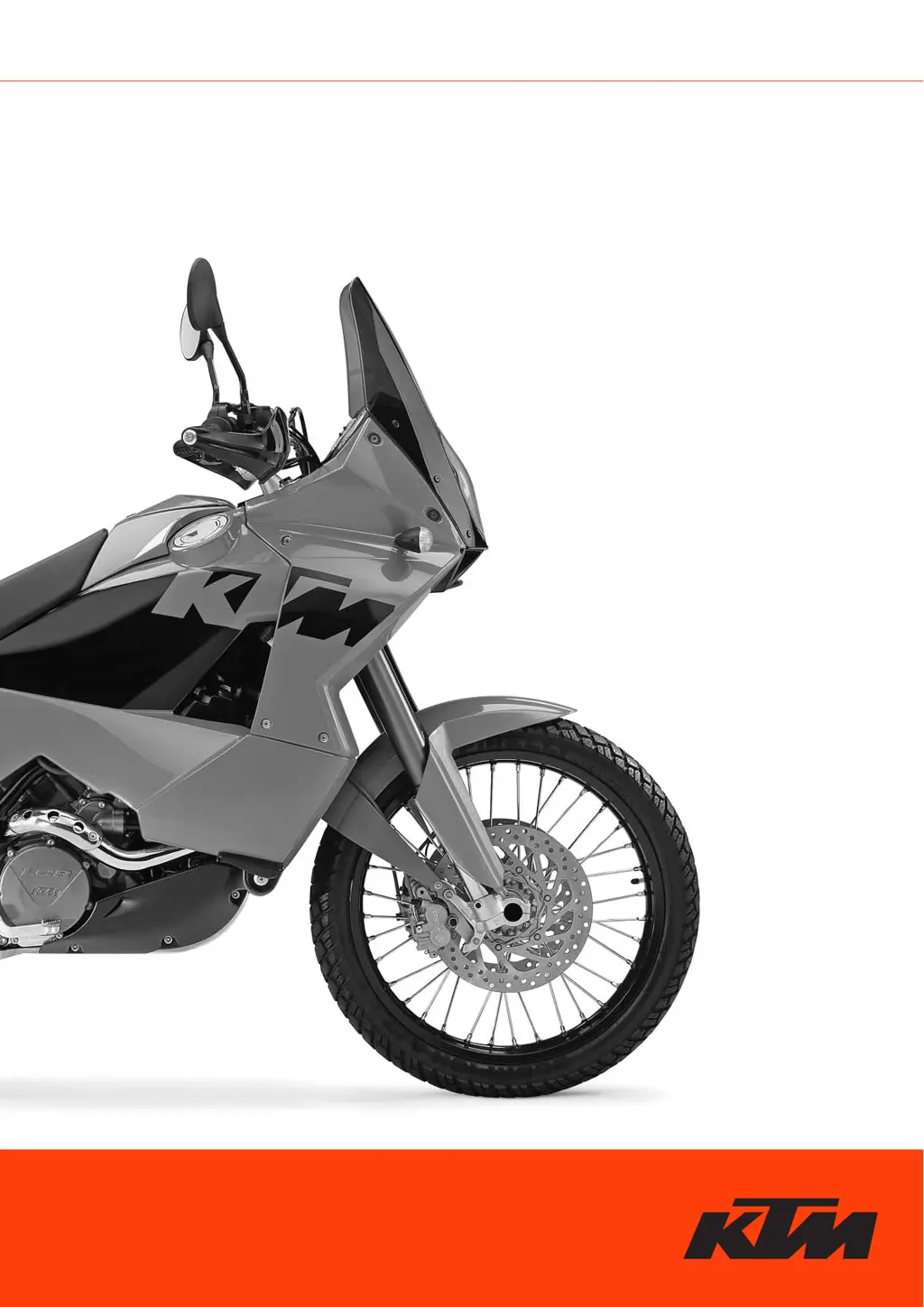

KTM 950 ADVENTURE 2006 User Manual (English)

Questions and Answers:

R
Robert FarmerAug 17, 2025
What to do if my KTM Motorcycle engine does not start when I push the starter button?
- R
  Robert SchaeferAug 17, 2025
  If your KTM Motorcycle engine fails to start when you press the starter button, possible causes include an operating error, a discharged battery, or a blown fuse. Ensure the ignition is on, the gear is in neutral, and the emergency OFF switch is activated. If the battery is discharged, recharge it, and investigate the cause of the discharge. Replace the blown IGNITION fuse or the main fuse in the starter relay. If the issue persists, the ignition lock, emergency OFF switch, or safe-starting system might be defective, requiring assistance from an authorized KTM workshop.
J
jimmy17Aug 19, 2025
Why does my KTM Motorcycle engine crank but not start?
- T
  tylerburgessAug 20, 2025
  If your KTM Motorcycle engine cranks but doesn't start, it could be due to an operating error, a blown fuel pump fuse, or an oxidized plug and socket connector on the wiring harness. Ensure the fuel taps are open, there is fuel in the tank, and you've followed the correct starting procedure. Replace the fuel pump fuse. Clean the plug and socket connector on the wiring harness and spray with contact spray.
J
Julie RobinsonAug 22, 2025
What to do if my KTM 950 ADVENTURE 2006 Motorcycle engine stalls while driving?
- B
  Brenda MillerAug 22, 2025
  If your KTM Motorcycle engine stalls while driving, check for the following potential issues. First, ensure that you have enough fuel and that the fuel taps are open. Also, inspect the fuses: replace the fuel pump fuse if it has blown and replace the ACC2 fuse. The carburetor may be icing.
D
Dakota MunozAug 25, 2025
Why won't my KTM 950 ADVENTURE 2006 engine reach full power?
- J
  John WilliamsAug 26, 2025
  If your KTM Motorcycle engine won't reach full power, it could be due to a partially interrupted fuel supply, leaking carburetors, a very dirty air filter or the wrong ignition curve being activated. Check the fuel taps and fuel lines for any kinks. Inspect the vacuum and venting hoses of the carburetors for correct positioning. If you are using fuel with at least RON 95 (USA = Premium RON 91), activate the ignition curve for 95 octane.
J
Justin WeaverAug 28, 2025
What to do if my KTM Motorcycle engine overheats?
- A
  Ann RuizAug 28, 2025
  If your KTM Motorcycle engine overheats, first check the cooling liquid level and refill if necessary, also inspect the cooling system for leaks. Ensure the radiator fins are clean. If foam is forming in the cooling system, replace the cooling liquid with a brand-name antifreeze. Also, check if the radiator hose is kinked or damaged. Replace the fuse FAN if it has blown.
J
Jessica SmithAug 30, 2025
Why is my KTM 950 ADVENTURE 2006 Motorcycle battery discharged?
- J
  John MartinezAug 30, 2025
  Your KTM Motorcycle battery may be discharged if the ignition (power consumer) hasn’t been switched off. Recharge the battery according to the relevant instructions. The battery might not be charging because of a generator issue.
C
christina15Sep 2, 2025
What to do if the headlight and position light fail on my KTM 950 ADVENTURE 2006 Motorcycle?
- J
  Jose MooreSep 2, 2025
  If the headlight and position light fail on your KTM Motorcycle, first check if the bulb is burned out and replace it if necessary. If the bulb is not the issue, check the fuse and replace the H/L BEAM POSITION fuse.
M
Mary JohnsonSep 5, 2025
What to do if the flasher lights, brake light, horn and multi-functional digital speedometer fail on my KTM Motorcycle?
- T
  tonypatelSep 5, 2025
  If the flasher lights, brake light, horn, and multi-functional digital speedometer fail on your KTM Motorcycle, begin by checking the bulb and replacing it if necessary. If the bulb is not the issue, check the fuse and replace the HORN BRAKELIGHT SPEEDO fuse.
M
Marc WardSep 7, 2025
Why does my KTM 950 ADVENTURE 2006 Motorcycle have high oil consumption?
- A
  Amber SnowSep 8, 2025
  High oil consumption in your KTM Motorcycle can be due to the engine oil level being too high or the engine oil being too thin. Check the engine oil level when the engine is warm and correct it if necessary. If the oil is too thin, use a thicker engine oil.
J
John SmithSep 12, 2025
What to do if my KTM Motorcycle engine only cranks with the clutch lever pulled?
- J
  Jill PottsSep 12, 2025
  If your KTM Motorcycle engine only cranks when the clutch lever is pulled, it's likely because a gear is engaged. Shift the transmission to neutral.

KTM 950 ADVENTURE 2006 Specifications

General

Engine Type	V-twin, 4-stroke
Displacement	942 cc
Power	98 hp (72 kW) @ 8000 rpm
Transmission	6-speed
Fuel System	Electronic fuel injection
Rear Suspension	WP monoshock
Bore x stroke	100 x 60 mm
Compression ratio	11.5:1
Cooling system	Liquid cooled
Final drive	Chain
Front tire	90/90-21
Rear tire	150/70-18
Torque	95 Nm @ 6000 rpm
Front Suspension	WP USD 48 mm
Fuel Capacity	22 liters
Wheelbase	1570 mm

Summary

Important Information

Safety Warnings and Notices

Highlights critical warnings and cautions for safe operation and maintenance.

Warranty and Guarantee Information

Operation Instruments

Clutch Lever Operation

Hand Brake Lever Operation

Multi-functional Digital Speedometer

Overview of the digital speedometer and its components.

Speedometer Display Modes

Explanation of different display modes: WS, Clock, ODO, Trip 1, Trip 2, Trip F.

Cooling Liquid Temperature Display

Indicator Lamps Overview

Tachometer Operation

Ignition Lock Operation

Combination Switch Operation

Switches: Emergency OFF, Light, Starter

Functionality of emergency OFF, light switch, and starter tip switch.

Shock Absorber Preload Adjuster

Using the shock absorber preload adjuster for load adaptation.

General Tips and Warnings for Starting

Initial Operation Instructions

Steps for first-time operation, including checking numbers and controls.

LC8 Engine Running-In Procedure

Guidelines for properly running in the LC8 engine for optimal life.

Safety Gear and Driving Practices

Essential safety advice on clothing, alcohol, lighting, and tire safety.

Tire Specifications and Handling

Information on tire speed ratings, running-in, and handling characteristics.

Accessories and Payload Guidelines

Driving Instructions

Pre-Ride Checks

Comprehensive checklist of items to inspect before every ride.

Starting Engine Cold

Step-by-step guide for starting the engine when cold.

Starting Engine Warm or Hot

Step-by-step guide for starting the engine when warm or hot.

Starting Off Procedure

How to start moving from a standstill, including clutch and throttle control.

Shifting and Riding Techniques

Guidance on shifting gears, acceleration, deceleration, and cornering.

Braking Techniques

Proper braking techniques, including emergency braking and surface conditions.

Stopping and Parking Procedures

Steps for safely stopping the motorcycle and parking it securely.

Fueling Instructions

Information on fuel type, tank capacity, and safe refueling practices.

Periodic Maintenance Schedule

Scheduled Maintenance: Engine and Carburetor

Scheduled Maintenance: Brakes and Chassis

Scheduled Maintenance: Wheels

Vital Checks and Care Procedures

Routine checks by owner/mechanic: oil, fluid levels, lights, tires, chain.

Maintenance Work: Chassis and Engine

General Maintenance Precautions

Essential warnings and cautions for performing maintenance work safely.

Fork and Shock Absorber Adjustment Guide

Table and guidance for adjusting fork and shock absorber settings.

Fork Compression Damping Adjustment

Procedure to adjust fork compression damping for optimal ride feel.

Fork Rebound Damping Adjustment

Procedure to adjust fork rebound damping for optimal ride feel.

Fork Spring Preload Adjustment

How to adjust fork spring preload based on rider weight and load.

Shock Absorber Compression Damping Adjustment

How to adjust shock absorber compression damping for ride style.

Shock Absorber Rebound Damping Adjustment

How to adjust shock absorber rebound damping for ride style.

Shock Absorber Preload Adjustment

How to adjust the shock absorber preload for load adaptation.

Checking Chain Tension

Correct Chain Tension

KTM Disc Brake General Information

Brake Fluid Type and Replacement

Front Brake Fluid Level Check

Refilling Front Brake Fluid Reservoir

Front Brake Pad Check

Rear Brake Fluid Level Check

Refilling Rear Brake Fluid Reservoir

Rear Brake Pad Check

Front Wheel Dismounting and Mounting

Step-by-step guide for removing and reinstalling the front wheel.

Rear Wheel Dismounting and Mounting

Step-by-step guide for removing and reinstalling the rear wheel.

Tire Pressure Checks and Specifications

Recommended tire pressures for various riding conditions.

Battery Demounting and Mounting

Battery Charging Procedures

Instructions for safely charging the motorcycle battery.

Connecting Battery Jumper Cables

Cooling System Overview

Checking Compensating Tank Coolant Level

Checking Radiator Coolant Level

Bleeding the Cooling System

Hydraulic Clutch Oil Level Check

Throttle Cable Play Check and Adjustment

Engine Idle Speed Adjustment

Engine Oil Specifications

Engine Oil Level Check

Engine Oil and Filter Change

Detailed steps for changing the engine oil and oil filter.

Ignition Curve for Low-Octane Fuel

Trouble Shooting

Engine Start Troubleshooting

Diagnosing and resolving issues when the engine fails to start.

Engine Cranking Troubleshooting

Troubleshooting when the engine cranks but does not start.

Engine Overheating Troubleshooting

Identifying causes and solutions for engine overheating.

Engine Stalling Troubleshooting

Diagnosing reasons for the engine stalling while driving.

High Oil Consumption Troubleshooting

Lighting and Speedometer Failures

Battery Discharge Troubleshooting

Resolving problems related to battery discharge and charging.

Storage Procedures

Technical Specifications: Chassis

Chassis Components and Dimensions

Fork and Shock Absorber Adjustment Settings

Chassis Tightening Torques

Technical Specifications: Engine

Engine General Specifications

Basic Carburetor Settings
