2 SETUP
4

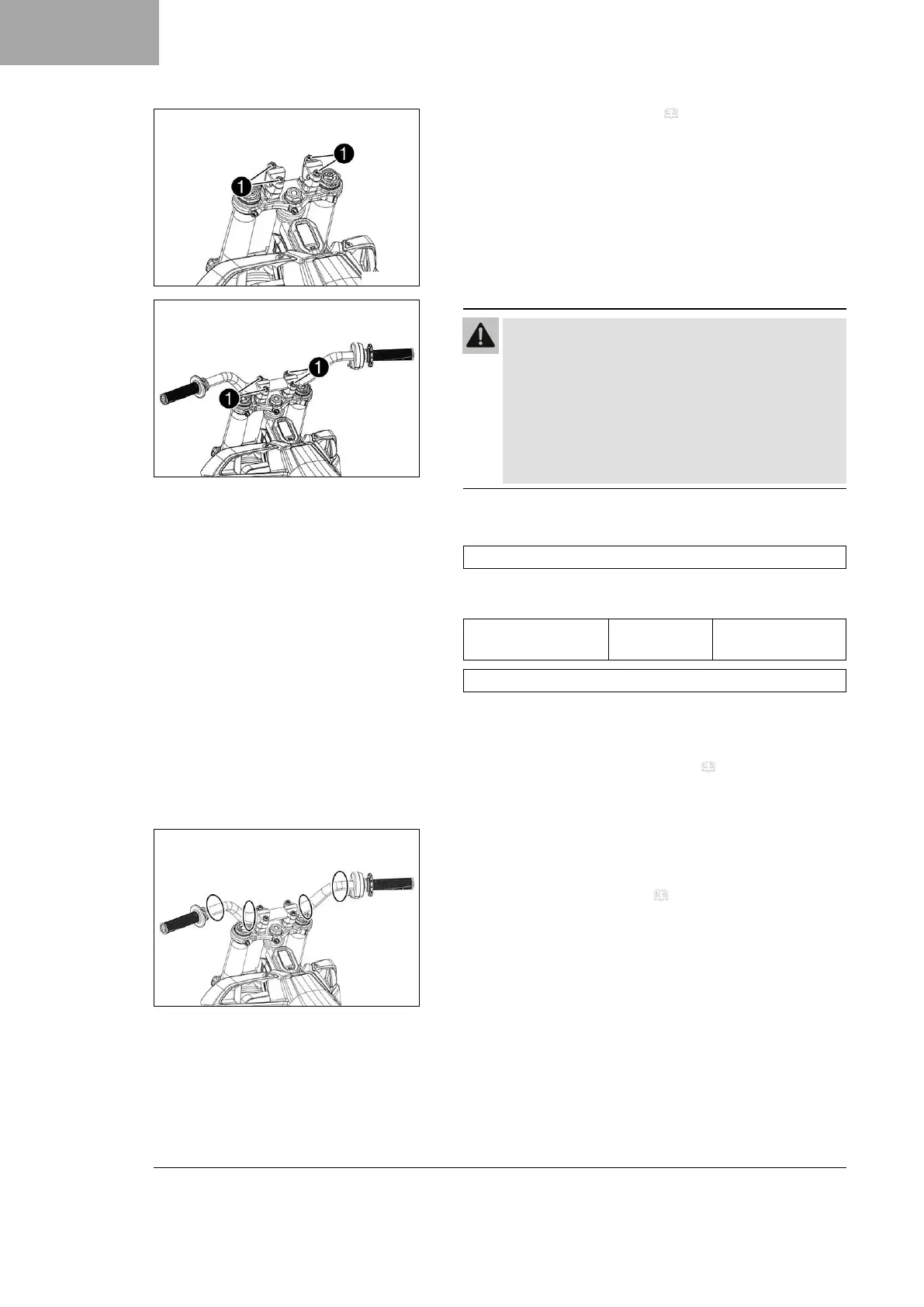

M01755-10
– Remove the start number plate. ( p. 6)
–
Remove screws
1
and handlebar clamps.
– Remove the protective film from the handlebar.
M01756-10
Warning
Danger of accidents A repaired handlebar poses a
safety risk.
If the handlebar is bent or straightened, the mate-
rial becomes fatigued. The handlebar may break as a
result.
–
Change the handlebar if the handlebar is damaged
or bent.
– Position the handlebar with handlebar clamps.
Guideline
Make sure the cables and wiring are positioned correctly.
–
Mount and tighten screws
1
.
Guideline
Screw, handlebar
clamp
M8 20 Nm (14.8 lbf ft)
Make sure the installed gaps are even.
– Check the handlebar position.
» If the handlebar position is not adjusted as required by the
customer:
– Adjust the handlebar position. ( p. 6)
– Check that the controls on the handlebar are correctly posi-
tioned and firmly seated.
M01818-10
– Secure the cables of the magnetic switch and the throttle grip
to the handlebars with two cable ties each.
– Secure the handlebar cushion with two cable ties.
– Install the start number plate. ( p. 7)
