Kuat NV BASE 2.0 - Mount and Secure Pivot Lever

5

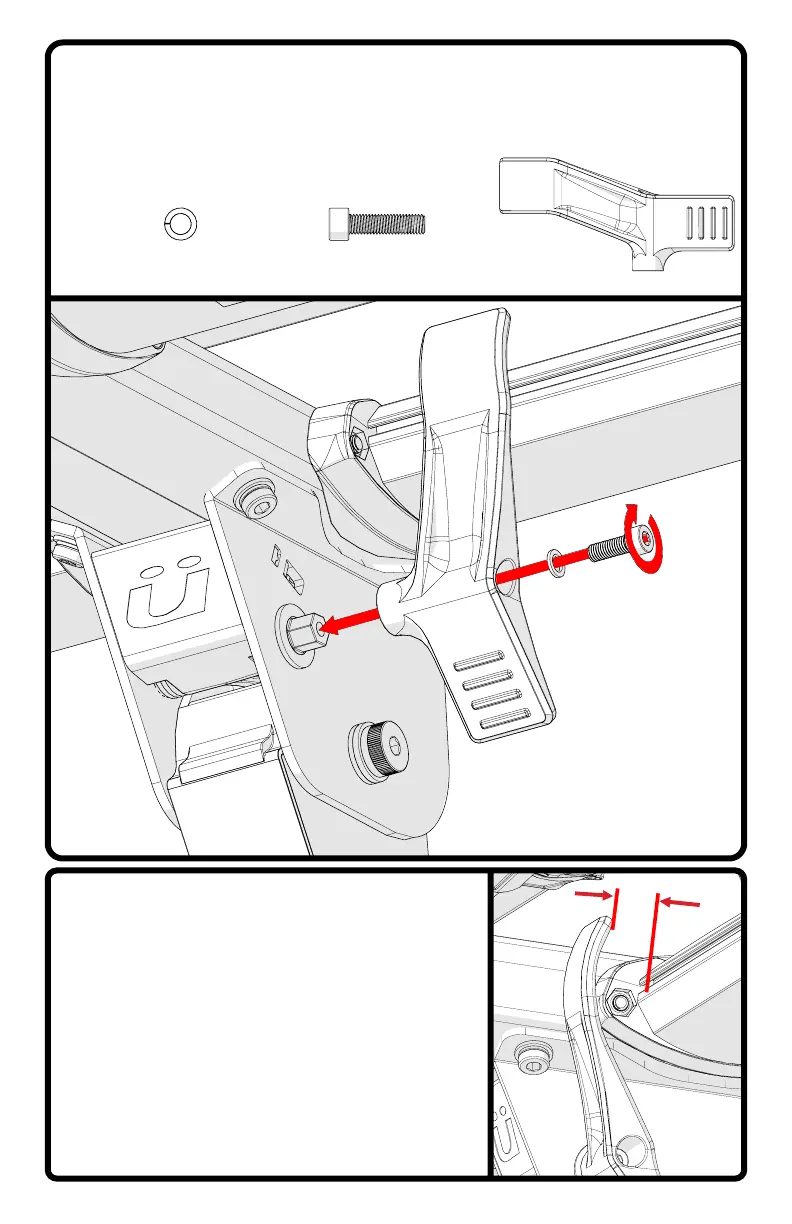

STEP 3. Press the pivot lever onto the
corresponding keyed shaft. Then tighten the bolt
with the lock washer to secure the pivot lever.
Parts Needed:
Pivot Lever
NOTE: When positioning the
pivot lever there should be about
1in(25.4mm) of space between
the lever and the tray.
M8 Lock Washer
M8x45 Bolt
NOTE. When positioning the
pivot lever there should be about
1in (25.4mm) of space between
the lever and the tray.
