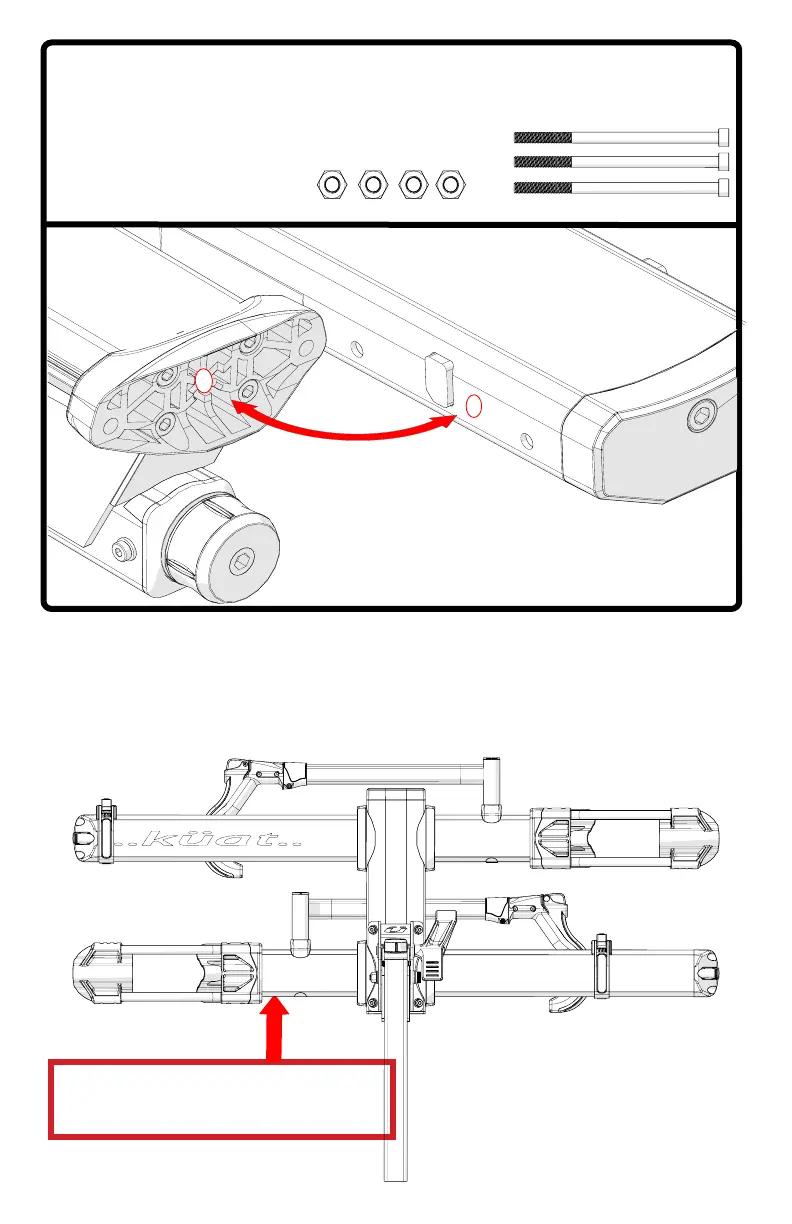

STEP 2. Align the trays with the holes on the cen-
ter-beam by matching the coordinating labels. Then
alternate between bolts to tighten.
3x M8x160 Bolts
4x M8 Nut
Parts Needed:
A
A
NOTE: The trays with the “..Küat..” Logo will be
farthest from the hitch. Performing this step with the
rack upside down will ease assembly.
NOTE:
This tray has the M8x160
bolt pre-installed.
STEP 1. Align the trays with the holes on the center
beam by matching the coordinating labels.
Alternate between bolts to tighten.
To Next Page
