Operating instructions
Electronic display counter
CCOODDIIXX 552211,, 552222,, 552233
and
552244
1.1 Safety instructions and warnings
Only use this display
– in a way according to its intended
purpose
– if its technical condition is perfect
– adhering to the operating
instructions and the general
safety instructions.
1.2 General safety instructions
1. Before carrying out any installation or mainte-
nance work, make sure that the power supply
of the digital display is switched off.
2. Only use this digital display in a way according
to its intended purpose:
If its technical condition is perfect.
Adhering to the operating instructions and the
general safety instructions.
3. Adhere to country or user specific regulations.
4. The digital display is not intended for use in
areas with risks of explosion and in the
branches excluded by the standard EN 61010
Part 1.
5. The digital display shall only operated if it has
been correctly mounted in a panel, in accor-
dance with the chapter “Technical features”.
1.3 Use according to the intended
purpose
The digital display may be used only as a panel-
mounted device. Applications of this product may
be found in industrial processes and controls, in
manufacturing lines for the metal, wood, plastics,
paper, glass, textile and other processing indus-
tries.
Over-voltages at the terminals of the digital dis-
play must be kept within the limits in Category II
If the digital display is used to monitor machines
or processes in which, in case of a failure of the
device or an error made by the operator, there
might be risks of damaging the machine or caus-
ing accidents to the operators, it is your responsi-
bility to take appropriate safety measures.
1.4 Description
CCOODDIIXX 552211
Please note: Read first chapter 2 of CODIX 524
and go on on page 2.
CCOODDIIXX 552222
Please note: Read first chapter 2 of CODIX 524
and go on on page 4.
CCOODDIIXX 552233
Please note: Read first chapter 2 of CODIX 524
and go on on page 6.
CCOODDIIXX 552244
CODIX 524 is a multipurpose device. Depending on
the programmed basic function, the device oper-
ates like
• the pulse counter CODIX 521 (see page2) or
• the frequency meter CODIX 522 (see page 4) or
• the time meter CODIX 523 (see page 6)

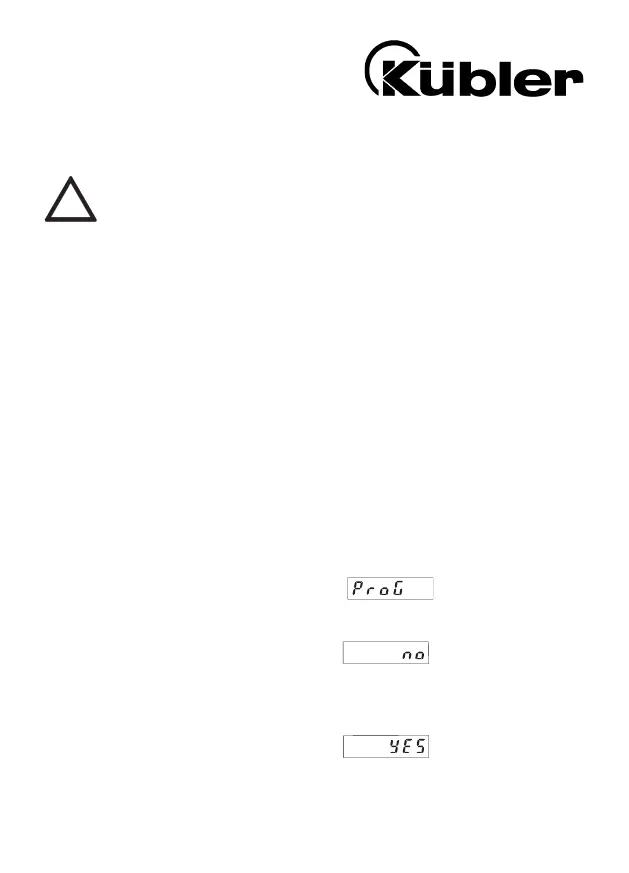

2. Setting of the operating parameters
a. Press both front side keys keys and switch on
the supply voltage or, if the supply voltage is
already on, press both keys simultaneously
during 5 s.
b. The display shows
c. After releasing the keys, the display shows
c1.Hold the left key pressed and press the right
key to leave the programming operation.
c2.Press the right key to switch to
.
