Count frequency
CCOODDIIXX
521:
Power supply DC: 24 V 12 V 10 ...30 V
Input level: Standard 5V
typ. Low Level: 2,5 V 2,0 V 1,0 V
typ. High Level: 22,0 V 10 V 4,0 V
Fmax*: kHz kHz kHz
CntDir 60 20 8
UpDown 25 15 8
Up.Up 25 15 8
Quad1 25 15 8
Quad2 25 15 8
Quad4 15 15
Count frequency
CCOODDIIXX
522:
Frequency measurement
Accuracy <0.1 %
Measuring principle:
<
38 Hz: period measurement
> 38 Hz: gating time measurement
gating time 26,3 ms
Power supply DC: 24 V 12 V 10 ...30 V
Input level: Standard 5V
typ. Low Level: 2,5 V 2,0 V 1,0 V
typ. High Level: 22,0 V 10 V 4,0 V
Fmax*: kHz kHz kHz
Tacho 60 20 8
Counting ranges
CCOODDIIXX
523:
Seconds 0.001 s ... 999 999 s
Minutes 0.001min ... 999 999 min
Hours 0.001 h ... 999 999 h
h.min.s 00 h 00 min 01 s
... 99 h 59 min 59 s
Accuracy <50 ppm
Minimum pulse length for the Reset input:
5 ms
Input sensitivity:
Standard sensitivity: Low: 0 ... 0,2 x U
B
[V DC]
High: 0,6 x UB ... 30 V DC
5 V sensitivity: Low: 0 ... 2 V DC
High: 4 ... 30 V DC
Pulse shape: any*, Schmitt-Trigger inputs
Optocoupler output (optional):
NPN optocoupler with open collector and open
emitter; max. switching performance:
30 V DC/10 mA
* at maximum frequency square wave pulses 1:1
Ambient temperature:
–20 ...+65 °C
Storage temperature:
–25 ... +70 °C
EMC:
In compliance with the EC Directive 2004/108/EEC
Noise emission EN 61 000-6-3
EN 55 011 Class B
Noise immunity EN 61 000-6-2
Housing:
For front panel mounting: 48 x 24 mm
acc. to DIN 43700, RAL7021, dark grey
Weight: appr. 50 g
Protection: IP 65 (front)
Cleaning:
The front of the units is to be cleaned only with a
soft wet (water !) cloth.
8

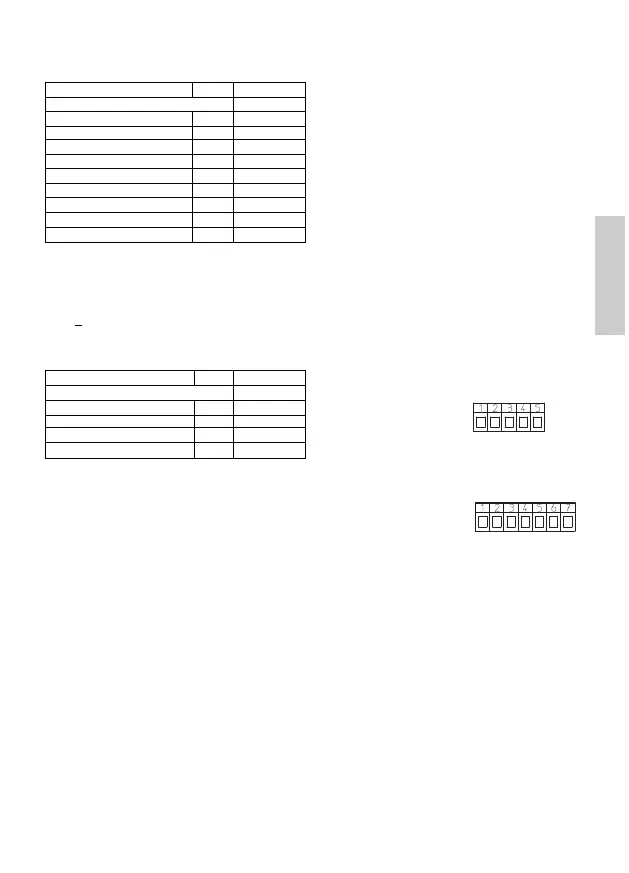

6. Terminal assignment
without optocoupler
1 10 ... 30 V DC
2 0 V GND
3 INP A
4 INP B (Codix 522: n.c.)
5 SET/RESET (Codix 522: n.c.)
with optocoupler
1 10 ... 30 V DC
2 0 V GND
3 INP A
4 INP B (Codix 522: n.c.)
5 SET/RESET (Codix 522, n.c.)
6 Emitter
7 Collector
7. Delivery includes:
1 Digital display
1Panel mounting clip
1 Bezel for screw mounting,
panel cut out 50 x 25 mm
1 Bezel for clip mounting,
panel cut out 50 x 25 mm
1 Seal
1 Multilingual operating instructions
