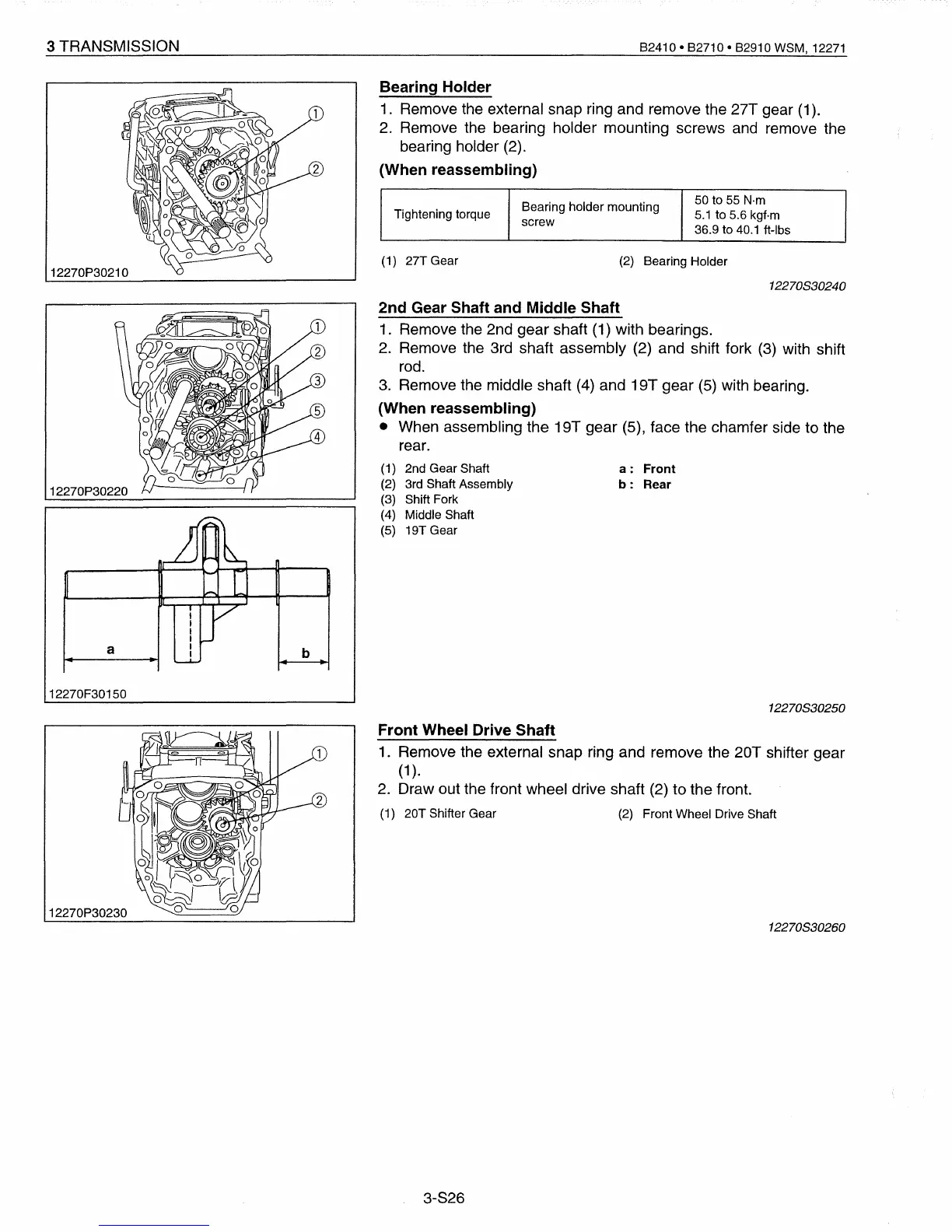

3 TRANSMISSION
B2410· B2710·
B2910 WSM,
12271
Bearing holder mounting
50
to
55
N·m
Tightening torque
5.1
to 5.6 kgf·m
screw
36.9 to
40.1
ft-Ibs
Bearing Holder
1. Remove the external snap ring and remove the 27T gear (1).
2.
Remove the bearing holder mounting screws and remove the
bearing holder (2).
(When reassembling)
12270P30210
(1) 27T Gear
(2)
Bearing Holder
12270830240
2nd Gear Shaft and Middle Shaft
1. Remove the 2nd gear shaft (1) with bearings.
2.
Remove the 3rd shaft assembly (2) and shift fork
(3)
with shift
rod.
3.
Remove the middle shaft (4) and 19T gear (5) with bearing.
(When reassembling)
• When assembling the 19T gear (5), face the chamfer side to the
rear.
(1
)
2nd Gear Shaft
a:
Front
(2) 3rd Shaft Assembly
b:
Rear
12270P30220
(3) Shift Fork
(4) Middle Shaft
(5) 19T Gear
12270F30150
12270830250
12270P30230
Front Wheel Drive Shaft
1.
Remove the external snap ring and remove the 20T shifter gear
(1
).
2.
Draw out the front wheel drive shaft (2) to the front.
(1) 20T Shifter Gear
(2)
Front Wheel Drive Shaft
12270830260
3-S26
To Next Page
