82410 • 82710 • 82910 WSM, 12271

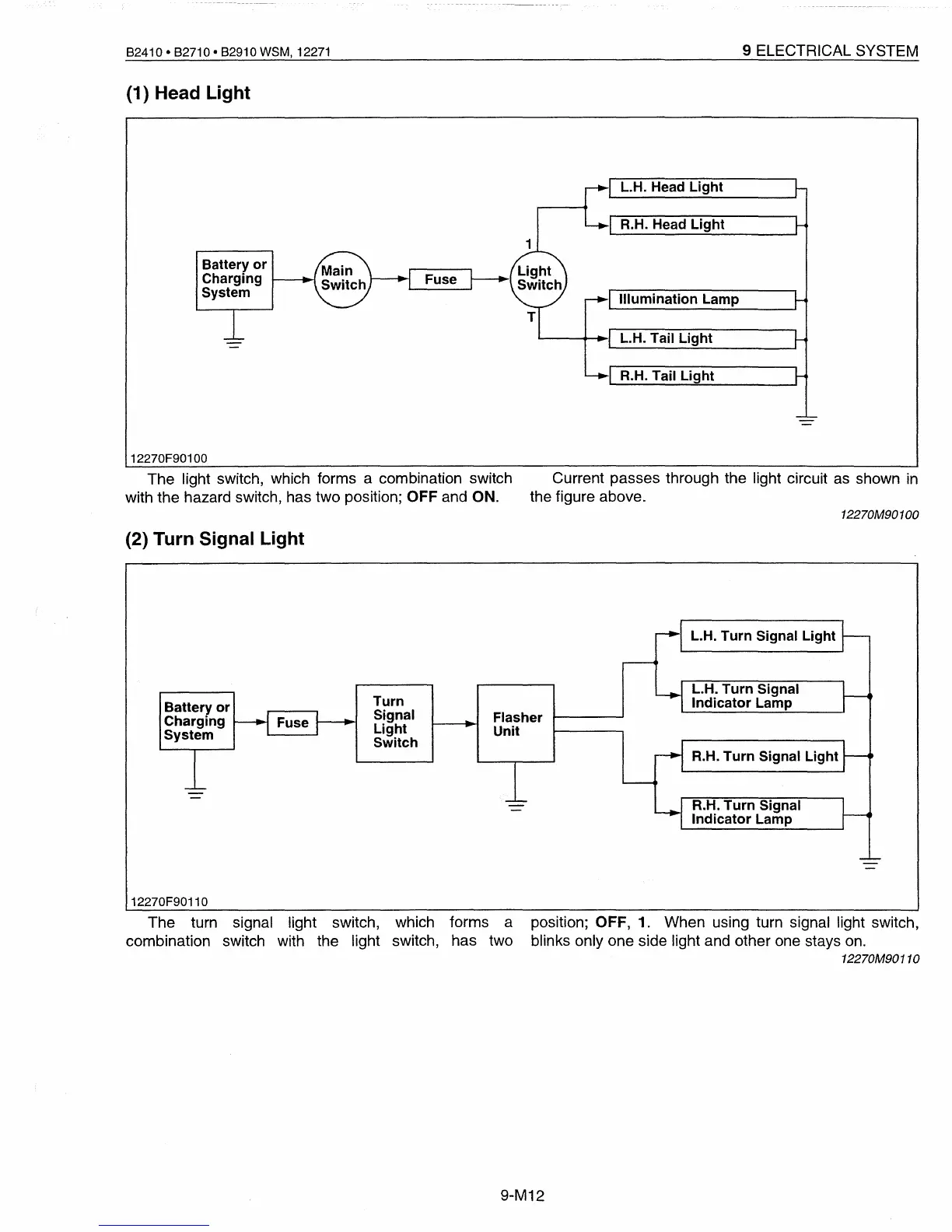

(1) Head Light
Battery or
Charging
System
12270F90100
The light switch, which forms a combination switch
with the hazard switch, has two position;
OFF and ON.
(2) Turn Signal Light
9 ELECTRICAL SYSTEM
L.H. Head Light
RH. Head Light
1
Illumination Lamp
L.H. Tail Light
RH. Tail Light
Current passes through the light circuit as shown in
the figure above.
12270M901 00
Battery or
Charging
System
12270F90110
Turn
Signal
Light
Switch
Flasher
Unit
L.H. Turn Signal Light
L.H. Turn Signal
Indicator Lamp
RH. Turn Signal Light
RH. Turn Signal
Indicator Lamp
The turn signal light switch, which forms a position; OFF, 1. When using turn signal light switch,
combination switch with the light switch, has two blinks only one side light and other one stays on.
12270M90110
9-M12
